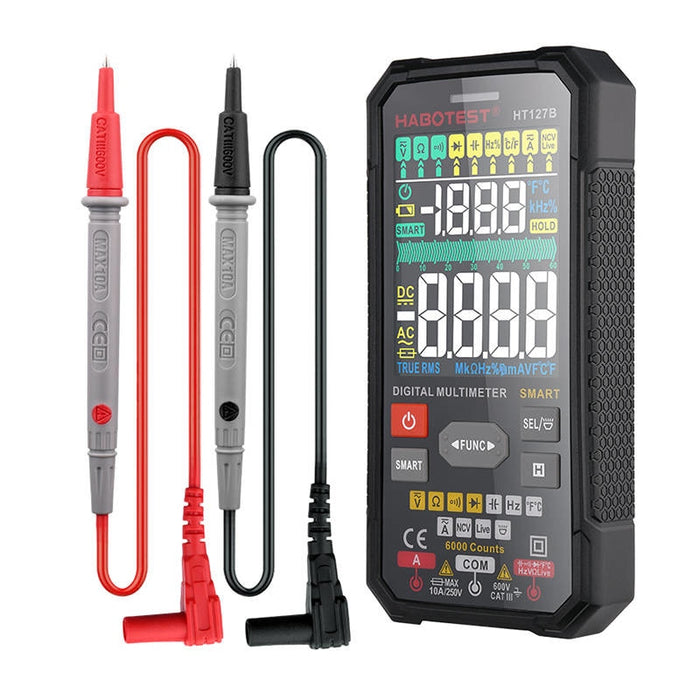

Universal digital multimeter Habotest HT127B
The Habotest HT127B digital multimeter is a multi-functional device that will come in handy when working with electricity. The product allows you to measure voltage, resistance, capacitance and many other parameters. The multimeter has an easy-to-read display that allows you to conveniently read the measurement results, and is also equipped with a flashlight and practical buttons.
Numerous useful functions
The Habotest HT127B universal digital multimeter is a convenient device that surprises with its enormous capabilities. It allows you to measure with high precision AC and DC voltage and current, resistance, temperature or capacitance, etc. In addition, it offers Live Test function, enables diode testing, non-contact voltage detection (NCV) and much more. It is important to note that the multimeter has practical buttons with which you can efficiently select a function.
Well designed
Due to its small dimensions (71.5 x 26 x 145 mm), the device fits well in the hand and provides high comfort. Powered by four AAA batteries that you can easily remove and replace. The case made of soft material is pleasant to the touch, it also provides effective insulation and is resistant to falling.
Included in the kit
- Digital multimeter
- Test leads
- User manual
Specification:
| Manufacturer |
Habotest |
| Model |
HT127B |
| DC voltage measurement range |
600mV/6V/60V/600V |
| AK voltage measurement range |
6V/60V/600V |
| DC current measurement section |
600mA/ 10A |
| AC current measurement section |
600mA/ 10A |
| Resistance measurement range |
600ꭥ/6kꭥ/60kꭥ/600kꭥ/6Mꭥ/60Mꭥ |
| Capacitance measurement range |
6nF/60nF/600nF/6µF/60µF/600µF/6mF |
| Frequency measurement section |
60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz |
| Section for measuring the fill factor |
1.0~99.0% |
| Temperature (°C/°F) |
-40°C ~ 1000°C / -40°F ~ 1832°F |
| Diode testing |
Yes, 0~3V |
| NCV |
Yes, sound and light signaling |
| Real time test |
Yes, sound and light alarm |
| Continuity |
<50ꭥ |
| Number of items |
6000 |
| Display |
VA |
| Data storage |
Yes |
| True RMS |
Yes |
| Blown fuse indication function |
So |
| Low battery indicator |
So |
| Automatic power off |
So |
| Jack indicator input port |
Yes |
| Back panel lighting |
Yes |
| Flash drive |
Yes |
| Power supply |
4x 1.Battery AAA 5V |
| Safety |
EN61010-1, CAT III 600V |
| Dimensions |
145 x 71.5 x 26 mm |
