| Marketing Description |

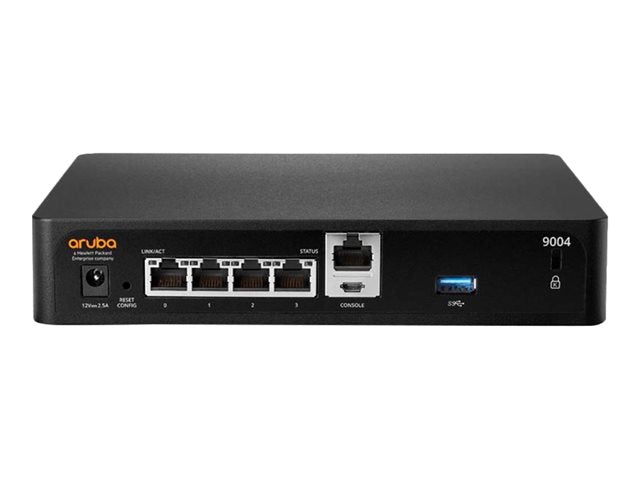

| The Aruba 9004 series gateways are ideally suited for small to medium-size branch deployments and serve as network appliances for SD-WAN and security. Multiple gateways can be grouped as a cluster in each branch for high availability and resiliency. |
| Product Features |
-
Simple SD-WAN management with great scalability
Deploy SD-WAN using a simple mobile app and provide better performance of typical SD-WAN appliances.
-
Dynamic segmentation for network traffic enforcement
Supports simple to use mobile and IoT device policy enforcement for wired and wireless.
|
| General |
| Device Type |
Gateway |
| Width |
19.85 cm |
| Depth |
15.31 cm |
| Height |
3.82 cm |
| Weight |
1.143 kg |
| Networking |
| Form Factor |
External |
| Ports Qty |
4 |
| Connectivity Technology |
Wireless, wired |
| Data Link Protocol |
Gigabit Ethernet, ZigBee, NFC, Bluetooth 5.0 |
| Cloud-Managed |
Yes |
| Performance |
Firewall throughput: 2 Gbps
Bridged throughput: 4 Gbps |
| Capacity |
Number of supported devices: 2048
Active firewall sessions: 32426 |
| Status Indicators |
Status, WAN, LAN |
| Features |
Firewall protection, Deep Packet Inspection (DPI), Quality of Service (QoS), fanless, gateway mode, SD-WAN support |
| Internet of Things (IoT) |
| Internet of Things (IoT) Compatible |
Yes |
| Communications Technology |
Bluetooth, NFC, Zigbee |
| Expansion / Connectivity |
| Interfaces |
4 x Ethernet 1000 - RJ-45
1 x USB 3.0
1 x console - RJ-45/micro-USB |
| Miscellaneous |
| Compliant Standards |
EN 61000-3-2, NOM, EN 61000-3-3, EN55024, ICES-003 Class B, CCC, FCC Part 15, UL 60950-1, ANATEL, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class B, NCC, EN 301 489-1, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 55032 Class B, CNS 13438 Class B, KN32 Class B, EN 60950:2005, CISPR 32 Class B, EN 301 489-17, RED 2014/53/EU |
| Pricing Type |
BTO |
| Power |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Power Consumption Operational |
25 Watt |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - parts and labour - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
10 - 90% (non-condensing) |
