| Marketing Description |

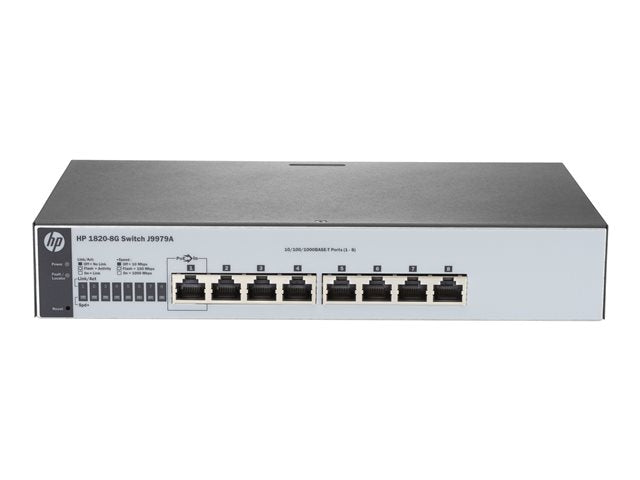

HPE 1820 Switch Series devices are basic, smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches designed for small businesses looking for key features in an easy-to-administer solution.
All 1820 Switches support flexible installation options, including mounting on wall, under table, or on desktop. The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.
These Gigabit switches are plug-and-play out of the box, yet network operation can be fine-tuned through features available from a simple Web browser-based GUI, if necessary. Customizable features include VLANs, Rapid Spanning Tree, IGMP Snooping, link aggregation trunking, and DSCP QoS policies. All models include the latest energy-saving capabilities, including Energy Efficient Ethernet (EEE) and idle-port power down. |
| Product Features |
-
Robust performance
Equipped with a 400 MHz processor and SDRAM technology, this switch is designed to handle demanding network environments, ensuring smooth and efficient data processing.
-
Enhanced security
Features like SSL encryption and DoS attack prevention provide a secure networking environment, protecting against unauthorized access and various types of cyber threats.
-
Versatile connectivity
With 8 RJ-45 1000Base-T ports, this switch supports a wide range of devices, offering flexibility in connecting different types of network hardware.
-
Comprehensive network management
Support for SNMP 1, SNMP 2c, and HTTPS protocols allows for efficient remote management, enabling administrators to monitor and manage the network from anywhere.
-
Optimized for efficiency
Support for features like Quality of Service (QoS), VLAN support, and jumbo frames helps in optimizing network traffic, ensuring efficient data flow and prioritization of critical communications.
|
| General |
| Device Type |
Switch - 8 ports - Managed |
| Enclosure Type |
Desktop, rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
8 x 10/100/1000 |
| Performance |
Throughput (64-byte packet size): up to 11.9 Mpps
Switching capacity: 16 Gbps |
| MAC Address Table Size |
8000 entries |
| Jumbo Frame Support |
9220 bytes |
| Remote Management Protocol |
SNMP 1, SNMP 2c, HTTPS |
| Encryption Algorithm |
SSL |
| Features |
Flow control, full duplex capability, Layer 2 switching, DHCP support, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, port mirroring, SNTP support, QoS, Jumbo Frames support, LLDP support |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP) |
| Processor |
1 x ARM Cortex-A9: 400 MHz |
| RAM |
128 MB SDRAM |
| Flash Memory |
16 MB |
| Expansion / Connectivity |
| Interfaces |
8 x 1000Base-T RJ-45 |
| Power |
| Power Device |
External power adapter |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| Rack Mounting Kit |
Included |
| MTBF |
144.93 years |
| Compliant Standards |
FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, VCCI Class A, CAN/CSA-C22.2 No. 60950-1 |
| Dimensions & Weight |
| Width |
25.4 cm |
| Depth |
15.95 cm |
| Height |
4.39 cm |
| Weight |
820 g |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - advance parts replacement - lifetime - response time: next business day |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
15 - 95% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
15 - 95% (non-condensing) |
