| Marketing Description |

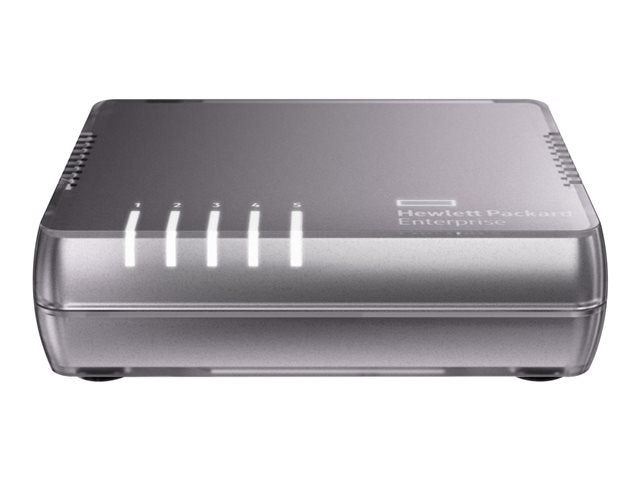

| The HPE OfficeConnect 1405 Switch Series consists of Plug-and-Play unmanaged switches designed for small offices, in both Gigabit Ethernet and Fast Ethernet configurations. The 1405 Small Office switches are preconfigured for fast, easy installation, with connections using low-cost Ethernet copper cabling. They support administration-friendly features such as auto-negotiation and automatic cable type detection (MDI/MDIX). The models have energy-saving features such as Energy Efficient Ethernet (EEE) and idle-port power down. All models are fanless for quiet and "green" operation, and are designed for high reliability, long life, low power consumption, and low total cost of ownership. |
| Product Features |
-
Traffic prioritization
Allows real-time traffic classification mapped to multiple hardware queues.
-
Class of Service (CoS)
Prioritizes traffic by honoring Differentiated Services Code Point (DSCP).
-
Auto-MDIX
Automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports.
-
Flow control
Helps ensure reliable communications during full-duplex operation.
-
Comprehensive LED display with per-port indicators
Provides an at-a-glance view of status, activity, speed, and full-duplex operation.
-
Fanless design
Enables quiet operation for deployment in open spaces.
|
| General |
| Device Type |
Switch - 5 ports - unmanaged |
| Enclosure Type |
Desktop |
| Subtype |
Gigabit Ethernet |
| Ports |
5 x 10/100/1000 |
| Performance |
Switching capacity: 10 Gbps
Throughput: 7.4 Mpps
Latency (100 Mbps): 3 µs
Latency (1000Base-T): 2.6 µs |
| MAC Address Table Size |
2048 entries |
| Jumbo Frame Support |
9216 bytes |
| Features |
Flow control, full duplex capability, Layer 2 switching, auto-uplink (auto MDI/MDI-X), half duplex mode, Quality of Service (QoS), fanless, Energy Efficient Ethernet, 1MB packet buffer, Class of Service (CoS), DiffServ Code Point (DSCP) support |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
| Expansion / Connectivity |
| Interfaces |
5 x 1000Base-T RJ-45 |
| Power |
| Power Device |
Internal power supply |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Power Consumption Operational |
3 Watt |
| Miscellaneous |
| Compliant Standards |
Plug and Play, UL 60950, EN55022 Class B, ICES-003 Class B, RoHS, IEC 60950-1, EN 60950-1, WEEE, CAN/CSA C22.2 No. 60950-1-03, AS/NZS CISPR 22 Class B, FCC Part 15 Class B |
| Dimensions & Weight |
| Width |
11.43 cm |
| Depth |
9.14 cm |
| Height |
3.56 cm |
| Weight |
180 g |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
15 - 95% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
15 - 95% (non-condensing) |
