| Marketing Description |

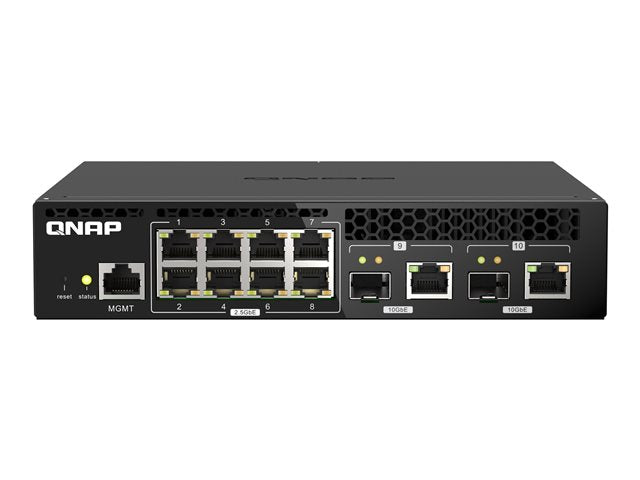

| The QSW-M2108R-2C is a Layer 2 Web Managed Switch with two 10GbE SFP+/RJ45 combo ports and eight 2.5 Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M2108R-2C offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution. With a half-width design, two QSW-M2108R-2C can be installed in a 1U rack space for space-saving. The QSW-M2108R-2C is compatible with 10GbE and NBASE-T technologies, supporting up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds when using existing Cat 5e and 6a cables. |
| Product Features |
-
Half-width design, 2 models in 1U
With a half-width rackmount design, two QSW-M2108R-2C can be installed in a 1U rack space for efficient physical space utilization and tidy cabling.
-
Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-M2108R-2C provides two 10GbE SFP+/RJ45 combo ports and eight 2.5 Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T devices through RJ45 Category 6 (or better) cabling. The switching capacity of the QSW-M2108-2C is 80Gbps, guaranteeing the full potential of each port.
-
Flexible deployment combo ports and 10GbE / NBASE-T
The QSW-M2108R-2C is compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) using existing Cat 5e and Cat 6a cables. The SFP+/RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable type and lengths, different speeds can be achieved for faster, more efficient data transfer.
|
| General |
| Device Type |
Switch - 10 ports - Managed |
| Enclosure Type |
Desktop, rack-mountable 1U |
| Subtype |
2.5 Gigabit Ethernet |
| Ports |
8 x 2.5GBase-T + 2 x combo 10 Gigabit SFP+/RJ-45 |
| Performance |
Switching capacity: 80 Gbps
Non-blocking switching throughput: 40 Gbps |
| MAC Address Table Size |
16K entries |
| Jumbo Frame Support |
9KB |
| Remote Management Protocol |
HTTP, RSTP |
| Features |
LACP support, VLAN support, ACL support, LLDP support, RSTP support, Energy Efficient Ethernet, flow control, full duplex mode, QSS, NAS support, 1 fan, CoS, LACP, VLAN Tagging, reset button, web-based management |
| Compliant Standards |
IEEE 802.3az, IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3z |
| Status Indicators |
Power, port transmission speed, link/activity, status |
| Expansion / Connectivity |
| Interfaces |
2 x 10Gbit LAN SFP+
8 x 2.5Gbit LAN RJ-45
2 x 10Gbit LAN RJ-45 |
| Power |
| Power Device |
Internal power supply |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Power Consumption Operational |
60 Watt |
| Miscellaneous |
| Included Accessories |
Power cord |
| Rack Mounting Kit |
Included |
| Compliant Standards |
FCC, VCCI, BSMI, Class A |
| Dimensions & Weight |
| Width |
20.7 cm |
| Depth |
19.95 cm |
| Height |
4.33 cm |
| Weight |
1.2 kg |
| Dimensions & Weight (Shipping) |
| Shipping Weight |
1.92 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 2 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
