Marketing Description |

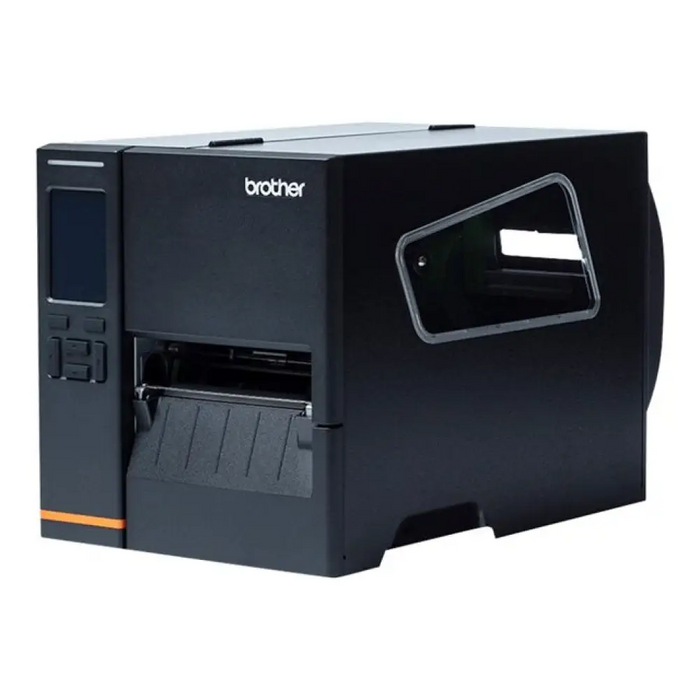

The Brother Titan Industrial Printer TJ-4021TN is a compact barcode label printer that produces 203 dpi labels at up to 10ips. Push the boundaries of what you can accomplish with refreshingly easy integration designed to drop-in and a complete set of connectivity choices. |
Product Features |
-
Outstanding features help improve versatility
The color HVGA touch panel display is easy to use. Standard Ethernet LAN, USB, and RS232 serial interfaces. And a compact footprint fits seamlessly in crowded work spaces.
-
Designed for heavy duty use and easy to maintain
Metal construction, a die-cast printing mechanism, and rigid metal base plate help ensure reliable printing under heavy use. Easy for a qualified technician to install accessories and perform maintenance and repairs.
|
General |
Printer Type |
Label printer - direct thermal / thermal transfer - monochrome |
Printer |
Print Speed |
Up to 254 mm/sec - max speed |
Built-in Devices |
Touch screen |
Preview Screen Size |
3.5" |
Connectivity Technology |
Wired |
Interface |
LAN, serial, USB host, USB 2.0 |
Max Resolution (B&W) |
203 dpi |
Language Simulation |
DPL, EPL2, ZPL II |
Features |
Label detection sensor |
Barcodes |
Code 128, EAN-128, Interleaved 2 of 5, Industrial 2 of 5, Code 39, EAN-13, EAN-8, Code 93, UPC-A, UPC-E, Postnet, MSI, Plessey, China Post, ITF-14, EAN-14, Code 11, Telepen, PLANET, Code 49, LOGMARS, CODABLOCK, GS1 DataBar, MaxiCode, Aztec code, PDF417, QR code, MicroPDF417, TLC39 |
RAM |
RAM Installed (Max) |
128 MB |
Flash Memory |
Flash Memory |
128 MB |
Media Handling |
Media Type |
Continuous labels |
Max Media Size |
Roll (12 cm) |
Min Media Size (Custom) |
20 mm |
Max Media Size (Custom) |
120 mm |
Media Sizes |
Roll (4cm), Roll (11 cm), Roll (2 cm), Roll (12 cm) |
Max Printing Width |
107 mm |
Max Printing Length |
25400 mm |
Roll Maximum Outer Diameter |
203 mm |
Roll Core Diameter |
76.2 mm, 25.4 mm |
Networking |
Networking |
Print server |
Expansion / Connectivity |
Connections |
1 x RS-232 - 9 pin D-Sub (DB-9) 1 x USB 2.0 1 x LAN - RJ-45 1 x USB host |
Miscellaneous |
Included Accessories |
1" ribbon paper core |
Cables Included |
1 x USB cable |
Software / System Requirements |
Software Included |
Software Development Kit (SDK) |
OS Required |
Linux, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Windows 8, Windows 8.1, Apple iOS 9 or later, Android 5.0 or later, Apple macOS 10.12.x, Apple macOS 10.13.x, Apple macOS 10.14.x, Apple macOS 10.15.x, CentOS 7.2, Linux Fedora 24, Red Hat Enterprise Linux 7.3, SuSE Linux Enterprise Server 12, Ubuntu 11.04 - 16.04 |
Manufacturer Warranty |
Service & Support |
Limited warranty - 3 years - pick-up and return |
Environmental Parameters |
Min Operating Temperature |
0 °C |
Max Operating Temperature |
40 °C |
Humidity Range Operating |
25 - 85% (non-condensing) |
Dimensions & Weight |
Width |
24.8 cm |
Depth |
43.6 cm |
Height |
27.4 cm |
Weight |
9.4 kg |
