| Marketing Description |
Advanced persistent security threats, exponential growth of Internet of Things (IoT) devices, mobility everywhere and cloud adoption require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating business service rollout.
The Cisco Digital Network Architecture (DNA) with Software Defined Access (SD-Access) is the network fabric that powers business. Cisco DNA is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities. |
| Product Features |
-
Robust design

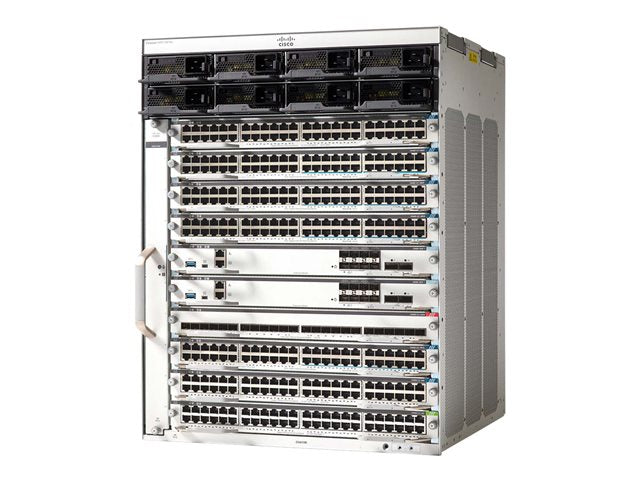

The Cisco Catalyst 9400 Series chassis is engineered to operate efficiently in a wide range of environmental conditions, with an operating humidity range of 10 - 95% (non-condensing) and temperature ranges from -5°C to 45°C for operating, and -40°C to 70°C for storage, ensuring reliability in diverse operational settings.
-
Flexible expansion
Equipped with 2 line-card slots and 2 supervisor slots that are free for expansion, the chassis offers flexibility in configuration for various networking needs, allowing for tailored optimization of network performance and resources.
-
Comprehensive compliance
Meeting a broad spectrum of compliance standards including AS/NZS 60950-1, EN 55032 Class A, and RoHS 5/6, among others, the Cisco Catalyst 9400 Series chassis ensures adherence to international safety and environmental regulations, making it suitable for global deployment in sensitive operational environments.
|
| General |
| Device Type |
Switch |
| Enclosure Type |
Side to side airflow rack-mountable 13U |
| Power Over Ethernet (PoE) |
PoE |
| Features |
Fan tray |
| Compliant Standards |
IEEE 802.3 |
| Expansion / Connectivity |
| Expansion Slots |
8 (total) / 8 (free) x line-card slot
2 (total) / 2 (free) x supervisor slot |
| Installed Modules Qty (Max) |
0 (installed) / 10 (max) |
| Power |
| Power Device |
Internal power supply (not installed) - hot-plug |
| Max Supported Qty |
8 |
| Power Redundancy |
Optional |
| Power Redundancy Scheme |
N+N (with optional power supply) |
| Voltage Required |
AC 120/230 V |
| Features |
PoE powered |
| Miscellaneous |
| MTBF |
627,000 hours |
| Compliant Standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, RoHS, EN 50121-4, EN 300 386 V1.6.1, EN 55022 Class A, CNS 13438 Class A, EN 300 386, ETS 300 019-2-1 Class 1.2, ETS 300 019-2-2 Class 2.3, ETS 300 019-2-3 Class 3.2, KN35, KN32 Class A, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317 |
| Dimensions & Weight |
| Width |
43.97 cm |
| Depth |
31.7 cm |
| Height |
57.43 cm |
| Weight |
29.48 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - lifetime - response time: next business day |
| Environmental Parameters |
| Min Operating Temperature |
-5 °C |
| Max Operating Temperature |
45 °C |
| Humidity Range Operating |
10 - 95% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
10 - 95% (non-condensing) |
