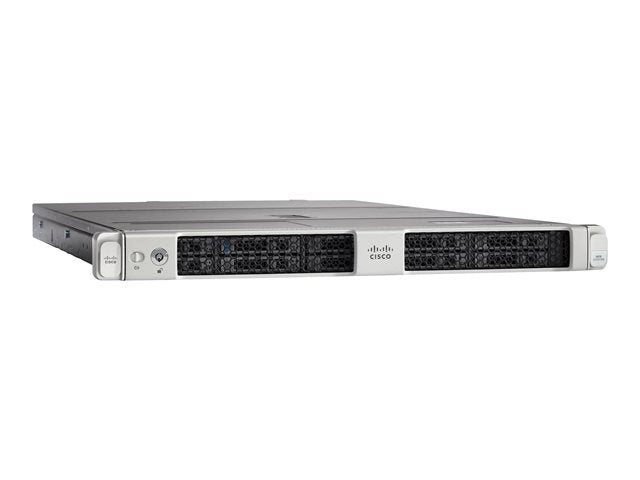

CISCO UCS C220 M6 Rack w/o CPU mem drives 1U wSFF HDD backplane

CISCO UCS C220 M6 Rack w/o CPU mem drives 1U wSFF HDD backplane

CISCO
SKU KXG0141153

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

CISCO UCS C220 M6 Rack w/o CPU mem drives 1U wSFF HDD backplane

Manufacturer CISCO
Manufacturer Part No UCSC-C220-M6S

Marketing Description
UCS C-series rack server delivers unified computing in an industry-standard form factor to reduce TCO and increase agility. The server addresses varying workload challenges through a balance of processing, memory, I/O, and internal storage resources.
Product Features
  • Operational intelligence at scale
    The rack server provides excellent performance, capacity, and scalability for enterprise deployments.
  • Integrated infrastructure for big data and analytics
    An advanced reference architecture is designed to deliver out-of-the-box performance while scaling from small to very large as your business needs grow.
  • Supercharges your applications
    With the Cisco UCS rack server, you gain better application performance to improve customer and employee satisfaction.
General
Type Server
Product Form Factor Rack-mountable - 1U
Server Scalability 2-way
Internal Bays Qty 2
Front Accessible Bays Qty 10
Hot-Swap Bays Qty 10
Processor / Chipset
CPU No CPU
Max CPU Qty 2
CPU Upgradability Upgradable
RAM
Installed Size 0 GB
Technology DDR4 SDRAM
Form Factor DIMM 288-pin
Slots 32 (Total) / 32 (empty)
Hard Drive
Type No HDD
Optical Storage
Type No optical drive
Monitor
Monitor Type None.
Graphics Controller
Graphics Processor Matrox G200e
Video Memory 8 MB
Video Interfaces VGA
Networking
Data Link Protocol Gigabit Ethernet
Remote Management Controller Intel Baseboard Management Controller (BMC), Cisco Integrated Management Controller
Compliant Standards OCP 3.0
Expansion / Connectivity
Bays 10 (total) / 10 (free) x hot-swap 2.5" SFF
Slots 3 (total) / 3 (free) x PCIe 4.0
1 (total) / 1 (free) x mLOM
Interfaces 2 x USB 3.0 (2 rear)
1 x VGA - DB-15 (1 rear)
1 x serial - RJ-45 (1 rear)
1 x management (Gigabit Ethernet) - RJ-45 (1 rear)
1 x KVM (1 in front)
Miscellaneous
Included Accessories NVMe backplane
Compliant Standards BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, ACPI 4.0, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, GB4943.1-2001, FCC CFR47 Part 15 A, EN 300 386, KN35, Directive 2014/35/EU, Directive 2014/30/EU, KN32 Class A, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR32:2013 Class A
Power
Device Type Power supply - hot-plug
Power Redundancy Optional
Power Redundancy Scheme 1+1
Max Supported Qty 2
Dimensions & Weight
Width 42.9 cm
Depth 76.2 cm
Height 4.3 cm
Environmental Parameters
Min Operating Temperature 10 °C
Max Operating Temperature 35 °C
Humidity Range Operating 8 - 90% (non-condensing)
