| Marketing Description |

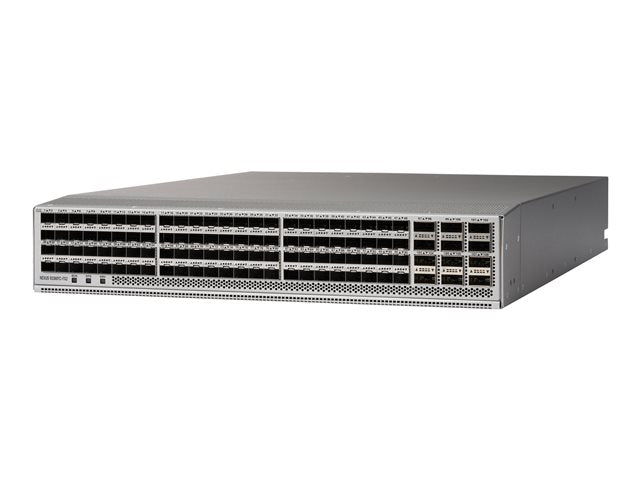

| The Cisco Nexus 93360YC-FX2 Leaf Switch is a 2-Rack-Unit (2RU) Leaf switch that supports 7.2 Tbps of bandwidth and 2.8 bpps across 96 fixed 10/25G SFP+ ports and 12 fixed 40/10G QSFP28 ports. The 96 ports of downlinks support 1/10/25-Gbps. The 12 uplinks ports can be configured as 40- and 100-Gbps ports, offering flexible migration options. The switch is ideal for a non-oversubscribed solution in a compact form factor. The switch has FC-FEC and RS-FEC enabled for 25Gbps support over longer distances. |
| Product Features |
-
Robust capacity
With support for up to 896,000 longest prefix match (LPM) routes and IP host entries, 256,000 MAC addresses, and 32,000 multicast routes, the Cisco Nexus 93360YC-FX2 is designed to handle extensive networks efficiently.
-
Advanced connectivity
Equipped with 96 1/10/25Gbit LAN ports and 12 100Gbit/40Gbit LAN QSFP28 ports, this switch ensures high-speed connectivity and prepares your network infrastructure for evolving data demands.
-
Comprehensive environmental adaptability
Operating effectively within a wide range of temperatures and humidity levels, this device is built to perform reliably in diverse environmental conditions.
-
Enhanced security and management
Features like MACsec support, Access Control List (ACL) support, and Power On Auto Provisioning (POAP) provide robust security measures and simplify management tasks.
-
Layer 3 functionality
Offering advanced Layer 3 switching capabilities along with support for multiple routing protocols, the Cisco Nexus 93360YC-FX2 facilitates efficient network traffic management and routing.
|
| General |
| Device Type |
Switch - 96 ports - L3 - Managed |
| Enclosure Type |
Rack-mountable 2U |
| Ports |
96 x 1/10/25 Gigabit SFP+ + 12 x 40/100 Gigabit QSFP28 |
| Capacity |
Longest prefix match (LPM) routes: 896000
IP host entries: 896000
MAC addresses: 256000
Multicast routes: 32000
ACL entries (ingress): 5000
ACL entries (egress): 2000
VLANs supported: 3967
ECMP paths: 64
Port channels: 512
SPAN sessions: 4
Rapid Per-VLAN Spanning Tree Plus instances: 3967
HSRP groups: 490
NAT entries: 1023
MST instances: 64 |
| Routing Protocol |
OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, Multiprotocol BGP, MSDP, ECMP, MPLS, RSVP |
| Features |
Layer 3 switching, MPLS support, STP support, MSTP support, ACL support, MSDP, vPC technology, MACsec support, 3 fans, VXLAN, OSPF, SSM, EVPN, 40MB system buffer, POAP, PSE |
| Compliant Standards |
IEEE 802.1ae |
| RAM |
16 GB |
| Built-in Devices |
128 GB SSD |
| Status Indicators |
Status |
| Expansion / Connectivity |
| Interfaces |
96 x 1/10/25Gbit LAN SFP+
12 x 100Gbit/40Gbit LAN QSFP28
1 x management RJ-45
1 x management SFP+
1 x USB
1 x serial (RS-232) |
| Power |
| Power Device |
Internal power supply - hot-plug |
| Max Supported Qty |
2 |
| Power Redundancy |
Optional |
| Miscellaneous |
| Compliant Standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN 55022 Class A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, KN 61000-4 |
| Dimensions & Weight |
| Width |
44.23 cm |
| Depth |
58.29 cm |
| Height |
8.59 cm |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
