| Marketing Description |

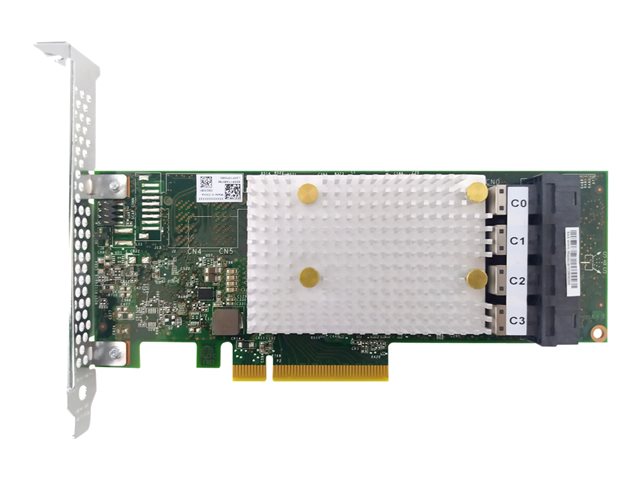

| The Lenovo ThinkSystem 4350-16i SAS/SATA 12Gb HBA is high-performance host bus adapter manufactured by Lenovo for internal storage connectivity in ThinkSystem servers. It integrates the SAS technology and offers 16 lanes of 12 Gbps SAS. |
| Product Features |
- PCIe 3.0 x8 host interface
- 12 Gbps SAS/SATA host bus adapter, based on the Adaptec HBA 1100-16i
- PCI low profile, half-length form factor
- 16 internal 12 Gbps SAS/SATA ports
- Optimized for SSD performance
- High performance architecture with a queue depth of up to 1014
- Advanced power management support
- Supports 512e, 512n and 4K sector formatted drives
- TLR
- SATA Native Command Queuing (NCQ)
- S.M.A.R.T. support.
|
| General |
| Device Type |
Storage controller - plug-in card - low profile |
| Host Bus |
PCIe 3.0 x8 |
| Storage Controller |
| Interface |
SATA 6Gb/s / SAS 12Gb/s |
| Data Transfer Rate |
12 Gbit/s |
| Supported Devices |
Hard drive, solid state drive |
| Channel Qty |
16 |
| Max Storage Devices Qty |
16 |
| RAID Level |
JBOD |
| Processor |
Adaptec SmartIOC 2100 PM8238 |
| Expansion / Connectivity |
| Interfaces |
4 x SATA 6Gb/s / SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal) |
| Miscellaneous |
| Features |
Native Command Queuing (NCQ), S.M.A.R.T. support, JBOD support |
| Compliant Standards |
FCC Part 15 A, AS/NZS 3548, ICES-003 Class B, EN55022, EN55024, VCCI, KCC, RoHS, IEC/EN/UL 60950, FCC CFR47 Part 15 B Class B |
| Software / System Requirements |
| OS Required |
Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 15 SP2, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi) Update 2 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 1 year |
| Dimensions & Weight |
| Depth |
16.7 cm |
| Height |
6.4 cm |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
55 °C |
| Humidity Range Operating |
10 - 90% (non-condensing) |
| Compatibility Information |
| Designed For |
Lenovo ThinkSystem SR630 V2 7Z70, 7Z71
Lenovo ThinkSystem SR650 V2 7D15, 7Z72, 7Z73 |
