| Marketing Description |

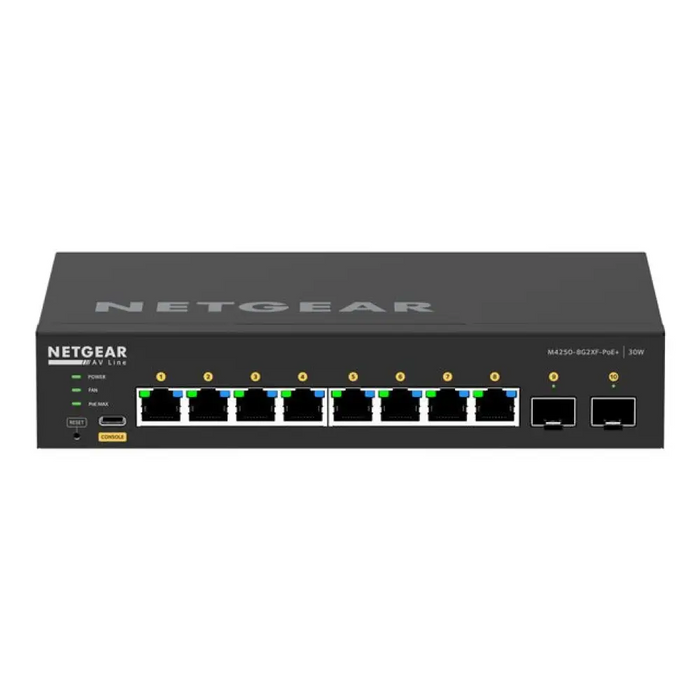

| The NETGEAR AV Line M4250-8G2XF-PoE+ switch is designed to meet the demands of modern businesses, offering advanced features and robust performance. With its Layer 3 switching capability, it provides efficient routing and management of network traffic, ensuring smooth operation even in high-demand environments. The switch features 10 Gigabit Ethernet connectivity, enabling high-speed data transfers and connectivity for bandwidth-intensive applications. Its side to side airflow design ensures reliable performance by maintaining optimal operating temperatures. The device is rack-mountable, allowing for easy integration into existing network infrastructures. Compliance with a wide range of standards, including IEEE 802.3af/at for Power over Ethernet Plus (PoE+), ensures compatibility with a variety of network devices, making this switch a versatile addition to any network. |
| Product Features |
-
Robust security
Equipped with SSL 3.0 and TLS 1.2 encryption algorithms, this switch ensures secure network communications, protecting against unauthorized access and data breaches.
-
High-capacity networking
With a switching capacity of 56 Gbps and support for up to 4093 VLANs, this device is designed to handle heavy network traffic efficiently, making it suitable for growing businesses.
-
Advanced power management
Featuring PoE+ with a total power budget of 220 W across 8 ports, this switch enables the deployment of power-dependent devices such as VoIP phones and wireless access points without the need for additional power sources.
-
Comprehensive control
Manageable via CLI, HTTPS, SNMP, and more, this switch offers versatile management options for detailed control over your network, ensuring optimal performance and security.
-
Enhanced performance features
Supports jumbo frames up to 12 KB, facilitating efficient large data packet transmission, which is crucial for high-performance computing environments.
|
| General |
| Device Type |
Switch - 10 ports - L3 - Managed |
| Enclosure Type |
Side to side airflow rack-mountable |
| Subtype |
10 Gigabit Ethernet |
| Ports |
8 x 10/100/1000 (8 PoE+) + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) |
PoE+ |
| PoE Budget |
220 W |
| Performance |
Switching capacity: 56 Gbps
Throughput (64-byte packet size): 41.67 Mpps
Latency (1 Gbps): < 2.14 µs
Latency (10 Gbps): < 0.84 µs |
| Capacity |
VLANs supported: 4093
ARP entries: 4000
Multicast entries (IPv4): 512
Multicast entries (IPv6): 128
Jumbo frame size: up to 12000
IGMP multicast groups: 2000
MSTP instances: 16
PVST instances: 32 |
| MAC Address Table Size |
16K entries |
| Jumbo Frame Support |
12KB |
| Routing Protocol |
IGMP, IGMPv2, IGMPv3, MLDv2, static IPv4 routing, static IPv6 routing, RIP, PIM-SM, PIM-DM, PIM-SSM |
| Remote Management Protocol |
HTTPS, CLI, Telnet, SSH, SNMP, RADIUS, TACACS+, RMON 1, RMON 2, RMON 9, RMON 3, SNMP 1, SNMP 2, SNMP 3 |
| Encryption Algorithm |
TLS 1.2, SSL 3.0 |
| Features |
IGMP support, AVB, PoE timer, MIB support, RSPAN, LLDP-MED, policy based routing, PTP, STP support, MTP, RSTP, BPDU, STRG, Root Guard, GVRP, GMRP, LACP support, DHCP snooping, DAI, IP source guard, DHCP relay, LLDP support, AAA, sFlow, PIM, MVRP, LACP, LAG, Private VLAN, VLAN support, DHCP server, QoS, DoS attack prevention, 16MB packet buffer |
| Compliant Standards |
IEEE 802.3at, IEEE 802.3af, IEEE 802.1ak, IEEE 802.1as, IEEE 802.1Qat, IEEE 802.1Qav, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP) |
| Processor |
X ARM A9: 1.25 GHz |
| RAM |
2 GB |
| Flash Memory |
256 MB |
| Expansion / Connectivity |
| Interfaces |
8 x 10/100/1000 Base-T RJ-45 8 ports (PoE+)
2 x 10GBase-X SFP+
1 x management (Gigabit LAN) RJ-45
1 x console RJ-45
1 x USB Type A
1 x console (USB) Type C |
| Power |
| Power Device |
External power adapter |
| Installed Qty |
1 |
| Miscellaneous |
| Included Accessories |
Mounting brackets, foot pad set, 2 x SFP slot caps |
| Cables Included |
USB-C to USB-A cable |
| Rack Mounting Kit |
Included |
| Compliant Standards |
FCC CFR47 Part 15 B Class A, ANSI C63.4:2014, ISED, ICES-003:2016 issue 7 Class A, EN 55032:2015 Class A, EN 61000-3-2:2014 Class A, EN 61000-3-3:2013, EN 55024:2010, EN 55035:2017, AS/NZS CISPR32:2015 Class A, CCC, GB/T9254-2008 Class A, VCCI-CISPR 32:2016 Class A, KC, KN32 Class A, KN35 Class A, EAC, IEC 62311, GOST 30804.3.2-2013, GOST 30804.3.3-2013, GOST 30805.22-2013, GOST CISPR 24-2013, BSMI, CNS 13438 Class A, IEC 62368-1 Second Edition, IEC 60950-1 Second Edition, CB, CSA, RCM |
| Localisation |
Europe |
| Dimensions & Weight |
| Width |
21 cm |
| Depth |
14 cm |
| Height |
4 cm |
| Weight |
967 g |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - lifetime |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
45 °C |
| Humidity Range Operating |
90% (non-condensing) |
| Min Storage Temperature |
-20 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
95% (non-condensing) |
