| Marketing description |

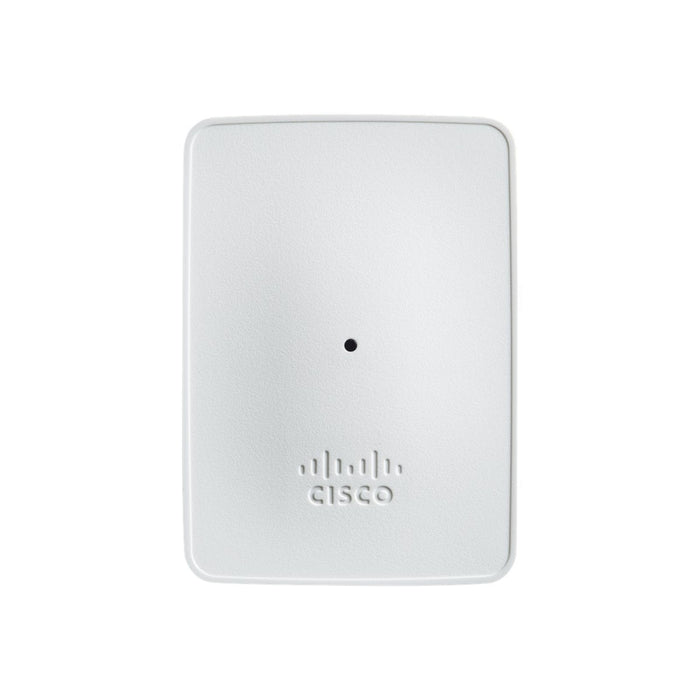

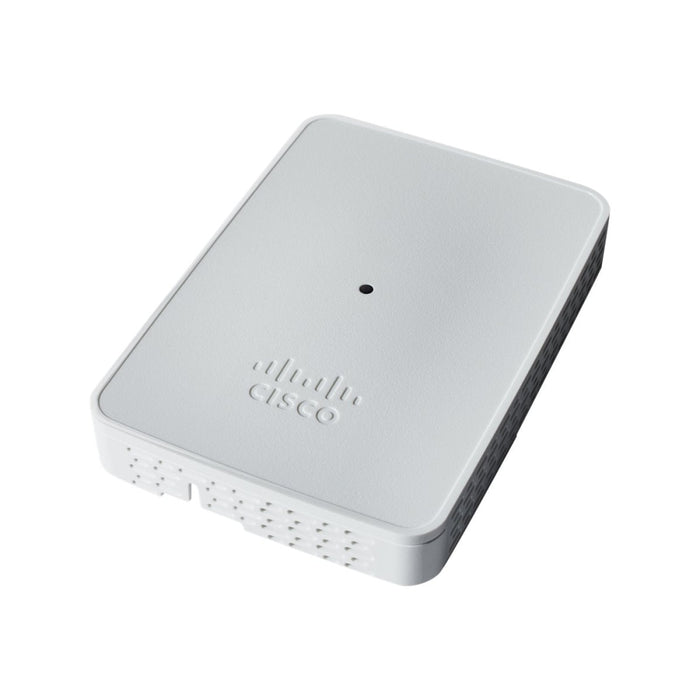

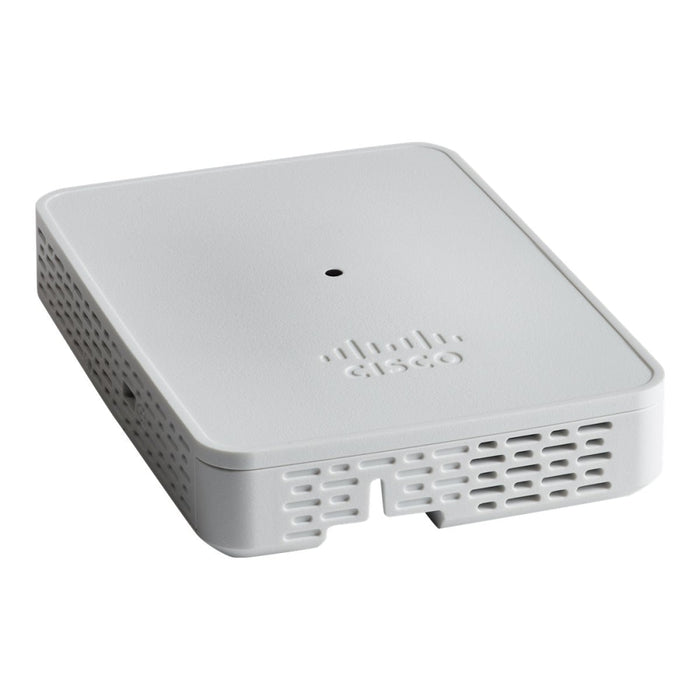

The Cisco Business 143ACM Network Extender works seamlessly with Cisco Business Wireless access points to provide extended Wi-Fi coverage and capacity without sacrificing performance.
This ultra-compact 2x2 network extender can be easily mounted on a wall. |
| Product features |
-
POSSIBLE
Cisco Business Mesh Extenders only work with Cisco Business Wireless 100 and 200 Series Access Points (CBW140AC-B, CBW240AC-B, and CBW145AC-B)
-
FLEXIBILITY
Mix and match Cisco Business Wireless access points and these MU-MIMO (2x2) network extenders to increase your Wi-Fi coverage
-
Setup in minutes
Scan the QR code with the Cisco Business Mobile app and turn on the device. No additional steps are required
-
PROCESSING
Simple wall mounting powered by AC adapter (included)
-
PEACE OF MIND
One-year technical support and limited lifetime warranty
|
| Total |
| Device type |
Wi-Fi range extender |
| Width |
8.25 cm |
| Depth |
11.4 cm |
| Height |
1.9 cm |
| Weight |
280 g |
| Localization |
Europe |
| Processor / Memory / Storage |
| Installed processors |
710 MHz |
| RAM |
512 MB |
| Flash Memory |
128MB |
| Network |
| Form factor |
Wall mountable |
| Connection technology |
Wireless |
| Data link protocol |
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Bandwidth |
2.4 GHz, 5 GHz |
| Productivity |
Maximum data transfer rate (2.4 GHz): 144 Mbps
Maximum data transfer rate (5 GHz): 867 Mbps |
| Capacity |
Wireless clients for one Wi-Fi radio: 200
Wireless clients: 400 |
| Status indicators |
Status |
| Functions |
Managed, DFS Support, Mesh Networking, Wi-Fi Multimedia (WMM) Support, RADIUS Support, 802.1x Authentication, Authentication, Authorization and Reporting (AAA), Seamless Roaming, 2x2 MU-MIMO Technology, Security Slot (Compatible with Kensington security lock) |
| Encryption algorithm |
AES, TLS, PEAP, TTLS, WPA2, WPA3 |
| Authentication method |
RADIUS, MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST |
| Appropriate standards |
IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.11r, IEEE 802.11ac Wave 2 |
| Aerial |
| Antenna |
Internally |
| Extension / Connectivity |
| Interfaces |
1 x 1000Base-T - RJ-45 |
| Different |
| Appropriate standards |
VCCI, ICES-003, FCC Part 15.247, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, EN 300 328, EN 50385, FCC OET Bulletin 65c, EN 301 489-1, RSS-247, EN 301 893, CAN/CSA-C22.2 No. 60950-1, EMI Class B, EN 301 489-17 |
| Power supply |
| Tension is required |
DC 5V |
| Energy consumption at work |
8.5 Watts |
| Manufacturer's warranty |
| Service and maintenance |
Limited Warranty - Replacement - Lifetime |
| Environmental parameters |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
50 °C |
| Operating humidity range |
10 - 90% (non-condensing) |
