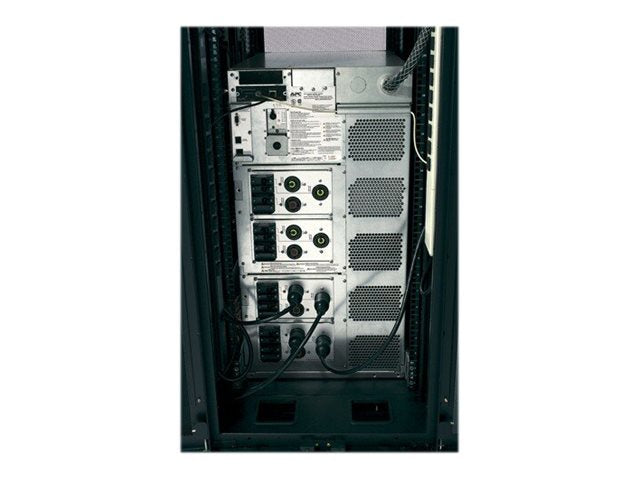

APC Symmetra LX 8kVA-16kVA N + 1 RackMount 220/230/240V UPS

APC Symmetra LX 8kVA-16kVA N + 1 RackMount 220/230/240V UPS

APC
SKU KXG0134009

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

APC Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mount, 220/230/240V or 380/400/415V

Manufacturer APC
Manufacturer Part No SYA8K16RMI

Marketing Description
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease footprint or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
Product Features
  • Double conversion online
General
Device Type Power array - rack-mountable
Height (Rack Units) 19U
Colour Black, silver
Power Device
Supported Battery Technology Lead Acid
Input Voltage AC 220/230/240/380/400/415 V
Input Voltage Range AC 155/276 - 290/480 V
Frequency Provided 47 - 63 Hz
Frequency Required 45 - 65 Hz
Input Connectors 2 x hardwire
Power Output Connectors Details 1 x hardwire
8 x power IEC 60320 C13
10 x power IEC 60320 C19
Output Voltage AC 220/230/240 V ± 5% - 47 - 63 Hz
Power Capacity 8000 VA
Output Waveform Sinewave
Battery
Quantity 2 (installed) / 4 (supported)
Technology Lead Acid
Run Time (Up To) 7.5 min at full load
Networking
Remote Management Interface Ethernet 10/100
Remote Management Protocol SNMP
Expansion / Connectivity
Interfaces 1 x management (Ethernet) - RJ-45
1 x management (RS-232) - 9 pin D-Sub (DB-9)
Expansion Slots 1 (free) x SmartSlot
Miscellaneous
Features Emergency power off, LCD display, audible alarm
Compliant Standards C-Tick, GOST, EN 60950, VDE, IEC 60950, EN55024, EN55022 Class A, EN 50091-2
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 0 - 95%
Dimensions & Weight
Width 47 cm
Depth 69 cm
Height 84 cm
Weight 199 kg
Compatibility Information
Designed For P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF400, AP5602, AP5606, AP5607, AP5616, AR203A, AR204A, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106SP, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR7007, AR7050, AR7057, DLA1500RM2U, NBPD0160A, NBPD0171, NBWL0355A, NBWL0356A, SC250RMI1U, SMC1000-BR, SMC15002U-BR, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMT3000I2U-BR, SMX2000LV, SMX2000LVNC, SMX2000LVNCUS, SMX2000LVUS, SMX2200R2HVNC, SMX3000HV-BR, SMX3000HVT, SMX3000HVTUS, SMX3000LV, SMX3000LV2U-BR, SMX3000LVUS, SRT1000RMXLA, SRT1000RMXLA-NC, SRT1000RMXLI, SRT1500RMXLA, SRT1500RMXLA-NC, SU2200RMXLI, SU3000RMJ3U3W, SU3000RMJ3UOS3, SUA2200R2X180, SUA2200R3XLNETPKG, SUA2200RMXL3U, SUA2200RMXLI3U, SUA3000R2IX38, SUA3000R3XLNETPKG, SUA3000RMXL3U, SUA3000RMXL3U-BR, SUA750R2X122, SURT3000XLI-ET, SURT5000XLIX438, SURT6000RMXLT, SURT6000RMXLT-1TF5, SURT7500XLJ-2TF4, SURT8000RMXLT, SURT8000RMXLT-1TF5, SURTA2000RMXL2U, SURTD3000RMXLT, SURTD3000RMXLT-1TF5, SURTD5000RMXLT, SURTD5000RMXLT-1TF5
