| Marketing Description |

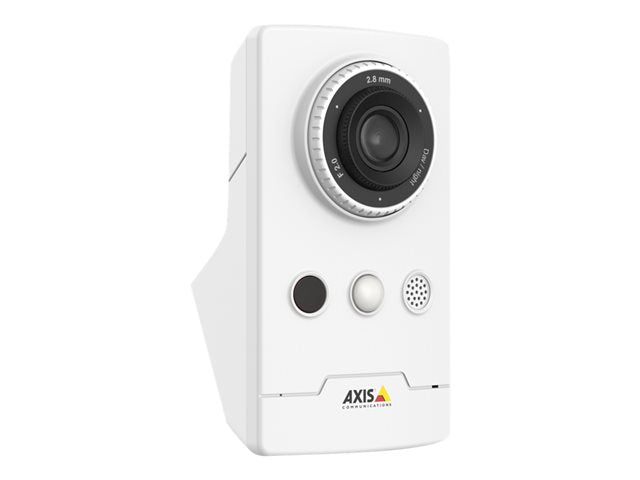

AXIS M1065-LW is made for easy, installation. It comes with a combined corner and wall bracket that lets anyone install it perfectly: Drop the camera in the bracket and it's perfectly positioned to provide 110° coverage of the room. And AXIS M1065-LW is wireless, so there are no unnecessary cords or cables to worry about. Just place the camera in the bracket, plug it in and you're ready to start recording.
With AXIS M1065-LW, you'll always be able to see exactly what's going on at your premises - regardless of time of day or lighting. With HDTV 1080p, it delivers excellent Axis image quality. Wide Dynamic Range (WDR) technology ensures you can see details even when there are dark and light areas in the scene. And IR illumination means you can record useful videos even in the dark.
With this camera, you can detect intruders and warn them off your premises before it's too late. AXIS M1065-LW is equipped with a microphone and a speaker, so you can record a motion-triggered message that will send thieves and vandals packing. And the camera can alert you to the situation and deliver footage to your PC, tablet or smart phone, so you can alert the police fast. |
| Product Features |
-
Just plug it in and press record
AXIS M1065-LW is made for easy, installation. It comes with a combined corner and wall bracket that lets anyone install it perfectly: Drop the camera in the bracket and it's perfectly positioned to provide 110° coverage of the room. And AXIS M1065-LW is wireless, so there are no unnecessary cords or cables to worry about. Just place the camera in the bracket, plug it in and you're ready to start recording.
-
A camera that sees in the dark
With AXIS M1065-LW, you'll always be able to see exactly what's going on at your premises - regardless of time of day or lighting. With HDTV 1080p, it delivers excellent Axis image quality. Wide Dynamic Range (WDR) technology ensures you can see details even when there are dark and light areas in the scene. And IR illumination means you can record useful videos even in the dark.
-
Warn intruders off your premises
With this camera, you can detect intruders and warn them off your premises before it's too late. AXIS M1065-LW is equipped with a microphone and a speaker, so you can record a motion-triggered message that will send thieves and vandals packing. And the camera can alert you to the situation and deliver footage to your PC, tablet or smart phone, so you can alert the police fast.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: built-in speaker, two-way audio capability, built-in microphone |
| Connectivity Technology |
Wired, wireless |
| Width |
6 cm |
| Depth |
3.7 cm |
| Height |
10.6 cm |
| Weight |
128 g |
| Localisation |
Europe |
| Camera |
| Type |
Colour - Day&Night - fixed |
| Digital Video Format |
MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution |
1920 x 1080 |
| Motion Detection |
Yes |
| Video Modes |
1080p |
| Exposure Range |
1/5 sec - 1/32500 sec |
| Minimum Illumination |
0.25 lux - colour - F2.0 - 50 IRE
0.05 lux - B&W - F2.0 - 50 IRE
0 lux - IR |
| Infrared LEDs |
Yes |
| Infrared Distance |
10 m |
| Digital Video Capture Resolution |
320 x 240, 1920 x 1080 |
| Frame Rate (max) |
30 frames per second |
| RAM |
512 MB |
| Flash Memory |
256 MB |
| Features |
Motion sensor, sharpness control, white balance, auto exposure control, colour control, progressive scanning, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), built-in antenna, infrared cut filter, Privacy Mask Function, PIR-based motion detector, NAS-Ready, multi-streaming, digital PTZ function, Text Caption Overlay, password protection, Variable Bitrate (VBR), Constant Bitrate (CBR), Zipstream technology, ONVIF (Profile S) support, image overlay |
| Image Sensor |
| Type |
CMOS 1/3" |
| Lens Construction |
| Type |
M12 mount - fixed focal |
| Focal Length |
2.8 mm |
| Lens Iris |
F/2.0 fixed iris |
| Horizontal Field of View (degree) |
110 |
| Vertical Field of View (degree) |
61 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a |
| Network Protocols |
DHCP, DNS, FTP, HTTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSL, QOS, CIFS |
| Expansion / Connectivity |
| Ports |
LAN - RJ-45
USB (power only) - Micro-USB Type B |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Stand, mounting bracket |
| Compliant Standards |
EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class B, EN 61000-6-1, EMC, FCC Part 15 C, EN 61000-6-2, FCC Part 15 E, VCCI Class B, KN24, EN 300 328, EN 301489-1, EN 301489-17, FCC CFR47 Part 15 B Class B, RSS-247, KN35, EN 55032 Class B, AS/NZS CISPR 32 Class B, EN 301 893, IEC/EN/UL 60950-1, IEC/EN 62471 |
| Colour |
White |
| Power |
| Power Requirements |
DC 4.75 - 5.25 V |
| Power Device |
Power adapter 5 Watt |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Relative Humidity (operating) |
10 - 85% (non-condensing) |
