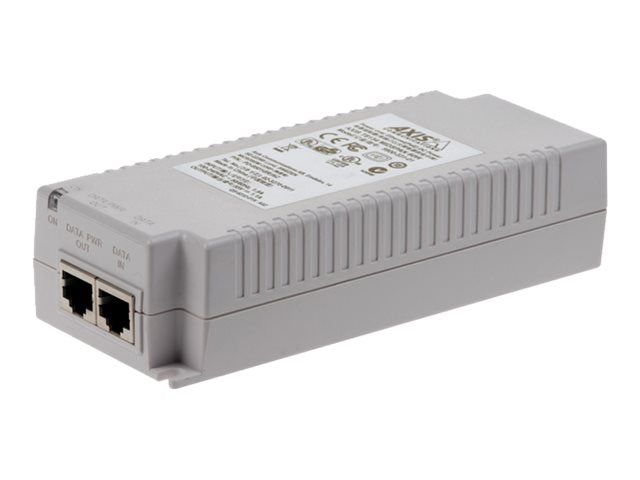

AXIS 5900-332 AXIS T8134 MIDSPAN 60W

AXIS 5900-332 AXIS T8134 MIDSPAN 60W

by Axis
SKU KXG0142910

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

AXIS T8134 60W MIDSPAN

Manufacturer AXIS COMMUNICATIONS
Manufacturer Part No 5900-332

Marketing Description
Axis High Power over Ethernet midspans and splitters offer an easy, fast and cost-effective solution for powering network video products - specifically PTZ (pan/tilt/zoom) and PTZ dome network cameras - without the need to install power outlets and electrical cabling.
Product Features
  • Easier and faster installations
    Axis High Power over Ethernet (High PoE) midspans and splitters enable Axis network video products to receive data and power over the same Ethernet cable. The High PoE products make it easier to install network video products in areas where power cabling and outlets are unavailable. Installation costs are thus reduced.
  • Axis network video compatibility
    The midspans and splitters conform to the IEEE 802.3at for powering devices with high power requirements on a network. The midspans are also IEEE 802.3af compliant, which means that they can be used with all Axis network video products with built-in PoE support. The function of a midspan is to inject power into a network cable. A splitter, which separates data and power coming over an Ethernet cable, is used for a network video product without built-in support for PoE.
  • Outdoor-ready from -40 °C to 65 °C
    The outdoor-ready midspans are IP66- and NEMA 4X-rated, with extended temperature range from -40 °C to 65 °C (-40 °F to 149 °F) at certain output power. AXIS T8123-E and AXIS T8124-E also offer surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges. Thanks to the IP66-rated RJ-45 connectors, the installer does not have to open the outdoor midspan, just connect the mains cable and the network video product. AXIS T8124-E is only compatible with AXIS Q60-E PTZ cameras.
General
Device Type PoE injector - external
Localisation Europe
Power Device
Input Voltage AC 100-240 V
Frequency Required 50 - 60 Hz
Power Output Connectors Details 1 x RJ-45
Output Voltage 55 V
Power Capacity 60 Watt
Expansion / Connectivity
Interfaces 1 x Gigabit LAN - RJ-45
Miscellaneous
Cables Included Power cable
Features LED indicator
Compliant Standards IEEE 802.3af, IEEE 802.3at, EMC, NEMA Type 4X, IP66
Environmental Parameters
Min Operating Temperature -40 °C
Max Operating Temperature 65 °C
Humidity Range Operating 0 - 90% (non-condensing)
Compatibility Information
Designed For AXIS C1410, D3110, P1385-E, P1455-LE, P1455-LE-3 License Plate Verifier Kit, Q6000-E PTZ Dome Network Camera 50Hz, Q6100-E 50 Hz, W400
AXIS Q60 Series Q6078-E 50 Hz, Q6078-E 60 Hz
