| Marketing Description |

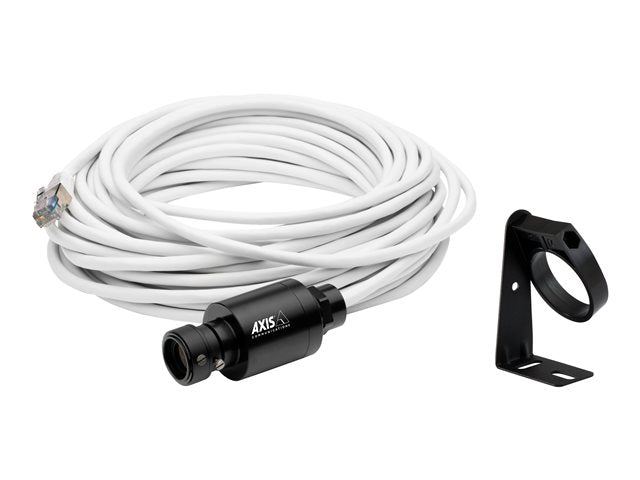

AXIS F1015 Sensor Unit, together with an AXIS F Main Unit, is ideal for use in highly discreet indoor surveillance applications. The sensor unit can be installed in tight places and flush-mounted in a wall or ceiling, while the main unit can be placed further away where there is space.
AXIS F1015 comprises an image sensor and a varifocal lens that provides between a 53° and 108° horizontal field of view in HDTV 1080p. A varifocal lens gives users the flexibility to adjust the field of view to suit the application. In tele mode, finer details can be captured in a narrower field of view. In wide mode, more of a scene can be covered. |
| Product Features |
-
Discreet installation
AXIS F1015 Sensor Unit, together with an AXIS F Main Unit, is ideal for use in highly discreet indoor surveillance applications. The sensor unit can be installed in tight places and flush-mounted in a wall or ceiling, while the main unit can be placed further away where there is space. AXIS F1015 comprises an image sensor and a varifocal lens that provides between a 53° and 108° horizontal field of view in HDTV 1080p. A varifocal lens gives users the flexibility to adjust the field of view to suit the application. In tele mode, finer details can be captured in a narrower field of view. In wide mode, more of a scene can be covered.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: two-way audio capability |
| Connectivity Technology |
Wired |
| Width |
3 cm |
| Depth |
6.9 cm |
| Height |
3 cm |
| Weight |
120 g |
| Camera |
| Type |
Colour - fixed |
| Digital Video Format |
MPEG-4, MJPEG, H.264 |
| Max Digital Video Resolution |
1920 x 1200 |
| Motion Detection |
Yes |
| Minimum Illumination |
0.3 lux - colour - F2.0 |
| Frame Rate (max) |
60 frames per second |
| Features |
Sharpness control, digital image rotation, white balance, colour control, progressive scanning, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), Privacy Mask Function, text stamp, Video Motion Detection Technology, active tampering alarm, ONVIF V2.2 (Profile S) support, password protection, Audio Detection |
| Image Sensor |
| Type |
CMOS 1/2.8" |
| Lens Construction |
| Type |
Vari-focal |
| Optical Zoom |
2 x |
| Focal Length |
3 mm - 6 mm |
| Lens Iris |
F/2.0 fixed iris |
| Horizontal Field of View (degree) |
53 - 108 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS |
| Miscellaneous |
| Included Accessories |
Mounting bracket |
| Cables Included |
1 x network cable - external - 3 m |
| Compliant Standards |
C-Tick, CISPR 22 Class B, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC Part 15 B, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, AS/NZS, EN 50121-4, VCCI Class B, EN 50581, KN24, KCC KN22 Class B |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-30 °C |
| Max Operating Temperature |
55 °C |
| Relative Humidity (operating) |
10 - 85% (non-condensing) |
