| Marketing Description |
| Ideal for tough environments, this outdoor-ready bullet-style camera offers affordable Axis excellence. Lightweight and compact in design, it's easy to install and supports analytics with deep learning. |
| Product Features |
-
Affordable Axis excellence

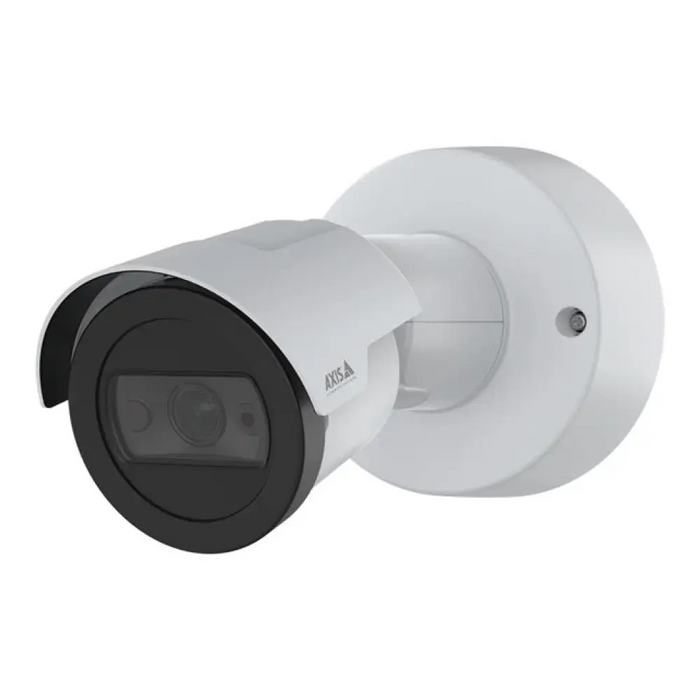

Axis M2036-LE delivers Quad HD 1440p/4 MP and a horizontal field of view of 129°. With a deep learning processing unit (DLPU), you can benefit from applications based on deep learning on the edge. Thanks to Axis object analytics, it offers detection and classification of humans, vehicles, and types of vehicles - all tailored to your specific needs. And Axis edge vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This outdoor-ready bullet-style camera features built-in IR illumination, enabling unobtrusive surveillance in total darkness. Wide Dynamic Range (WDR) ensures clarity even when there's both dark and light areas in the scene.
-
Top performance in tough conditions
Ideal for both hot and cold environments, this IK08-rated bullet camera can withstand temperatures as low as -30°C and as high as 50°C (-22ºF to 122ºF). It includes an integrated sunshield for protection against sun and rain. Additionally, with IP66, IP67, and NEMA 4X ratings, it's resistant to rough weather, dust, sand, salt spray, ice formation, and high-water pressure. And, thanks to edge-to-edge technology it can be connected to Axis speakers, such as an Axis outdoor horn speaker
-
Installation that's as easy as 1,2,3
This small, lightweight bullet-style camera offers cost-efficient installation both indoors and outdoors. A spacious, sealed back box ensures secure cable management and offers installers greater accessibility, freedom of movement, and future serviceability. Delivered with a factory-focused lens, there's no need for hands-on fine-tuning saving you time and effort. This easy-to-handle camera supports Power over Ethernet (PoE) so you can connect directly to your IP network with just one network cable for connectivity and power. Furthermore, Axis M2036-LE offers flexible installation; outdoors or indoors, on walls, ceilings, poles, or in corners.
|
| General |
| Device Type |
Network surveillance camera |
| Form Factor |
Bullet |
| Connectivity Technology |
Wired |
| Width |
10.1 cm |
| Depth |
17 cm |
| Height |
10.1 cm |
| Weight |
491 g |
| Camera |
| Type |
Colour - Day&Night - fixed - outdoor - weatherproof |
| Digital Video Format |
H.264, H.265, MJPEG, MPEG-4, AVC, HEVC, MPEG-H Part 2 |
| Max Digital Video Resolution |
2688 x 1520 |
| Motion Detection |
Yes |
| Video Modes |
1440p |
| Exposure Range |
1/5 sec - 1/38500 sec |
| Minimum Illumination |
0.18 lux - colour - F2.1 - 50 IRE
0.04 lux - B&W - F2.1 - 50 IRE
0 lux - IR |
| Infrared LEDs |
Yes |
| Infrared Distance |
20 m |
| Frame Rate (max) |
30 frames per second |
| RAM |
512 MB |
| Flash Memory |
1 GB |
| Features |
Axis Edge Vault, Wide Dynamic Range (WDR), Lightfinder technology, Zipstream technology, remote zoom, secure boot, signed firmware, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, progressive scanning, Adaptive Bitrate (ABR), Variable Bitrate (VBR), 180° image rotation, 270° image rotation, 90° image rotation, brightness control, colour control, compression, contrast control, Corridor mode, exposure control, image mirror, image overlay, motion-adaptive exposure, Privacy Mask Function, sharpness control, text overlay, white balance, digital PTZ function, HTTPs encryption, IP address filtering, password protection, brute force delay protection, centralised certificate management, digest authentication, user access log, VAPIX support, aluminium housing, plastic housing, Power over Ethernet, infrared cut filter, Video Motion Detection Technology, active tampering alarm, Edge Storage |
| Image Sensor |
| Type |
4 MP PS RGB CMOS 1/2.7" |
| Lens Construction |
| Type |
Fixed focal |
| Focal Length |
2.4 mm |
| Lens Iris |
F/2.1 fixed iris |
| Min Focus Distance |
0.5 m |
| Horizontal Field of View (degree) |
130 |
| Vertical Field of View (degree) |
81 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
IPv4, IPv6, USGv6, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, DNS, NTP, RTSP, RTP, SRTP, TCP/IP, UDP/IP, RTCP, SOCKS, SSH, LLDP, MQTT, SNMP 1, SNMP 2c, SNMP 3, IGMP, IGMPv2, IGMPv3, DHCP |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45 |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Torx L-key |
| Compliant Standards |
IK08, IP66, IP67, NEMA Type 4X, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, NEMA TS-2, EMC, CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), AS/NZS CISPR 32 Class A, EN 60529, IEC 60068-2, IEC 60529, IEC 62471, IEC/EN 62262, IEC/EN 62368-1, IS13252, KN32 Class A, KN35, NIST SP500-267, RCM, VCCI Class A |
| Colour |
White, NCS S 1002-B |
| Power |
| Power Requirements |
PoE Plus Class 3 |
| Power Device |
5 Watt |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years |
| Environmental Parameters |
| Min Operating Temperature |
-30 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 100% RH |
