| Marketing Description |

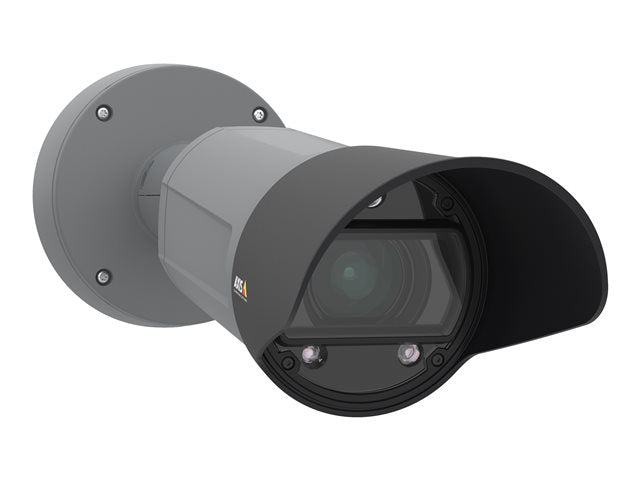

| AXIS Q1700-LE License Plate Camera is the first dedicated license plate camera from Axis enabling you to capture sharp images 24/7. And thanks to its open platform, you get flexible integration with third-party analytics. This makes AXIS Q1700-LE ideal for road and urban security, vehicle loitering such as suspicious movement, tracking cars or goods and law enforcement purposes for instance gathering forensic evidence or searching for stolen vehicles. |
| Product Features |
-
Designed to capture
AXIS Q1700-LE is specially designed to capture license plate images with exceptional clarity and sharpness. It delivers excellent HDTV 1080p and ensures the required pixel density for license plate identification as well as plate markings, such as transporting dangerous goods.
-
Tough for the road
AXIS Q1700-LE captures license plate images with high pixel density at vehicle speeds of up to 130 km/h (81 mph). This robust and weatherproof camera includes an extra-long weathershield for protection in any environment. It can withstand hurricane force winds of more than 60 m/s (134 mph) and with IP66, NEMA 4X and IK10 ratings, you can be sure that it's resistant to both harsh weather conditions and impacts. Plus, the gray color housing and black weathershield blends right in to any traffic environment.
-
Add any analytics
AXIS Q1700-LE is compatible with AXIS Camera Station and most third-party video management systems (VMS), allowing you to use analytics or other third-party applications to meet your specific needs.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes |
| Audio Formats |
G.726, AAC-LC, LPCM, G.711, OPUS |
| Connectivity Technology |
Wired |
| Width |
43.9 cm |
| Depth |
14.7 cm |
| Height |
14.7 cm |
| Weight |
2.4 kg |
| Camera |
| Type |
Colour - Day&Night - pan / tilt / zoom - outdoor, indoor - weatherproof |
| Digital Video Format |
MJPEG, H.264 |
| Max Digital Video Resolution |
1920 x 1080 |
| Exposure Range |
1 sec - 1/66500 sec |
| Minimum Illumination |
0.16 lux - colour - F1.4 - 50 IRE
0.03 lux - B&W - F1.4 - 50 IRE
0 lux - IR |
| Infrared LEDs |
Yes |
| Infrared Distance |
50 m |
| Digital Video Capture Resolution |
160 x 120, 1920 x 1080 |
| Frame Rate (max) |
60 frames per second |
| RAM |
1024 MB |
| Flash Memory |
512 MB |
| Features |
Sharpness control, white balance, saturation control, brightness control, contrast control, NAS-Ready, OptimizedIR, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, Forensic WDR, exposure zone, motion detection, VAPIX support |
| Image Sensor |
| Type |
RGB CMOS 1/2.8" |
| Lens Construction |
| Optical Zoom |
8 x |
| Focal Length |
18 mm - 137 mm |
| Lens Iris |
F/2.9-4.1 |
| Focus Adjustment |
Automatic |
| Horizontal Field of View (degree) |
2.3 - 16 |
| Vertical Field of View (degree) |
1.3 - 9.6 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, LLDP, USGv6 |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45
Terminal block
Audio line-in/microphone - 3.5 mm jack |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Connector kit, Resistorx L-key |
| Compliant Standards |
EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 62262 IK08, IEC 62262 IK10, EN 50121-4, IEC 62236-4, VCCI Class A, EN 50581, EAC, NEMA TS-2, IS13252, FCC CFR47 Part 15 B Class A, KN35, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 62262 IK10, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-22, IEC/EN 62471, EN 62262 IK08, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, NIST SP500-267 |
| Colour |
Dark grey |
| Power |
| Power Requirements |
PoE Class 3 |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
-40 °C |
| Max Operating Temperature |
60 °C |
| Relative Humidity (operating) |
10 - 100% |
