| Marketing Description |

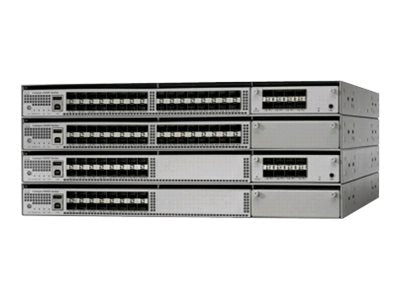

Cisco Catalyst 4500-X series switch is a fixed aggregation switch that delivers excellent scalability, simplified network virtualization, and integrated network services for space-constrained environments in campus networks. It meets business growth objectives with unprecedented scalability, simplifies network virtualization with support for one-to-many and many-to-one virtual networks, and enables emerging applications by integrating many network services.
Cisco Catalyst 4500-X series provides scalable, fixed-campus aggregation solutions in space-constrained environments. The solution provides flexibility to build desired port density through two versions of base switches along with optional uplink module. The Small Form-Factor Pluggable Plus (SFP+) interface supports both 10 Gigabit Ethernet and 1 Gigabit Ethernet ports, allowing customers to use their investment in 1 Gigabit Ethernet SFP and upgrade to 10 Gigabit Ethernet when business demands change, without having to do a comprehensive upgrade of the existing deployment. The uplink module is hot swappable. |
| Product Features |
-
Platform scalability
Delivers up-to 800 Gbps of switching capacity, capable of scaling in the future to 1.6-Tbps capacity with the VSSi technology. Future-proof investment with modular uplink and auto-detect 10 Gigabit Ethernet and 1 Gigabit Ethernet ports.
-
High availability
These switches deliver the network availability demanded by business-critical enterprise applications through comprehensive high-availability capabilities, including VSSi and EVN.
-
Application monitoring
Enhanced application monitoring through Flexible Netflow and eight ports of line rate bidirectional Switched Port Analyzer (SPAN)/Remote Switched Port Analyzer (RSPAN).
-
Security
Support for Cisco TrustSec technology as well as robust control plane policing (CoPP) to address denial of service attacks.
|
| General |
| Device Type |
Switch - 24 ports - Managed |
| Enclosure Type |
Front to back airflow rack-mountable |
| Subtype |
10 Gigabit Ethernet |
| Ports |
24 x 10 Gigabit SFP+ |
| Jumbo Frame Support |
9216 bytes |
| Remote Management Protocol |
RMON 1, RMON 2 |
| Features |
Layer 2 switching, VLAN support, Access Control List (ACL) support, Quality of Service (QoS), redundant hot swappable fans |
| Compliant Standards |
IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s |
| Processor |
: 1.5 GHz |
| RAM |
4 GB DDR2 SDRAM |
| Flash Memory |
2 GB (max) |
| Expansion / Connectivity |
| Interfaces |
40 x 10GBase-T SFP+
1 x 1000Base-T RJ-45 management
1 x USB Type A
1 x console RJ-45 |
| Expansion Slots |
1 (total) / 1 (free) x SD Memory Card
1 (total) / 1 (free) x Expansion Slot |
| Power |
| Power Device |
Internal power supply (not installed) - hot-plug |
| Max Supported Qty |
2 |
| Power Redundancy |
Yes |
| Power Consumption Operational |
330 Watt |
| Miscellaneous |
| MTBF |
209,330 hours |
| Compliant Standards |
CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1, AS/NZS, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 300 386 |
| Pricing Type |
Refurbished |
| Software / System Requirements |
| Software Included |
Cisco IOS Enterprise Services |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - advance parts replacement - lifetime - response time: 10 days |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
