| Marketing Description |

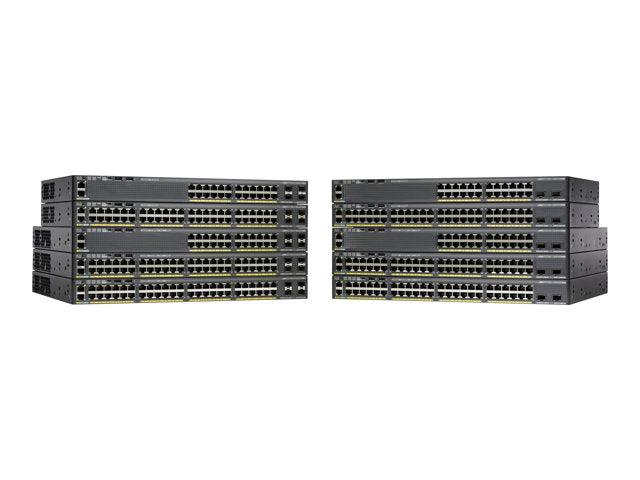

| Cisco Catalyst 2960-X series switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS Software features. |
| Product Features |
-
Network security
The Cisco Catalyst 2960-X series switches provide a range of security features to limit access to the network and mitigate threats.
-
Redundancy and resiliency
Cisco Catalyst 2960-X series switches offer a number of redundancy and resiliency features to prevent outages and help ensure that the network remains available.
-
Application visibility
Catalyst 2960-X series switches support NetFlow Lite, which enables IT teams to understand the mix of traffic on their network and identify anomalies by capturing and recording specific packet flows.
-
Power management
The 2960-X switches offer a range industry leading features for effective energy efficiency and energy management.
-
Network management
The Cisco Catalyst 2960-X series switches offer a superior CLI for detailed configuration and administration. 2960-X series switches are also supported in the full range of Cisco network management solutions.
-
Intelligent Power over Ethernet Plus
Cisco Catalyst 2960-X series switches support both IEEE 802.3af Power over Ethernet (PoE) and IEEE 802.3at PoE+ (up to 30W per port) to deliver lower total cost of ownership for deployments that incorporate Cisco IP phones, Cisco Aironet wireless access points, or other standards-compliant PoE/PoE+ end devices. PoE removes the need to supply wall power to PoE-enabled devices and eliminates the cost of adding electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments.
|
| General |
| Device Type |
Switch - 24 ports - Managed - stackable |
| Enclosure Type |
Desktop, rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
24 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) |
PoE+ |
| PoE Budget |
370 W |
| Performance |
Switching capacity: 216 Gbps
Forwarding performance (64-byte packet size): 95.2 Mpps |
| Capacity |
Virtual interfaces (VLANs): 1023 |
| Jumbo Frame Support |
9216 bytes |
| Max Units In A Stack |
8 |
| Remote Management Protocol |
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI |
| Authentication Method |
Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features |
Layer 2 switching, DHCP support, PoE, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IPv6 support, RSTP support, MSTP support, DTP support, PAgP support, TFTP support, ACL support, RADIUS support, Jumbo Frames support, MLD snooping, DAI, PoE+, Cisco EnergyWise technology, URPF, UDLD, Rapid PVST+, IPv4 support, SRR, LACP, RSPAN, NetFlow, HSRP support, Energy Efficient Ethernet |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1ae, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Processor |
1 x ARM: 600 MHz |
| RAM |
512 MB |
| Flash Memory |
128 MB |
| Status Indicators |
Port status, port transmission speed, port duplex mode, system, link/activity |
| Expansion / Connectivity |
| Interfaces |
24 x 1000Base-T RJ-45 PoE+ - 30 W
1 x console RJ-45 management
1 x mini-USB Type B management
1 x USB Type A
1 x 1000Base-TX RJ-45 management
2 x SFP+ |
| Expansion Slots |
1 (total) / 1 (free) x Stacking Module |
| Power |
| Power Device |
Internal power supply |
| Power Redundancy |
Optional |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Features |
Redundant Power System (RPS) connector |
| Miscellaneous |
| MTBF |
325,780 hours |
| Compliant Standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22, KN24, CNS 13438(95) Class A, EN 300 386 |
| Pricing Type |
Refurbished |
| Software / System Requirements |
| Software Included |
Cisco IOS LAN Base |
| Dimensions & Weight |
| Width |
44.5 cm |
| Depth |
36.8 cm |
| Height |
4.5 cm |
| Weight |
5.7 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - advance parts replacement - lifetime - response time: next business day
Technical support - consulting - 90 days |
| Environmental Parameters |
| Min Operating Temperature |
-5 °C |
| Max Operating Temperature |
45 °C |
| Humidity Range Operating |
10 - 95% (non-condensing) |
| Min Storage Temperature |
-25 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
10 - 95% (non-condensing) |
