| General |
| Device Type |

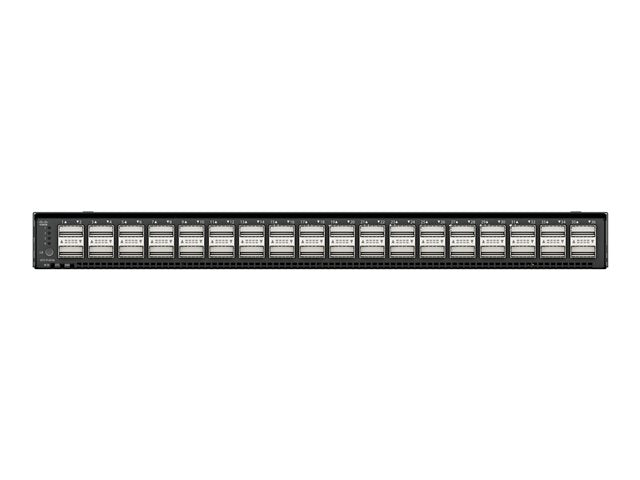

Switch - 36 ports - Managed |
| Enclosure Type |
Front to back airflow rack-mountable 1U |
| Subtype |
100 Gigabit Ethernet |
| Ports |
30 x 10 Gigabit / 25 Gigabit / 40 Gigabit / 100 Gigabit QSFP28 + 4 x 10/25/40/100 Gigabit Ethernet or 8/16/32 Gigabit Fibre Channel + 2 x 1/10/25/40/100 Gigabit QSFP28 |
| Performance |
Switching throughput: 7.42 Tbps
Latency: < 1 µs
Layer 2 hardware forwarding: 7.42 Tbps
Layer 2 hardware forwarding: 2.4 Bpps
Aggregate data rate: 14.84Tbps |
| Capacity |
Layer 2 VLANs: 3000
QoS hardware queues per port: 16 |
| MAC Address Table Size |
32000 entries |
| Jumbo Frame Support |
9216 bytes |
| Routing Protocol |
IGMP, IGMPv2, IGMPv3 |
| Remote Management Protocol |
RMON |
| Features |
6 fan modules, breakout capability, QoS, VLAN encapsulation, RPVST+, LACP, CoS, enhanced transmission selection, priority-based flow control, WRR, PFC, DCBX support, Quad-core CPU, LACP support, FET, FCoE support |
| Compliant Standards |
IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3bg |
| RAM |
32 GB |
| Status Indicators |
Beaconing, status, power |
| Expansion / Connectivity |
| Interfaces |
30 x 10/25/40/100Gbit LAN QSFP28 FCOE / uplink
4 x 10/25/40/100Gbit LAN or 8/16/32Gb Fibre Channel QSFP28 FCOE / unified port
2 x 1/10/25/40/100Gbit LAN QSFP28 FCOE / uplink
1 x 10/100/1000 Base-T RJ-45 management
1 x USB Type A
1 x serial (RS-232) RJ-45 console
2 x 10/100/1000 Base-T clustering |
| Power |
| Power Device |
Internal power supply (not installed) - hot-plug |
| Max Supported Qty |
2 |
| Power Redundancy |
Optional |
| Power Redundancy Scheme |
1+1 (with optional power supply) |
| Voltage Required |
AC 120/230 V |
| Miscellaneous |
| Included Accessories |
Chassis accessory kit |
| Compliant Standards |
RoHS, AS/NZS 60950-1, AS/NZS CISPR22 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, Directive 2004/108/EC, Directive 2006/95/EC, EN 300 386, EN 55022 Class A, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15 A, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN 61000-4, KN22 Class A, UL 60950-1 Second Edition, VCCI Class A |
| Software / System Requirements |
| Software Included |
Cisco Intersight |
| Dimensions & Weight |
| Width |
43.9 cm |
| Depth |
62.7 cm |
| Height |
4.4 cm |
| Weight |
11.6 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - 3 years - response time: next business day |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
5 - 95% (non-condensing) |
