| Marketing Description |

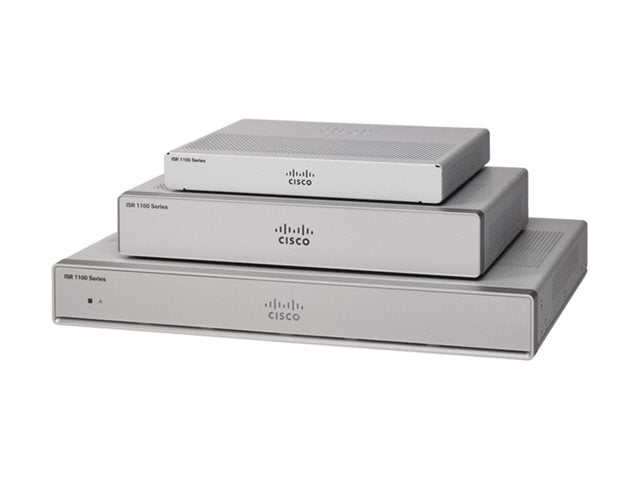

| The Cisco C1111-8PLTEEA Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors. |
| Product Features |
-
PORT COUNT
8-port managed Gigabit Ethernet switch (4 ports PoE-capable with 2 ports PoE+)
-
CONNECTIVITY
LTE Advanced (CAT6) WAN, Gigabit WAN and WAN/SFP combo ports with integrated USB 3.0 AUX/console
-
SECURITY
Multi-layer, robust security and high-performance VPNs encrypt all data from the WAN edge to the cloud
-
PERFORMANCE
Business router designed for broadband network speeds while running secure, concurrent data, voice, video and wireless services
-
PEACE OF MIND
1-year limited hardware warranty with 10-day advanced replacement
|
| General |
| Device Type |
Router - 8-port switch (integrated) |
| Enclosure Type |
Desktop |
| Connectivity Technology |
Wireless, wired |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ac Wave 2 |
| Performance |
Crypto performance: 250 Mbps |
| Network / Transport Protocol |
IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Routing Protocol |
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Remote Management Protocol |
SNMP, RMON, CLI, TR-069 |
| Encryption Algorithm |
Triple DES, SHA, MD5, AES, WPA2, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 384-bit SHA-2, 256-bit SHA, 512-bit SHA, 748-bit AES, ECDSA 256-bit, ECDSA 384-bit |
| Authentication Method |
RADIUS |
| Features |
DHCP support, PoE, load balancing, MPLS support, VLAN support, Syslog support, IPv6 support, Dying Gasp support, CBWFQ, WRED, VRRP support, ACL support, QoS, DMVPN, SMS alert, BFD, IPv4 support, NetFlow, MRC, HSRP support, Call Home function support, IPFIX, GRE, automatic Internet Key Exchange, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, AVC, 3G MIB, failover protection, Field Programmable Gate Array, AES encryption, policy based routing, AAA, DFS, HQoS, L3VPN support, EEM, MHSRP, EVC, Cisco IPSLA, NBAR, MIP, dual SIM support |
| Compliant Standards |
IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13 |
| RAM |
4 GB |
| Flash Memory |
4 GB |
| Status Indicators |
Status |
| Communications |
| Type |
Wireless cellular modem |
| Mobile Communication Protocol |
UMTS, TD-SCDMA, HSPA+, DC-HSPA+, LTE Advanced, FDD LTE, TDD LTE |
| Internet of Things (IoT) |
| Communications Technology |
LTE Cat 6 |
| Expansion / Connectivity |
| Interfaces |
WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP
WAN: 1 x 1000Base-T - RJ-45
LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
LAN: 2 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45
LAN: 2 x 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45
USB 3.0: 1 x console
Antenna: 1 x GPS connector |
| Expansion Slots |
1 (total) / 1 (free) x SIM |
| Power |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Power Consumption Operational |
66 Watt |
| Miscellaneous |
| Localisation |
Canada, Middle East, United States, Europe |
| Software / System Requirements |
| OS Provided |
Cisco IOS XE Universal |
| Dimensions & Weight |
| Width |
32.3 cm |
| Depth |
24.4 cm |
| Height |
4.4 cm |
| Weight |
2.59 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
65 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
