| Marketing Description |

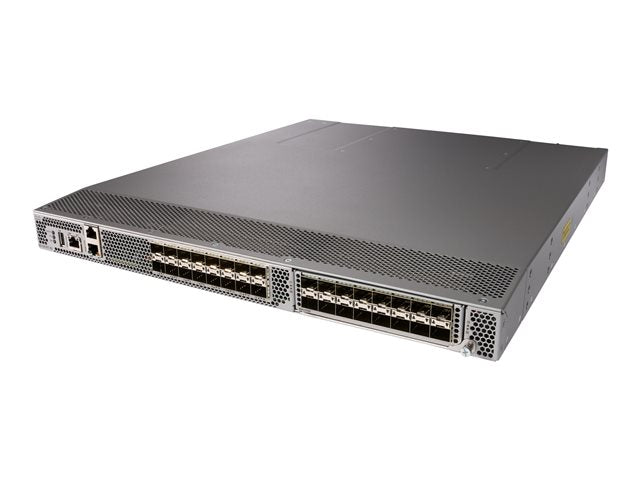

| The Cisco MDS 9132T switch provides high-speed connectivity from the server rack to the SAN core. It empowers small, midsize, and large enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers, providing the dual benefits of greater bandwidth and consolidation. Small-scale SAN architectures can be built from the foundation using this low-cost, low-power, non-blocking, line-rate, and low-latency, bi-directional airflow capable, fixed standalone SAN switch connecting both storage and host ports. Medium-size to large-scale SAN architectures built with SAN core directors can expand high-speed connectivity to the server rack using these switches either in switch mode. |
| Product Features |
-
High performance
MDS 9132T architecture, with chip-integrated non-blocking arbitration, provides consistent low-latency performance across all traffic conditions.
-
High availability
MDS 9132T switches provide outstanding availability and reliability by providing optional redundancy on all major components such as the power supply and fan. Dual power supplies also facilitate redundant power grids.
-
Sophisticated diagnostics
The MDS 9132T provides intelligent diagnostics tools, read diagnostic parameters, protocol decoding, network analysis tools, and reduced service costs.
-
Virtual machine awareness
The MDS 9132T provides visibility into all virtual machines logged into the fabric. Virtual machine awareness can be extended to intelligent fabric services such as analytics to visualize performance of every flow originating from each virtual machine in the fabric.
|
| General |
| Device Type |
Switch - Managed |
| Enclosure Type |
Rack-mountable 1U |
| Subtype |
Fibre Channel |
| Ports |
8 x 32Gb Fibre Channel SFP+ |
| Fibre Channel |
FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-MSQS, FC-BB-6, FC-SB-5, FC-GS-7, FC-LS-3 |
| Routing Protocol |
VRRP |
| Remote Management Protocol |
SNMP, RMON, SNMP 3, HTTPS, SMI-S, SSH-2, SFTP |
| Encryption Algorithm |
AES |
| Authentication Method |
RADIUS, TACACS+, LDAP |
| Features |
Auto-sensing per device, ARP support, LDAP support, Syslog support, Access Control List (ACL) support, Quality of Service (QoS), Registered State Change Notification (RSCN) support, port exhaust, Automated Attendant (IVR), 2 fans, In-Service Software Upgrade (ISSU), built-in ASIC, Fabric Configuration Server (FCS), Cisco Inter-Switch Link (ISL), Role-Based Access Control (RBAC), TrustSec support, Power-on self-test (POST), Authentication, Authorization and Accounting (AAA), Read Diagnostic Parameters (RDP), Virtual Machine Identity (VMID) support, Switched Port Analyzer (SPAN) |
| Status Indicators |
Power, system, fan |
| Expansion / Connectivity |
| Interfaces |
8 x 32Gb Fibre Channel SFP+ LC multi-mode x 2
8 x 32Gb Fibre Channel SFP+ Ports on Demand
1 x console RJ-45
1 x USB Type A
2 x management (Gigabit LAN) RJ-45 |
| Expansion Slots |
1 (total) / 1 (free) x Expansion Slot |
| Power |
| Power Device |
Internal power supply - hot-plug |
| Installed Qty |
1 |
| Max Supported Qty |
2 |
| Power Redundancy |
Optional |
| Power Provided |
650 Watt |
| Voltage Required |
AC 120/230 V (50 - 60 Hz) |
| Features |
80 PLUS Platinum efficiency |
| Miscellaneous |
| Compliant Standards |
CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, EN 61000-6-1, AS/NZS 3260, EMC, ICES-003 Class A, EN 60825, FCC Part 15 A, AS/NZS 3548 Class A, IEC 60825, CAN/CSA C22.2 No. 60950, VCCI Class A, EN 55022 Class A, 21 CFR 1040, TS001 |
| Dimensions & Weight |
| Width |
4.37 cm |
| Depth |
43.9 cm |
| Height |
51.1 cm |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - advance hardware replacement - 1 year - response time: 10 days |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
45 °C |
| Humidity Range Operating |
10 - 90% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
10 - 95% (non-condensing) |
