CISCO Nexus 9300 Series 36P 40/100G QSFP28

CISCO Nexus 9300 Series 36P 40/100G QSFP28

CISCO
SKU KXG0141704

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

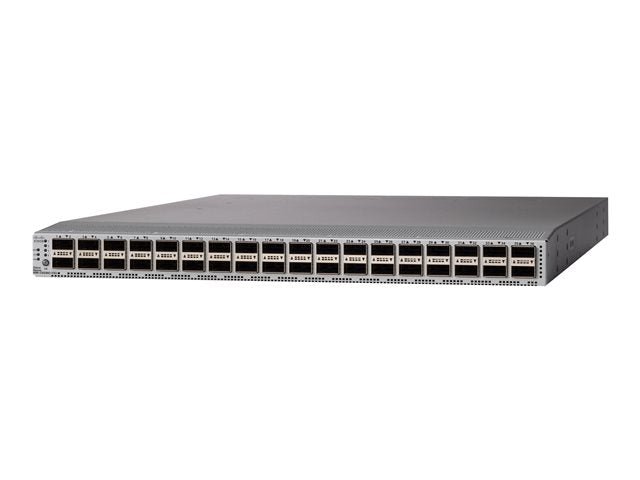

CISCO Nexus 9300 Series 36P 40/100G QSFP28

Manufacturer CISCO
Manufacturer Part No N9K-C9336C-FX2

Marketing Description
The Cisco Nexus 9336C-FX2 offers flexible port speeds in a compact form factor. Designed to meet the changing needs of data centers, big data applications, and automated cloud environments, this powerful switch delivers superior programmability.
Product Features
  • Robust performance
    With a bandwidth capacity of 7.2 Tbps, the Cisco Nexus 9336C-FX2 ensures high-speed data transmission and efficient handling of network traffic, making it ideal for demanding enterprise environments.
  • Comprehensive connectivity
    Equipped with 36 QSFP28 ports, this switch supports both 100 Gigabit and 40 Gigabit LAN connections, offering versatile connectivity options for a wide range of network configurations.
  • Advanced networking features
    Features such as Access Control List (ACL) support, Ethernet Virtual Private Network (EVPN), and Virtual Extensible LAN (VXLAN) provide enhanced security and network virtualization capabilities, facilitating secure and flexible network architecture designs.
  • High reliability
    Designed for continuous operation, the Cisco Nexus 9336C-FX2 boasts an impressive MTBF of 352,590 hours, ensuring long-term reliability and minimal downtime for critical network operations.
  • Efficient management and operation
    With support for advanced routing protocols like BGP, OSPF, and EIGRP, and features like Power On Auto Provisioning (POAP), managing and operating your network becomes simpler and more efficient, reducing the time and effort required for network administration.
General
Device Type Switch - 36 ports - L3 - Managed
Enclosure Type Front and side to back rack-mountable 1U
Ports 36 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28
Performance Bandwidth: 7.2 Tbps
Bandwidth: 2.8 bpps
Capacity Multiple Spanning Tree Protocol instances: 64
HSRP groups: 490
ACL entries (ingress): 5000
Maximum number of links in a port channel: 32
Maximum number of port channels: 512
ECMP paths: 64
Virtual Routing and Forwarding (VRF) instances: 16000
VLANs supported: 3967
ACL entries (egress): 2000
IGMP snooping groups: 32000
Multicast routes: 32000
NAT entries: 1023
Routing Protocol OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS
Features STP support, MSTP support, ACL support, port exhaust, vPC technology, MACsec support, VXLAN, SSM, EVPN, 40MB system buffer, 3 fan trays, POAP
RAM 24 GB
Built-in Devices 128 GB SSD
Expansion / Connectivity
Interfaces 36 x 100Gbit/40Gbit LAN QSFP28
1 x management RJ-45
1 x management SFP+
1 x USB
1 x serial (RS-232)
Power
Power Device Internal power supply (not installed)
Max Supported Qty 2
Power Redundancy Optional
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 777 Watt
Miscellaneous
MTBF 352,590 hours
Compliant Standards RoHS
Dimensions & Weight
Width 43.9 cm
Depth 62.3 cm
Height 4.4 cm
Weight 8.5 kg
Manufacturer Warranty
Service & Support Limited warranty - advance parts replacement - 1 year - response time: 10 days
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 5 - 95% (non-condensing)
Min Storage Temperature -40 °C
Max Storage Temperature 70 °C
