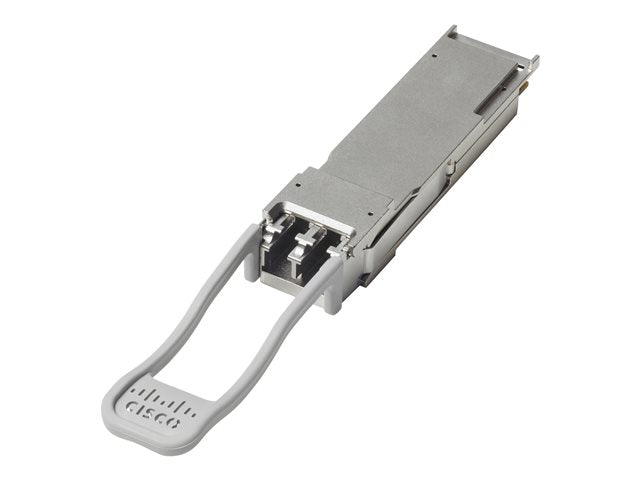

CISCO QSFP40G BiDi Трансивър с къс обхват

CISCO QSFP40G BiDi Трансивър с къс обхват

CISCO
SKU KXG0132608

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Модул, QSFP40G BiDi Short-reach Transceiver

Manufacturer CISCO
Manufacturer Part No QSFP-40G-SR-BD=

Marketing Description
The Cisco QSFP BiDi transceiver addresses the challenges of fiber infrastructure by providing the capability to transmit full-duplex 40-Gbps traffic over one duplex MMF cable with LC connectors. In another words, the Cisco QSFP BiDi transceiver allows 40-connectivity to reuse the existing directly connecting 10-Gbps fibers and the existing fiber trunk without the need to add any fibers. The Cisco QSFP BiDi transceiver (QSFP-40G-SR-BD) is a short-reach optical transceiver that delivers 40 Gbps over a duplex OM3 or OM4 MMF. It is MSA compliant.
Product Features
  • Enhanced connectivity
    The Cisco QSFP+ transceiver module offers a robust solution for extending network connections, featuring a 40Gb Ethernet interface that ensures high-speed data transfer rates of up to 40 Gbps. With dual LC multi-mode connectors, it facilitates seamless integration into existing network infrastructures, making it an ideal choice for businesses looking to enhance their data communication capabilities.
  • Reliable performance
    Designed to operate efficiently across a wide range of temperatures, from 10°C to 70°C, this transceiver module provides reliable performance under various environmental conditions. Its compliance with MSA and RoHS standards further underscores its commitment to quality and environmental responsibility.
  • Extended reach
    Capable of maintaining data integrity over distances up to 150 m, the Cisco QSFP+ transceiver module leverages an optical wavelength range of 832-918 nm to facilitate long-range communication. This feature is particularly beneficial for large-scale operations that require robust networking solutions over extended areas.
General
Device Type QSFP+ transceiver module
Form Factor Plug-in module
Colour Grey
Networking
Connectivity Technology Wired
Cabling Type 40GBASE-BiDi
Data Link Protocol 40GbE
Data Transfer Rate 40 Gbps
Optical Wave Length 832-918 nm
Max Transfer Distance 150 m
Expansion / Connectivity
Interfaces 1 x 40Gb Ethernet - LC multi-mode x 2
Miscellaneous
Compliant Standards RoHS, MSA
Dimensions & Weight
Width 1.84 cm
Depth 7.24 cm
Height 1.35 cm
Weight 100 g
Manufacturer Warranty
Service & Support Limited warranty - 90 days
Environmental Parameters
Min Operating Temperature 10 °C
Max Operating Temperature 70 °C
Compatibility Information
Designed For P/N: N6K-C6004-M12Q, N6K-C6004-M12Q=, N7K-F312FQ-25=, N9K-C9396PX, N9K-X9636PQ, N9K-X9636PQ-RF
