| Marketing Description |
Cisco UCS 2200 series Fabric Extender brings the unified fabric into the blade server enclosure, providing multiple 10 Gigabit Ethernet connections between blade servers and the fabric interconnect, simplifying diagnostics, cabling, and management.
The Cisco UCS 2200 series is enabling a lossless and deterministic Fiber Channel over Ethernet (FCoE) fabric to connect all blades and chassis together. Since the fabric extender is similar to a distributed line card, it does not perform any switching and is managed as an extension of the fabric interconnects. This approach removes switching from the chassis, reducing overall infrastructure complexity and enabling Cisco UCS to scale to many chassis without multiplying the number of switches needed, reducing TCO and allowing all chassis to be managed as a single, highly available management domain.

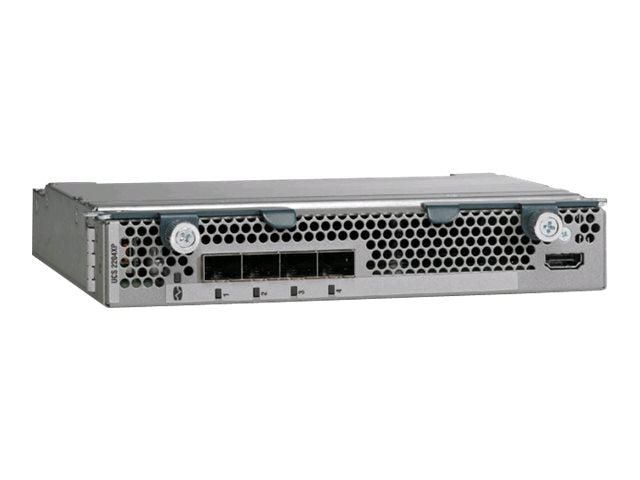

The Cisco UCS 2204XP Fabric Extender has four 10 Gigabit Ethernet, FCoE-capable, SFP+ ports that connect the blade chassis to the fabric interconnect. Each Cisco UCS 2204XP has sixteen 10 Gigabit Ethernet ports connected through the midplane to each half-width slot in the chassis. Typically configured in pairs for redundancy, two fabric extenders provide up to 80 Gbps of I/O to the chassis. |
| Product Features |
-
Robust performance
With a forwarding performance of 640 Gbps, the Cisco UCS 2204XP Fabric Extender ensures efficient data handling for networking, making it suitable for demanding data center environments.
-
Comprehensive connectivity
Equipped with four SFP+ connectors, this expansion module offers versatile connectivity options for 10 Gigabit Ethernet, supporting a wide range of network infrastructures.
-
Advanced networking features
Features such as Data Center Bridging Exchange (DCBX) support, High Availability, Jumbo Frames, Quality of Service (QoS), VLAN support, Weighted Round Robin (WRR) queuing, and priority-based flow control, enhance network efficiency, reliability, and performance.
-
Wide compliance
Meeting a broad spectrum of compliance standards including IEEE 802.1Q, IEEE 802.1p, and more, the Cisco UCS 2204XP Fabric Extender is designed to fit seamlessly into various regulatory environments, ensuring a high level of operational safety and compatibility.
-
Optimal environmental adaptability
Designed to operate within a wide range of humidity (5 - 95% non-condensing) and temperature (0°C to 40°C), this device ensures reliability and durability in diverse operational conditions.
|
| General |
| Device Type |
Expansion module |
| Form Factor |
Plug-in module |
| Bundled with |
8 x Cisco 10G Line Extender for FEX (FET-10G) |
| Networking |
| Ports |
10Gb Ethernet / FCoE SFP+ x 4 + 10Gb Ethernet (backplane) x 16 |
| Connectivity Technology |
Wired |
| Data Link Protocol |
10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE) |
| Performance |
Forwarding performance: 640 Gbps |
| Status Indicators |
Status, link/activity |
| Features |
VLAN support, Weighted Round Robin (WRR) queuing, High Availability, Data Center Bridging Exchange (DCBX) support, priority-based flow control, Quality of Service (QoS), Jumbo Frames support |
| Compliant Standards |
IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae |
| Expansion / Connectivity |
| Interfaces |
4 - SFP+
16 x 10Gb Ethernet - backplane |
| Miscellaneous |
| Compliant Standards |
CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, FCC CFR47, EN 300 386 |
| Dimensions & Weight |
| Width |
3.45 cm |
| Depth |
18.3 cm |
| Height |
19.4 cm |
| Weight |
1.134 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Compatibility Information |
| Designed For |
Cisco Network Analysis Module 2204, 2204 Appliance |
