| Marketing Description |

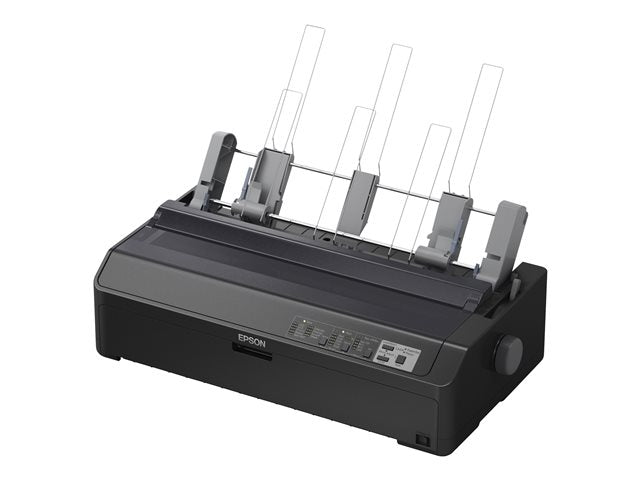

| The LQ-2090IIN is a high-volume dot matrix printer designed for fast and reliable printing. It delivers built-in network capability with an incredibly low TCO. |
| Product Features |
-
Fast print speed
The LQ-2090IIN offers an improved speed, making a real difference to high-volume print runs such as stock reports and large batches of invoices or freight documents.
-
Increased reliability
Epson's dot matrix technology is already mature and very reliable. Building on this, the printer improves the mean time between failure, ideal for challenging conditions or where regular maintenance is not practical.
|
| General |
| Printer Type |
Workgroup printer - dot-matrix - 24 pin - monochrome |
| Printer |
| Print Speed |
Up to 550 char/sec - ultra high speed draft - 10 cpi
Up to 584 char/sec - high speed draft - 12 cpi
Up to 487 char/sec - high speed draft - 10 cpi
Up to 366 char/sec - draft - 10 cpi
Up to 439 char/sec - draft - 12 cpi
Up to 549 char/sec - draft - 15 cpi
Up to 145 char/sec - letter - 12 cpi
Up to 121 char/sec - letter - 10 cpi |
| Connectivity Technology |
Wired |
| Interface |
Parallel, USB 2.0, LAN |
| Max Resolution (B&W) |
360 x 180 dpi |
| Max Resolution Class (B&W) |
360 x 180 dpi |
| Language Simulation |
EPSON ESC/P 2, IBM PPDS |
| Barcodes |
Code 39, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Code 128, Interleaved 2 of 5, Postnet |
| RAM |
| RAM Installed (Max) |
128 KB |
| Media Handling |
| Media Type |
Envelopes, plain paper, continuous forms, cards, recycled paper |
| Max Media Size |
Roll (21.6 cm), continuous paper 101.6 mm - 406.4 mm (width), 420 x 364 mm |
| Min Media Size (Custom) |
100 mm |
| Max Media Size (Custom) |
420 mm |
| Media Sizes |
Roll (21.6 cm), continuous paper 101.6 mm - 406.4 mm (width), 406.4 x 558.8 mm, 420 x 364 mm |
| Envelope Sizes |
Com-10 (105 x 241 mm), US No 6 (92 x 165 mm) |
| Card / Label Sizes |
100 x 148 mm, 148 x 148 mm |
| Media Thickness Range |
0.065 mm - 0.49 mm |
| Media Weight |
40 g/m² - 192 g/m² |
| Max Sheets in Multi-Part Form |
6 |
| Networking |
| Networking |
Print server |
| Expansion / Connectivity |
| Connections |
1 x parallel
1 x USB 2.0
1 x LAN |
| Miscellaneous |
| Consumables Included |
1 x print ribbon cassette - up to 8 million characters |
| MTBF |
25,000 hour(s) |
| Compliant Standards |
EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, FCC Part 15 B Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, CAN/CSA-C22.2 No. 60950-1, UL 62368-1 |
| Power |
| Power Device |
Power supply - internal |
| Software / System Requirements |
| OS Required |
Microsoft Windows XP Professional x64 Edition SP2 or later, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2003 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2003 SP2 or later, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2012, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 R2, Microsoft Windows XP SP3 (32 bit) or later, Windows 10 (32/64 bits), Microsoft Windows Server 2016 |
| Environmental Standards |
| ENERGY STAR |
Yes |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature |
5 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
10 - 80% (non-condensing) |
| Sound Emission (Operating) |
55 dBA |
| Dimensions & Weight |
| Width |
61.2 cm |
| Depth |
32 cm |
| Height |
17.65 cm |
| Weight |
9.4 kg |
