| Marketing Description |

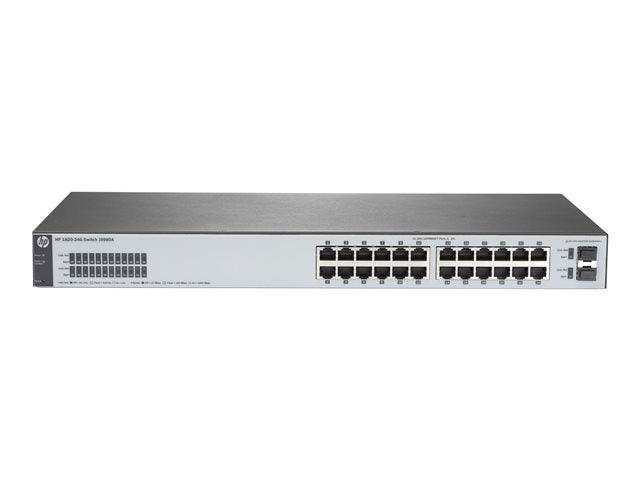

| The HPE 1820 Switch Series offers more choice and flexibility for smaller organizations that require ease of use and lower TCO, while delivering better network performance with an enhanced user experience. HPE 1820 Switch Series devices are smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches with basic features in an easy-to-administer solution. The series includes 8-, 24- and 48-port non-PoE and PoE+ Gigabit Ethernet models. Specific models include SFP ports for fiber connectivity. Some models are fanless, making them ideal for office deployments. |
| Product Features |
-
Robust performance
Equipped with a 400 MHz processor and SDRAM technology, this switch is designed to handle demanding network environments, ensuring smooth and efficient data processing.
-
Comprehensive connectivity
Featuring 24 10/100/1000 RJ-45 ports and 2 Fast Ethernet/Gigabit SFP ports, the HPE 1820-24G offers a wide range of connection options for various networking requirements.
-
Enhanced network security
With SSL encryption and DoS attack prevention, this switch provides a secure networking environment, protecting sensitive data from potential threats.
-
Advanced networking features
Supports a plethora of networking standards including IEEE 802.1Q and IEEE 802.3ad (LACP), along with features like VLAN support and Quality of Service (QoS), making it a versatile choice for any business.
-
Efficient management and operation
Manageable via HTTPS and SNMP, the HPE 1820-24G allows for easy configuration and monitoring, while its low operating temperature range and rack-mountable design ensure hassle-free maintenance and integration into existing setups.
|
| General |
| Device Type |
Switch - 24 ports - Managed |
| Enclosure Type |
Desktop, rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
24 x 10/100/1000 + 2 x Fast Ethernet/Gigabit SFP |
| Performance |
Throughput (64-byte packet size): up to 38.6 Mpps
Switching capacity: 52 Gbps |
| MAC Address Table Size |
8000 entries |
| Jumbo Frame Support |
9220 bytes |
| Remote Management Protocol |
SNMP 1, SNMP 2c, HTTPS |
| Encryption Algorithm |
SSL |
| Features |
Flow control, full duplex capability, Layer 2 switching, DHCP support, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, port mirroring, SNTP support, QoS, Jumbo Frames support, LLDP support |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP) |
| Processor |
1 x ARM Cortex-A9: 400 MHz |
| RAM |
128 MB SDRAM |
| Flash Memory |
16 MB |
| Expansion / Connectivity |
| Interfaces |
24 x 1000Base-T RJ-45
2 x SFP |
| Power |
| Power Device |
Internal power supply |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| Rack Mounting Kit |
Included |
| MTBF |
80 years |
| Compliant Standards |
FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, VCCI Class A, CAN/CSA-C22.2 No. 60950-1 |
| Dimensions & Weight |
| Width |
44.25 cm |
| Depth |
24.61 cm |
| Height |
4.39 cm |
| Weight |
2.72 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - advance parts replacement - lifetime - response time: next business day |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
15 - 95% (non-condensing) |
| Min Storage Temperature |
-40 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
15 - 95% (non-condensing) |
