| Marketing Description |

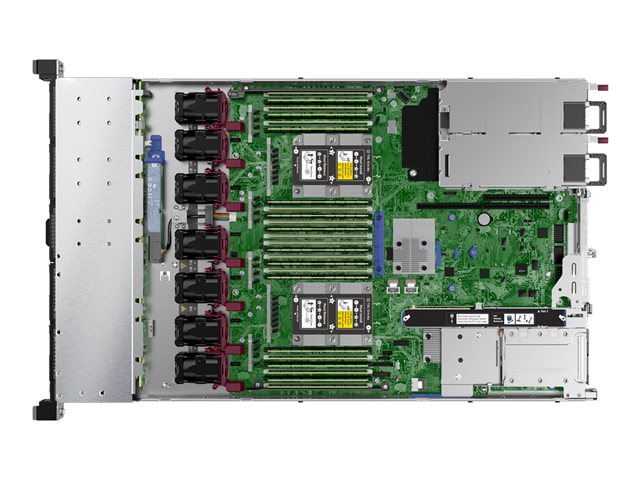

| Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise. |
| Product Features |
-
Robust performance
Equipped with Intel Xeon Silver processors and DDR4 SDRAM, the HPE ProLiant DL360 Gen10 delivers reliable and high-speed performance for demanding applications.
-
Flexible scalability
With support for up to 2 processors and advanced server scalability, this server is designed to grow with your business needs, ensuring a future-proof investment.
-
Efficient management
Integrated Lights-Out 5 (iLO 5) remote management controller offers advanced management capabilities, simplifying server setup, health monitoring, and maintenance.
-
Optimized for environments
Compliant with ASHRAE Class A3 and A4 standards, the server is designed to operate efficiently in a wide range of temperature and humidity conditions, ensuring reliability in various environments.
-
Enhanced expandability
Features include a microSD card slot (internal) for additional storage or OS boot purposes and flexible expansion slots, providing ample room for future upgrades and expansions.
|
| General |
| Type |
Server |
| Product Form Factor |
Rack-mountable - 1U |
| Built-in Devices |
Led panel |
| Embedded Security |
Trusted Platform Module (TPM) Security Chip |
| Server Scalability |
2-way |
| Hot-Swap Bays Qty |
8 |
| Localisation |
Region: Europe, Middle East, Africa |
| Processor / Chipset |
| CPU |
Intel Xeon Silver 4214R |
| Clock Speed |
2.4 GHz |
| Max Turbo Speed |
3.5 GHz |
| Number of Cores |
12-core |
| CPU Qty |
1 |
| Max CPU Qty |
2 |
| CPU Upgradability |
Upgradable |
| Processor Main Features |
Intel Turbo Boost Technology 2, Hyper-Threading Technology |
| CPU Socket |
FCLGA3647 Socket |
| Chipset Type |
Intel C621 |
| Cache Memory |
| Installed Size |
L3 Cache - 16.5 MB |
| Cache Per Processor |
16.5 MB |
| RAM |
| Installed Size |
32 GB (installed) / 1.54 TB (max) |
| Technology |
DDR4 SDRAM - Advanced ECC |
| Effective Memory Speed |
2400 MHz |
| Rated Memory Speed |
2933 MHz |
| Memory Specification Compliance |
PC4-23466 |
| Form Factor |
DIMM 288-pin |
| Slots |
12 (Total) / 11 (empty) |
| Features |
Dual rank, registered, HPE SmartMemory, mixing of different types of memory modules is not supported, 6-channel memory architecture, Online Spare Memory, slots 13 - 24 are available in two-processor configuration only |
| Configuration Features |
1 x 32 GB |
| RAM Supported |
3 TB Load-Reduced
1.54 TB registered
192 GB Non-Volatile
6 TB Persistent Memory |
| Hard Drive |
| Type |
No HDD |
| Storage Controller |
| Type |
1 x RAID - PCIe 4.0 x8 |
| Controller Interface Type |
Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Storage Controller Name |
Broadcom MegaRAID MR416i-a |
| Channel Qty |
16 |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Buffer Size |
4 GB |
| Optical Storage |
| Type |
No optical drive |
| Card Reader |
| Type |
Card reader |
| Supported Flash Memory Cards |
microSD |
| Monitor |
| Monitor Type |
None. |
| Graphics Controller |
| Video Memory |
16 MB |
| Video Interfaces |
VGA |
| Networking |
| Ethernet Ports |
4 x Gigabit Ethernet |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol |
SNMP 3, IPMI 2.0, SMASH CLP |
| Remote Management Controller |
Integrated Lights-Out 5 |
| Features |
Wake on LAN (WoL), PXE support |
| Expansion / Connectivity |
| Bays |
1 (total) / 1 (free) x external Universal Media Bay
8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Slots |
1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height
1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile
1 (total) / 1 (free) x FlexibleLOM - three-quarter-length, full-height (low-profile)
1 (total) / 1 (free) x microSD Card (internal) |
| Interfaces |
1 x HPE iLO - Type A (1 in front)
1 x HPE iLO - RJ-45 (1 rear)
5 x USB 3.0 (1 front, 2 rear, 2 internal)
1 x VGA (1 rear)
4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear) |
| Miscellaneous |
| Included Accessories |
5 x standard hot plug fans, SFF Easy install rails |
| Compliant Standards |
AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1 |
| Pricing Type |
Remarketed |
| Power |
| Device Type |
Power supply - hot-plug |
| Power Redundancy |
Optional |
| Power Redundancy Scheme |
1+1 (with optional power supply) |
| Installed Qty |
1 |
| Max Supported Qty |
2 |
| Voltage Required |
AC 100-240 V (50/60 Hz) |
| Power Provided |
800 Watt |
| 80 PLUS Certification |
80 PLUS Titanium |
| Operating System / Software |
| OS Provided |
No operating system |
| OS Certified |
CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5, SuSE Linux Enterprise Server 12 SP2, ClearOS |
| Software |
HPE Server UEFI |
| Sustainability Information |
| ENERGY STAR Certified |
Yes |
| ENERGY STAR Version |
3.0 |
| Dimensions & Weight |
| Width |
43.46 cm |
| Depth |
70.7 cm |
| Height |
4.29 cm |
| Weight |
13.04 kg |
| Environmental Parameters |
| Min Operating Temperature |
10 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
8 - 90% (non-condensing) |
