Изисква се абонамент за DNA на шасито на CISCO Catalyst 9600 Series 6 Slot

Изисква се абонамент за DNA на шасито на CISCO Catalyst 9600 Series 6 Slot

CISCO
SKU KXG0138447

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

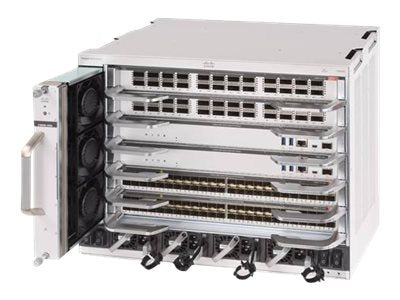

CISCO Catalyst 9600 Series 6 Slot Chassis DNA subscription required

Manufacturer CISCO
Manufacturer Part No C9606R

Marketing Description
Cisco Catalyst 9600 series switches are purpose-built for resiliency at scale. They provide comprehensive security and can help your organization grow at low total operational cost.
Product Features
  • Security everywhere
    Constantly learning, constantly protecting integrated security reduces your attack surface and helps you detect and stop threats.
  • Centralized management
    SD access and web UI help close IT skills gaps created by cloud, virtualization, and automation technologies.
General
Device Type Switch
Enclosure Type Side to side airflow rack-mountable 8U
Performance Switching capacity: up to 25.6 Tbps
Bandwidth per slot: 6.4 Tbps
Features Fan tray
Expansion / Connectivity
Expansion Slots 4 (total) / 4 (free) x line-card slot
2 (total) / 2 (free) x supervisor slot
Installed Modules Qty (Max) 0 (installed) / 6 (max)
Power
Power Device Internal power supply (not installed) - hot-plug
Max Supported Qty 4
Power Redundancy Optional
Power Redundancy Scheme N+1 (with optional power supply)
Voltage Required AC 120/230 V
Miscellaneous
MTBF 4,113,900 hours
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, RoHS, EN 50121-4, EN 300 386 V1.6.1, EN 55022 Class A, CNS 13438 Class A, EN 300 386, ETS 300 019-2-1 Class 1.2, ETS 300 019-2-2 Class 2.3, ETS 300 019-2-3 Class 3.2, KN35, KN32 Class A, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317
Dimensions & Weight
Width 44.2 cm
Depth 40.9 cm
Height 35.43 cm
Weight 31.31 kg
Manufacturer Warranty
Service & Support Limited warranty - replacement - lifetime - response time: next business day
Environmental Parameters
Min Operating Temperature -5 °C
Max Operating Temperature 45 °C
Humidity Range Operating 10 - 95% (non-condensing)
Min Storage Temperature -40 °C
Max Storage Temperature 75 °C
Humidity Range Storage 10 - 95% (non-condensing)
Compatibility Information
Designed For P/N: C9600X-LC-32CD
