| Marketing Description |

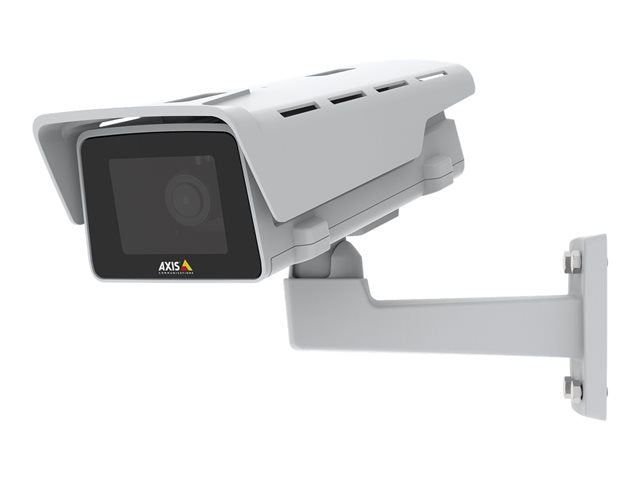

| This compact, outdoor-ready box camera delivers 2 MP resolution with superb image quality even in low light conditions. Designed as a visible deterrent, it helps discourage trespassing and other unwanted activities. |
| Product Features |
-
More bang for your buck
This affordable Axis M-line camera offers audio input allowing you to record video with sound. Thanks to support for PoE and redundant DC power, you get flexible installation, and your data is safeguarded in the event of a power outage. Axis Zipstream with support for H.264/H.265 significantly reduces bandwidth and storage requirements. Furthermore, it comes with AXIS object analytics preinstalled, so you can detect and classify humans and vehicles.
-
Great image quality even in low light
With 2 MP resolution at up to 30 fps, AXIS M1135-E Mk II delivers superb video quality even in low light conditions. Featuring Axis lightfinder it offers images in true colors even in low light. And, with Axis forensic WDR you get clarity even when there's both dark and light areas in the scene.
-
Designed for deterrence
This outdoor-ready camera comes enclosed in an IP66-, IK10- and NEMA 4X-rated casing to protect against water, corrosion, dust, and impacts. Designed to act as a deterrent, it lets potential offenders know you're watching and helps prevent unwanted activities. Furthermore, AXIS M1135-E Mk II provides a clearly visible, fixed angle of view, making it easy to see exactly where the camera's pointing and allowing you to record both audio and video in a precisely defined area. And, thanks to edge-to-edge technology it can be connected to Axis speakers, such as an Axis horn speaker.
|
| General |
| Device Type |
Network surveillance camera |
| Audio Support |
Yes: two-way audio capability |
| Audio Formats |
LPCM, AAC-LC, G.711, G.726, ADPCM, OPUS |
| Form Factor |
Box |
| Camera Mount Type |
Wall mount |
| Connectivity Technology |
Wired |
| Width |
24 cm |
| Depth |
37.2 cm |
| Height |
14.3 cm |
| Weight |
1.8 kg |
| Localisation |
Argentina, Australia, China, Japan, United Kingdom, United States, Brazil, Europe |
| Camera |
| Type |
Colour - Day&Night - fixed - outdoor |
| Digital Video Format |
H.264, H.265, AVC, HEVC, MPEG-4, MPEG-H Part 2, MJPEG |
| Max Digital Video Resolution |
1920 x 1080 |
| Motion Detection |
Yes |
| Video Modes |
1080p |
| Exposure Range |
2 sec - 1/33500 sec |
| Minimum Illumination |
0.15 lux - colour - F1.4 - 50 IRE
0.03 lux - B&W - F1.4 - 50 IRE
0.1 lux - colour - F1.4 - 30 IRE
0.02 lux - B&W - F1.4 - 30 IRE |
| Digital Video Capture Resolution |
1920 x 1080, 160 x 90 |
| Frame Rate (max) |
30 frames per second |
| RAM |
1024 MB |
| Flash Memory |
512 MB |
| Features |
Wide Dynamic Range (WDR), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, infrared cut filter, Forensic WDR, Machine learning processing unit (MLPU), Adaptive Bitrate (ABR), Variable Bitrate (VBR), auto gain control, brightness control, contrast control, digital PTZ function, exposure control, exposure zone, image mirror, image overlay, Privacy Mask Function, sharpness control, text overlay, video aspect ratio conversion, white balance, HTTPs encryption, IP address filtering, password protection, Axis Edge Vault, brute force delay protection, digest authentication, secure boot, signed firmware, TLS encryption protocol, user access log, Audio Detection, human detection, Line Crossing Detection, notification picture to E-mail, Vehicle Detection, NAS-Ready, active tampering alarm, Zipstream technology |
| Image Sensor |
| Type |
2 MP PS RGB CMOS 1/2.9" |
| Lens Construction |
| Type |
CS-mount - vari-focal |
| Optical Zoom |
3.5 x |
| Focal Length |
3 mm - 10.5 mm |
| Lens Iris |
F/1.4 auto iris (DC) |
| Horizontal Field of View (degree) |
33 - 90 |
| Vertical Field of View (degree) |
19 - 49 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
IPv4, IPv6, USGv6, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, DNS, DDNS, NTP, RTSP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT, Zeroconf, SNMP 1, SNMP 2c, SNMP 3, IGMPv2, IGMPv3 |
| Expansion / Connectivity |
| Ports |
LAN/power - RJ-45
Audio line-in/microphone - 3.5 mm jack |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
AXIS T94Q01A Wall Mount, connector kit, screw bit T30, screw bit T20 |
| Compliant Standards |
EMC, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, CAN ICES-3 Class A, NMB-3 Class A, VCCI Class A, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, CAN/CSA-C22.2 No. 62368-1, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 60950-22, IEC/EN/UL 60950-22, EN 50581, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, NEMA250 Type 4X, IEC/EN 62262 IK10, NEMA TS-2, NIST SP500-267, RCM |
| Colour |
White, NCS S 1002-B |
| Power |
| Power Requirements |
DC 10 - 28 V / PoE Class 3 |
| Software / System Requirements |
| Software Included |
Windows decoder 1-user licence |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years |
| Environmental Parameters |
| Min Operating Temperature |
-25 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 100% (non-condensing) |
