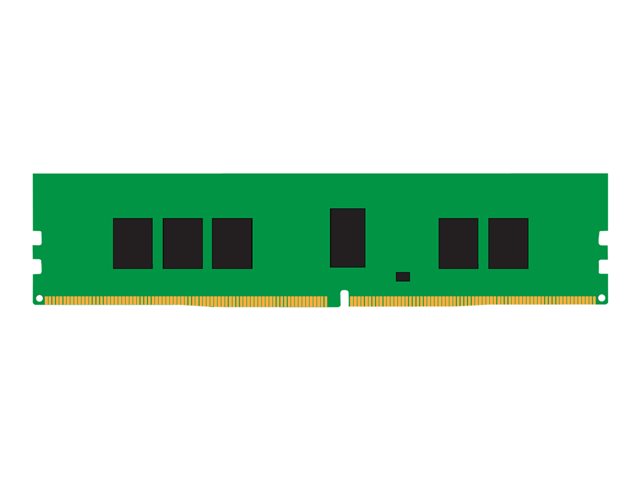

KINGSTON 8GB 2666MHz DDR4 ECC Reg CL19 DIMM 1Rx8 Hynix D IDT

KINGSTON 8GB 2666MHz DDR4 ECC Reg CL19 DIMM 1Rx8 Hynix D IDT

Kingston
SKU KXG0140743

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

KINGSTON 8GB 2666MHz DDR4 ECC Reg CL19 DIMM 1Rx8 Hynix D IDT

Manufacturer KINGSTON
Manufacturer Part No KSM26RS8/8HDI

Marketing Description
Kingston's KSM26RS8/8HDI is a 1G x 72-bit DDR4-2666 CL19 SDRAM (Synchronous DRAM) registered with parity, 1R x 8, ECC, memory module, based on nine 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2 V. Each 288-pin DIMM uses gold contact fingers.
Product Features
  • Supports ECC error correction and detection
  • Temperature sensor with integrated SPD
  • This product is in compliance with the RoHS directive
  • Per DRAM addressability is supported
  • Write CRC is supported at all speed grades
General
Capacity 8 GB
Upgrade Type Generic
Width 133 mm
Height 31.3 mm
Memory
Type DRAM memory module
Technology DDR4 SDRAM
Form Factor DIMM 288-pin
Module Height (inch) 1.23
Speed 2666 MHz (PC4-21300)
Latency Timings CL19 (19-19-19)
Data Integrity Check ECC
Features Temperature monitoring, single rank, On-Die Termination (ODT), Serial Presence Detect (SPD), sixteen banks, Data Cyclic Redundancy Check (CRC) support, registered with parity
Module Configuration 1024 X 72
Chips Organization 1024 x 8
Voltage 1.2 V
Lead Plating Gold
Miscellaneous
Compliant Standards RoHS, JEDEC
Manufacturer Warranty
Service & Support Limited lifetime warranty (Russia - 10 years)
