| Marketing Description |

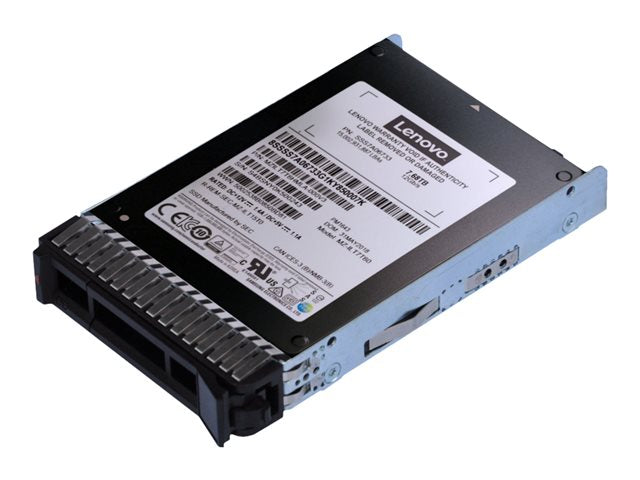

| The PM1643a Entry SAS 12Gb solid-state drives (SSDs) from Lenovo provide high-performance, reliable storage solutions for high-capacity enterprise applications. Designed for dense storage and with a 12Gb SAS interface, these drives feature all the capacity and performance that is needed to replace large numbers of 15K rpm and 10K rpm spinning disks and consolidate storage into tightly packed server configurations. |
| Product Features |
-
Robust durability
Engineered to withstand the toughest conditions, this solid state drive boasts a non-operating shock acceleration of 1500 g and a vibration acceleration of 20 g, ensuring data integrity even in the most demanding environments.
-
High-capacity storage
With a generous 960 GB capacity, this drive offers ample space for large datasets, making it a suitable choice for enterprise-level storage solutions.
-
Efficient performance
Featuring V-NAND Technology and an impressive data transfer rate of 1.2 GBps, this drive delivers fast and reliable performance for both read and write operations, enhancing overall system efficiency.
|
| General |
| Device Type |
Solid state drive - hot-swap |
| Capacity |
960 GB |
| NAND Flash Memory Type |
Triple-level cell (TLC) |
| Form Factor |
2.5" |
| Interface |
SAS 12Gb/s |
| Features |
End-to-end data protection, power loss data protection, Tagged Command Queuing (TCQ), V-NAND Technology, S.M.A.R.T. |
| Width |
70 mm |
| Depth |
100 mm |
| Height |
15 mm |
| Performance |
| Drive Writes Per Day (DWPD) |
1 |
| SSD Endurance |
1752 TB |
| Drive Transfer Rate |
1.2 GBps (external) |
| Internal Data Rate |
1000 MBps (read) / 1000 MBps (write) |
| 4KB Random Read |
230000 IOPS |
| 4KB Random Write |
40000 IOPS |
| Average Latency |
220 μs |
| Reliability |
| MTBF |
2,000,000 hours |
| Non-Recoverable Errors |
1 per 10^17 |
| Expansion & Connectivity |
| Interfaces |
1 x SAS 12 Gb/s |
| Compatible Bay |
2.5" |
| Power |
| Power Consumption |
9 Watt (read)
12 Watt (write) |
| Miscellaneous |
| Included Accessories |
Hot-plug tray |
| Compliant Standards |
UL, TUV, FCC, IC, CB, C-Tick, BSMI, KCC, VCCI, RoHS |
| Dimensions & Weight (Shipping) |
| Shipping Width |
13.3 cm |
| Shipping Depth |
17.4 cm |
| Shipping Height |
6.3 cm |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
70 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Shock Tolerance (non-operating) |
1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) |
20 g @ 10-2000 Hz |
| Compatibility Information |
| Designed For |
Lenovo ThinkAgile MX3330-F Appliance 7D19 (2.5")
Lenovo ThinkAgile MX3331-F Certified Node 7D67 (2.5")
Lenovo ThinkAgile VX Certified Node 7Y94 (2.5"), 7Z12 (2.5")
Lenovo ThinkAgile VX3320 Appliance 7Y93 (2.5")
Lenovo ThinkAgile VX3330 Appliance 7Z62 (2.5")
Lenovo ThinkAgile VX3331 7Z62 (2.5")
Lenovo ThinkAgile VX3530-G Appliance 7Z63 (2.5")
Lenovo ThinkAgile VX3575-G Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX3720 Appliance 7Y92 (2.5")
Lenovo ThinkAgile VX5575 Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX7520 Appliance 7Y94 (2.5")
Lenovo ThinkAgile VX7530 Appliance 7Z63 (2.5")
Lenovo ThinkAgile VX7531 Certified Node 7Z63 (2.5")
Lenovo ThinkAgile VX7575 Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX7576 Certified Node 7D43 (2.5")
Lenovo ThinkAgile VX7820 Appliance 7Z13 (2.5")
Lenovo ThinkSystem SD530 7X21 (2.5")
Lenovo ThinkSystem SN850 7X15 (2.5")
Lenovo ThinkSystem SR530 7X07 (2.5"), 7X08 (2.5")
Lenovo ThinkSystem SR550 7X03 (2.5"), 7X04 (2.5")
Lenovo ThinkSystem SR570 7Y02 (2.5"), 7Y03 (2.5"), 7Y04 (2.5")
Lenovo ThinkSystem SR590 7X98 (2.5"), 7X99 (2.5")
Lenovo ThinkSystem SR630 7X01 (2.5"), 7X02 (2.5")
Lenovo ThinkSystem SR630 V2 7Z71 (2.5")
Lenovo ThinkSystem SR635 7Y98 (2.5"), 7Y99 (2.5")
Lenovo ThinkSystem SR650 7X05 (2.5"), 7X06 (2.5")
Lenovo ThinkSystem SR650 V2 7D15 (2.5"), 7Z73 (2.5")
Lenovo ThinkSystem SR655 7Y00 (2.5"), 7Z01 (2.5")
Lenovo ThinkSystem SR665 7D2V (2.5"), 7D2W (2.5")
Lenovo ThinkSystem SR850 7X18 (2.5"), 7X19 (2.5")
Lenovo ThinkSystem SR860 7X69 (2.5"), 7X70 (2.5")
Lenovo ThinkSystem SR950 7X11 (2.5"), 7X12 (2.5"), 7X13 (2.5")
Lenovo ThinkSystem ST550 7X09 (2.5"), 7X10 |
