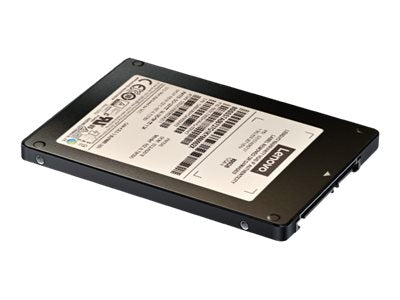

LENOVO ISG ThinkSystem 2.5inch PM1645a 800GB Mainstream SAS 12Gb Hot Swap SSD

LENOVO ISG ThinkSystem 2.5inch PM1645a 800GB Mainstream SAS 12Gb Hot Swap SSD

Lenovo
SKU KXG0142468

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

LENOVO DCG ThinkSystem 2.5inch PM1645a 800GB Mainstream SAS 12Gb Hot Swap SSD

Manufacturer LENOVO
Manufacturer Part No 4XB7A17062

Marketing Description
The ThinkSystem PM1645a Mainstream SAS 12Gb solid-state drives (SSDs) are high-performance SSDs suitable for a wide range of applications of running on ThinkSystem servers. Unlike SATA drives, the 12 Gb/s SAS interface on these drives supports full duplex data transfer for higher performance and enterprise-level error recovery for better availability.
Product Features
  • Robust durability
    Engineered to withstand tough conditions, the Lenovo ThinkSystem PM1645a Mainstream solid state drive has an impressive MTBF of 2,000,000 hours, ensuring reliability and longevity. Its robust design is complemented by a comprehensive range of compliance standards including BSMI, C-Tick, CB, FCC, IC, KCC, RoHS, TUV, UL, and VCCI, making it a reliable choice for any enterprise environment.
  • High performance
    With an internal data rate of 1000 MBps for both reading and writing operations, and 4KB random read and write IOPS of 230,000 and 90,000 respectively, this SSD delivers high-speed performance for rigorous enterprise applications. The drive's 800 GB capacity and 1.2 GBps data transfer rate further enhance its capability to handle large volumes of data efficiently.
  • Advanced features
    The Lenovo ThinkSystem PM1645a Mainstream SSD is equipped with advanced features such as end-to-end data protection, Tagged Command Queuing (TCQ), and power loss data protection. These features ensure the integrity and safety of your data, even in the event of unexpected power outages, making it a suitable solution for critical business operations.
General
Device Type Solid state drive - hot-swap
Capacity 800 GB
Form Factor 2.5"
Interface SAS 12Gb/s
Features End-to-end data protection, power loss data protection, Tagged Command Queuing (TCQ), S.M.A.R.T.
Width 70 mm
Depth 100 mm
Height 15 mm
Weight 140 g
Performance
Drive Writes Per Day (DWPD) 3
SSD Endurance 4380 TB
Drive Transfer Rate 1.2 GBps (external)
Internal Data Rate 1000 MBps (read) / 1000 MBps (write)
4KB Random Read 230000 IOPS
4KB Random Write 90000 IOPS
Average Latency 45 μs
Reliability
MTBF 2,000,000 hours
Non-Recoverable Errors 1 per 10^17
Expansion & Connectivity
Interfaces 1 x SAS 12 Gb/s
Compatible Bay 2.5"
Power
Power Consumption 9 Watt (read)
9 Watt (write)
Miscellaneous
Included Accessories Hot-plug tray
Compliant Standards UL, TUV, FCC, IC, CB, C-Tick, BSMI, KCC, VCCI, RoHS
Dimensions & Weight (Shipping)
Shipping Width 13.3 cm
Shipping Depth 17.4 cm
Shipping Height 6.3 cm
Manufacturer Warranty
Service & Support Limited warranty - replacement - 1 year
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 70 °C
Humidity Range Operating 5 - 95% (non-condensing)
Shock Tolerance (non-operating) 1500 g @ 0.5 ms
Vibration Tolerance (non-operating) 20 g @ 10-2000 Hz
Compatibility Information
Designed For Lenovo ThinkAgile HX1330 Appliance 7Z85 (2.5")
Lenovo ThinkAgile HX1331 Certified Node 7D52 (2.5")
Lenovo ThinkAgile HX2330 Appliance 7Z85 (2.5")
Lenovo ThinkAgile HX2331 Certified Node 7D52 (2.5")
Lenovo ThinkAgile HX3330 Appliance 7Z85 (2.5")
Lenovo ThinkAgile HX3331 Certified Node 7D52 (2.5")
Lenovo ThinkAgile HX3375 Appliance 7D5U (2.5")
Lenovo ThinkAgile HX3376 Certified Node 7D5U (2.5")
Lenovo ThinkAgile HX5530 Appliance 7Z82 (2.5")
Lenovo ThinkAgile HX5531 Certified Node 7Z84 (2.5")
Lenovo ThinkAgile HX7530 Appliance 7Z82 (2.5")
Lenovo ThinkAgile HX7531 Certified Node 7Z84 (2.5")
Lenovo ThinkAgile MX3330-F Appliance 7D19 (2.5")
Lenovo ThinkAgile MX3330-H Appliance 7D19 (2.5")
Lenovo ThinkAgile MX3331-F Certified Node 7D67 (2.5")
Lenovo ThinkAgile MX3331-H Certified Node 7D67 (2.5")
Lenovo ThinkAgile MX3530-H Hybrid Appliance 7D6B (2.5")
Lenovo ThinkAgile MX3531-H Hybrid Certified Node 7D66 (2.5")
Lenovo ThinkAgile VX Certified Node 7Y94 (2.5"), 7Z12 (2.5")
Lenovo ThinkAgile VX3320 Appliance 7Y93 (2.5")
Lenovo ThinkAgile VX3330 Appliance 7Z62 (2.5")
Lenovo ThinkAgile VX3331 7Z62 (2.5")
Lenovo ThinkAgile VX3530-G Appliance 7Z63 (2.5")
Lenovo ThinkAgile VX3575-G Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX5575 Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX7520 Appliance 7Y94 (2.5")
Lenovo ThinkAgile VX7530 Appliance 7Z63 (2.5")
Lenovo ThinkAgile VX7531 Certified Node 7Z63 (2.5")
Lenovo ThinkAgile VX7575 Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX7576 Certified Node 7D43 (2.5")
Lenovo ThinkAgile VX7820 Appliance 7Z13 (2.5")
Lenovo ThinkSystem SR630 V2 7Z71 (2.5")
Lenovo ThinkSystem SR650 V2 7D15 (2.5"), 7Z73 (2.5")
Lenovo ThinkSystem SR670 V2 7Z23 (2.5")
Lenovo ThinkSystem SR850 V2 7D32 (2.5")
Lenovo ThinkSystem SR860 V2 7Z60 (2.5")
Lenovo ThinkSystem ST650 V2 7Z74 (2.5"), 7Z75 (2.5")
