| Marketing Description |

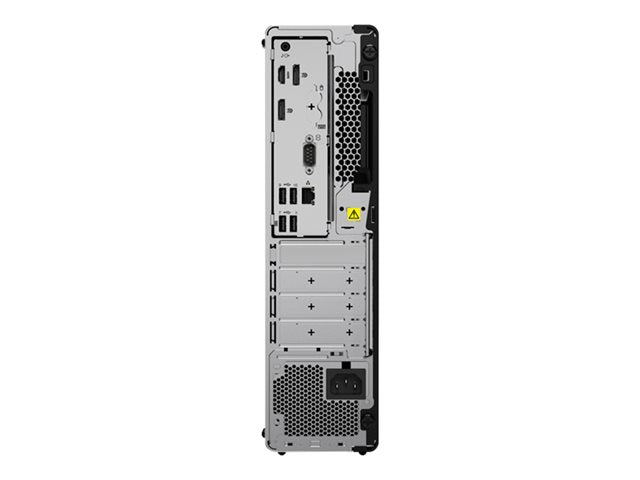

| The ThinkCentre M70s small form factor desktop PC is meant to do big jobs. It saves space while working as hard as larger tower units. Improve productivity and employee experience with its power and convenience, while its sustainable design keeps your company eco-friendly. |
| Product Features |
-
Tackle to-do lists
The ThinkCentre M70s small form factor PC was designed to handle all of your business tasks with efficiency.
-
Security inside and out
Lenovo's ThinkShield security solutions offer a combination of hardware and software working together to protect your system. The dTPM 2.0 chip encrypts your passwords and data, while BIOS-based Smart USB Protection prevents unauthorized access via peripheral. Physically secure the device itself with multiple features.
-
Ease of use, conveniently located
The compact ThinkCentre M70s will be out of the way on top of your desk, but should you want to keep it underneath, you can turn it on from the keyboard. It supports up to three independent monitors, with plenty of ports to support other peripherals. Should you need to further configure your PC, its expansion slots make upgrades a snap.
-
Space-saving style
The ThinkCentre M70s SFF has an extra compact footprint, and is easy to deploy. This PC will look great in any office, wherever you put it.
|
| General |
| Type |
Personal computer |
| Product Form Factor |
SFF |
| Built-in Devices |
Speaker |
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip |
| Colour |
Black |
| Localisation |
Language: Bulgarian / region: Bulgaria |
| Processor / Chipset |
| CPU |
Intel Core i5 (10th Gen) 10400 |
| Clock Speed |
2.9 GHz |
| Max Turbo Speed |
4.3 GHz |
| Number of Cores |
6-core |
| CPU Qty |
1 |
| Max CPU Qty |
1 |
| Chipset Type |
Intel H470 |
| Cache Memory |
| Installed Size |
12 MB |
| Cache Per Processor |
12 MB |
| RAM |
| Installed Size |
8 GB (installed) / 128 GB (max) |
| Technology |
DDR4 SDRAM - non-ECC |
| Effective Memory Speed |
2666 MHz |
| Rated Memory Speed |
2933 MHz |
| Form Factor |
DIMM 288-pin |
| Slots |
4 (Total) / 3 (empty) |
| Features |
Unbuffered, dual channel memory architecture |
| Configuration Features |
1 x 8 GB |
| Hard Drive |
| Type |
SSD - M.2 2280 |
| Capacity |
1 x 512 GB |
| Interface Type |
PCI Express 3.0 x4 |
| Features |
TCG Opal Encryption, NVM Express (NVMe) |
| Storage Controller |
| Type |
1 x SATA |
| Optical Storage |
| Type |
DVD-Writer - SATA |
| Card Reader |
| Type |
3 in 1 card reader |
| Supported Flash Memory Cards |
SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Monitor |
| Monitor Type |
None. |
| Graphics Controller |
| Graphics Processor |
Intel UHD Graphics 630 Shared Video Memory (UMA) |
| Video Interfaces |
HDMI, DisplayPort |
| Max Monitors Supported |
3 |
| Audio Output |
| Compliant Standards |
High Definition Audio |
| Input Device |
| Type |
Mouse, keyboard |
| Keyboard |
| Keyboard Name |
Lenovo Traditional Keyboard |
| Interface |
USB |
| Localization & Layout |
Bulgarian |
| Mouse |
| Mouse Name |
Lenovo Calliope Mouse |
| Interface |
USB |
| Networking |
| Ethernet Controller |
Intel I219-V |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features |
Wake on LAN (WoL) |
| Expansion / Connectivity |
| Bays |
1 (total) / 0 (free) x external 5.25" Slim Line
1 (total) / 1 (free) x internal 3.5" |
| Slots |
1 (total) / 1 (free) x PCIe 3.0 x16 - low-profile
1 (total) / 1 (free) x PCIe 3.0 x1 - low-profile
2 (total) / 1 (free) x M.2 Card |
| Interfaces |
2 x USB 3.2 Gen 2 (2 in front)
2 x USB 3.2 Gen 1 (2 in front)
1 x USB-C 3.2 Gen 1 (1 in front)
1 x microphone (1 in front)
1 x headphones/microphone (1 in front)
4 x USB 2.0
1 x serial
1 x LAN (Gigabit Ethernet)
2 x DisplayPort
1 x HDMI
1 x audio line-out |
| Miscellaneous |
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch |
| Security Slot Type |
Kensington security slot |
| Compliant Standards |
RoHS, Energy-Related Products (ErP) Lot 3 |
| Manufacturer Selling Program |
Lenovo TopSeller |
| Power |
| Device Type |
Power supply |
| Voltage Required |
AC 100-240 V (50/60 Hz) |
| Power Provided |
180 Watt |
| Efficiency |
85% |
| Operating System / Software |
| OS Provided |
Windows 10 Pro 64-bit Edition |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years - on-site |
| Dimensions & Weight |
| Width |
9.3 cm |
| Depth |
29.8 cm |
| Height |
34 cm |
| Weight |
5.3 kg |
| Environmental Parameters |
| Min Operating Temperature |
10 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
20 - 80% (non-condensing) |
