| Marketing Description |

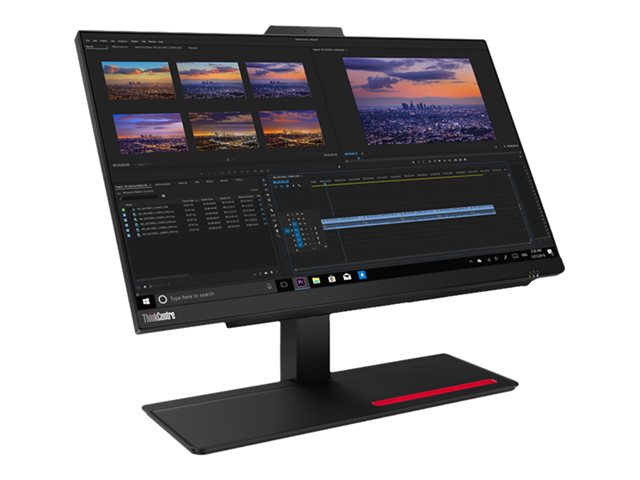

| The ThinkCenter M90a Gen 2 all-in-one features a smarter, sleeker, and more secure desktop. Built on the advanced platform and powered by outstanding processors, this desktop delivers speedy responsiveness and manageability. What's more, it's ideal for the front office with its adjustable display, cable-management, and Dolby Atmos speakers with noise-canceling mics. |
| Product Features |
-
Smarter security
The ThinkCenter M90a Gen 2 all-in-one PC includes the ThinkShield security solution for comprehensive, end-to-end protection of critical data and business technology. Smart USB ports prevent unauthorized people from uploading files, while a chassis intrusion switch detects any attempts to remove the system cover. Trusted Platform Module encrypts your data and your passwords. And biometrics let you use your face to log in with the optional hybrid IR camera.
-
Clean design
Cleanliness and comfort clear the mind. The ThinkCenter M90 Gen 2 all-in-one's stand supports neat cable management with integrated cable routing, cable guide, and cable cover to keep workspaces uncluttered.
-
Give productivity a boost
With the advanced platform that's built for business, you'll have the assurance that you're getting everything you need to run productively, more securely, and cost-effectively, 24/7 with a remote manageability. 5M camera and Dolby Atmos for a better video conference experience.
-
Handles the unexpected
From the Arctic wilderness to desert dust storms, from temperature extremes to vibrations and shocks, you can trust your ThinkCenter M90a Gen 2 all-in-one will handle whatever life throws its way.
-
Cooler and quieter
With Intelligent Cooling Engine (ICE) 4.0, the M90a Gen 2 AIO delivers unparalleled efficiency using three different modes. You can choose to bump up your power with a 15% increase, or opt for a quieter experience that runs 5 decibels lower. Or go with maximum cooling to prevent your system from running hot.
|
| General |
| Platform Technology |
Intel vPro Platform |
| Type |
Personal computer |
| Product Form Factor |
All-in-one - with Full Function Monitor stand |
| Built-in Devices |
Stereo speakers |
| Embedded Security |
Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Colour |
Black |
| Localisation |
Language: Bulgarian |
| Processor / Chipset |
| CPU |
Intel Core i5 (11th Gen) 11500 |
| Clock Speed |
2.7 GHz |
| Max Turbo Speed |
4.6 GHz |
| Number of Cores |
6-core |
| CPU Qty |
1 |
| Max CPU Qty |
1 |
| Chipset Type |
Intel Q570 |
| Cache Memory |
| Installed Size |
12 MB |
| Cache Per Processor |
12 MB |
| RAM |
| Installed Size |
8 GB (installed) / 64 GB (max) |
| Technology |
DDR4 SDRAM |
| Effective Memory Speed |
3200 MHz |
| Rated Memory Speed |
3200 MHz |
| Form Factor |
SO-DIMM 260-pin |
| Slots |
2 (Total) / 1 (empty) |
| Features |
Dual channel memory architecture |
| Configuration Features |
1 x 8 GB |
| Hard Drive |
| Type |
SSD - M.2 2280 |
| Capacity |
1 x 256 GB |
| Interface Type |
PCI Express x4 |
| Features |
TCG Opal Encryption, NVM Express (NVMe) |
| Storage Controller |
| Type |
1 x SATA |
| RAID Level |
RAID 0, RAID 1 |
| Optical Storage |
| Type |
DVD-Writer |
| Card Reader |
| Type |
3 in 1 card reader |
| Monitor |
| Monitor Type |
LED - IPS |
| Diagonal Size |
23.8" |
| Native Resolution |
1920 x 1080 (Full HD) |
| Widescreen Display |
Yes |
| Monitor Features |
Anti-glare |
| Graphics Controller |
| Graphics Processor |
AMD Radeon 630 |
| Video Memory |
2 GB GDDR5 SDRAM |
| Video Interfaces |
DisplayPort |
| Max Monitors Supported |
2 |
| Audio Output |
| Compliant Standards |
High Definition Audio, Dolby Atmos |
| Speakers Included |
2 x right / left channel |
| Camera |
| Camera |
Yes |
| Resolution (MP) |
5 Megapixel |
| Features |
IR/RGB camera, ThinkShutter camera privacy |
| Input Device |
| Type |
Mouse, keyboard |
| Keyboard |
| Keyboard Name |
Lenovo Calliope Keyboard |
| Interface |
USB |
| Localization & Layout |
Bulgarian |
| Mouse |
| Mouse Name |
Lenovo Calliope Mouse |
| Interface |
USB |
| Audio Input |
| Type |
Dual array microphone |
| Networking |
| Ethernet Controller |
Intel I219-LM |
| Wireless LAN Supported |
Yes |
| Wireless NIC |
Intel Wireless-AC 9560 |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.1 |
| Features |
Wake on LAN (WoL), dual stream (2x2) |
| Compliant Standards |
DASH |
| Expansion / Connectivity |
| Bays |
1 (total) / 0 (free) x external 5.25" Slim Line
2 (total) / 2 (free) x internal 2.5" |
| Slots |
1 (total) / 0 (free) x M.2 Card (for WLAN)
1 (total) / 0 (free) x M.2 Card (for SSD) |
| Interfaces |
4 x USB 3.2 Gen 1
1 x DisplayPort input/output combo
1 x LAN (Gigabit Ethernet)
2 x USB 3.2 Gen 2 (2 side)
1 x USB-C 3.2 Gen 2 (1 side) (data transfer, 5V 3A charging)
1 x headphones/microphone (1 side) |
| Miscellaneous |
| Included Accessories |
VESA mounting kit |
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately) |
| Security Slot Type |
Kensington security slot |
| VESA Mounting Interface |
100 x 100 mm |
| Compliant Standards |
RoHS, TUV Rheinland Low Blue Light Certification, Energy-Related Products (ErP) Lot 3, TUV Rheinland Eye Comfort Certification, TUV Rheinland Ultra Low Noise Certification, MIL-STD-810H |
| Manufacturer Selling Program |
Lenovo TopSeller |
| Power |
| Device Type |
Power adapter |
| Voltage Required |
AC 100-240 V (50/60 Hz) |
| Power Provided |
170 Watt |
| Efficiency |
89% |
| Operating System / Software |
| OS Provided |
Windows 10 Pro 64-bit Edition English |
| Sustainability Information |
| EPEAT Compliant |
EPEAT Silver |
| ENERGY STAR Certified |
Yes |
| ENERGY STAR Version |
8.0 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years - on-site |
| Dimensions & Weight |
| Dimensions & Weight Details |
54.1 cm - 20 cm - 41.42 cm - 7.84 kg - with stand (lowest position)
54.1 cm - 20 cm - 49.42 cm - 7.84 kg - with stand (highest position) |
| Width |
54.1 cm |
| Depth |
20 cm |
| Height |
41.42 cm |
| Weight |
7.84 kg |
| Environmental Parameters |
| Min Operating Temperature |
5 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
20 - 80% |
