| Marketing Description |

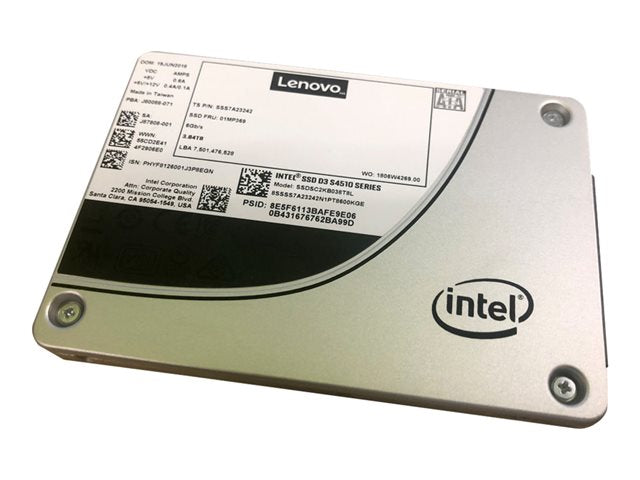

| The Intel S4510 Entry SATA solid state drives (SSDs) for Lenovo servers use Intel 64-layer 3D NAND TLC Flash Memory technology with a 6 Gbps SATA interface to provide an affordable solution with reliable performance. These drives offer improved performance and significantly improved endurance. The S4510 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics. |
| Product Features |
-
Enhanced durability
Built to withstand the rigors of daily use, this solid state drive boasts a shock acceleration operating tolerance of 1000 g and a non-operating vibration acceleration of 3.13 g, ensuring your data remains safe even in the most demanding conditions.
-
Efficient performance
With an internal data rate of 560 MBps for reading and 290 MBps for writing, coupled with a 4KB random read of 85000 IOPS and a write of 17000 IOPS, this drive delivers swift and reliable performance for all your storage needs.
-
Advanced security
Equipped with 256-bit AES hardware encryption, this solid state drive offers high-level security for your data, ensuring peace of mind with every use.
-
Optimized for endurance
Featuring Standard Endurance Technology (SET) and an SSD endurance of 900 TB, this drive is designed for long-term reliability, making it an ideal choice for intensive workloads.
|
| General |
| Device Type |
Solid state drive - hot-swap |
| Capacity |
240 GB |
| Hardware Encryption |
Yes |
| Encryption Algorithm |
256-bit AES |
| NAND Flash Memory Type |
3D triple-level cell (TLC) |
| Form Factor |
3.5" |
| Interface |
SATA 6Gb/s |
| Features |
Standard Endurance Technology (SET), Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, End-to-end data protection, 3D NAND Technology, S.M.A.R.T. |
| Weight |
63 g |
| Performance |
| Drive Writes Per Day (DWPD) |
2.1 |
| SSD Endurance |
900 TB |
| Drive Transfer Rate |
600 MBps (external) |
| Internal Data Rate |
560 MBps (read) / 290 MBps (write) |
| 4KB Random Read |
85000 IOPS |
| 4KB Random Write |
17000 IOPS |
| Average Latency |
36 μs |
| Reliability |
| MTBF |
2,000,000 hours |
| Non-Recoverable Errors |
1 per 10^17 |
| Expansion & Connectivity |
| Interfaces |
1 x SATA 6 Gb/s |
| Compatible Bay |
3.5" |
| Power |
| Power Consumption |
2.4 Watt (typical) |
| Miscellaneous |
| Included Accessories |
Hot-plug tray |
| Compliant Standards |
FCC CFR47 Part 15 B Class B, CAN/CSA-CEI/IEC CISPR 22:02, EN55024:1998, EN55022:2006, EN 60950-1 Second Edition, UL/CSA60950-1 (2nd Edition), LVD 2006/95/EC, AS/NZS 3584, BSMI CNS 13438, KCC Article 11.1, RoHS 2011/65/EU, WEEE 2002/96/EC |
| Dimensions & Weight (Shipping) |
| Shipping Width |
25.7 cm |
| Shipping Depth |
19.3 cm |
| Shipping Height |
9.5 cm |
| Shipping Weight |
484 g |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
70 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Shock Tolerance (operating) |
1000 g @ 0.5 ms |
| Vibration Tolerance (operating) |
2.17 g @ 5-700 Hz |
| Vibration Tolerance (non-operating) |
3.13 g @ 5-800 Hz |
| Compatibility Information |
| Designed For |
Lenovo ThinkAgile VX 1SE Certified Node 7Z58 (3.5")
Lenovo ThinkAgile VX5575 Integrated System 7D43 (3.5")
Lenovo ThinkAgile VX7575 Integrated System 7D43 (3.5")
Lenovo ThinkAgile VX7576 Certified Node 7D43 (3.5")
Lenovo ThinkSystem SR250 (3.5")
Lenovo ThinkSystem SR530 (3.5")
Lenovo ThinkSystem SR550 (3.5")
Lenovo ThinkSystem SR570 (3.5")
Lenovo ThinkSystem SR590 (3.5")
Lenovo ThinkSystem SR630 (3.5")
Lenovo ThinkSystem SR630 V2 7Z71 (3.5")
Lenovo ThinkSystem SR650 (3.5")
Lenovo ThinkSystem SR650 V2 7D15 (3.5"), 7Z73 (3.5")
Lenovo ThinkSystem SR665 7D2W (3.5")
Lenovo ThinkSystem SR670 V2 7Z23 (3.5")
Lenovo ThinkSystem ST250 (3.5")
Lenovo ThinkSystem ST550 (3.5")
Lenovo ThinkSystem ST650 V2 7Z74 (3.5"), 7Z75 (3.5") |
