| Marketing Description |

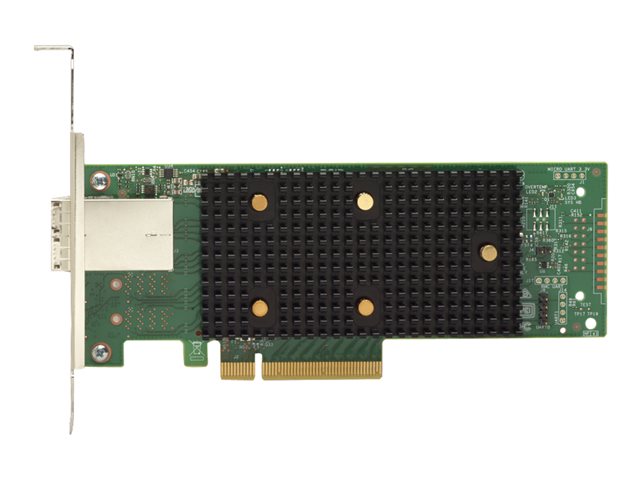

| The Lenovo ThinkSystem 430-8e is a high performance host bus adapter for external storage connectivity in ThinkSystem servers. |
| Product Features |
- PCIe 3.0 host interface
- PCI low profile
- Support for external storage systems and tape backup units
- High performance architecture with very deep queue depth
- Advanced power management support
- S.M.A.R.T. support
|
| General |
| Device Type |
Storage controller - plug-in card - low profile |
| Host Bus |
PCIe 3.0 x8 |
| Storage Controller |
| Interface |
SATA / SAS 12Gb/s |
| Data Transfer Rate |
12 Gbit/s |
| Supported Devices |
Hard drive, solid state drive |
| Channel Qty |
8 |
| Max Storage Devices Qty |
512 |
| Processor |
LSI LSISAS3408 |
| Expansion / Connectivity |
| Interfaces |
2 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644) (external) |
| Miscellaneous |
| Features |
DDF compliant Configuration on Disk (COD), Cyclical Redundancy Check (CRC), S.M.A.R.T. support |
| Compliant Standards |
EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC Part 15 A, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950 |
| Software / System Requirements |
| OS Required |
SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 12 with Xen, Microsoft Windows Server 2016, VMware vSphere 6.5 (ESXi) |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
55 °C |
| Humidity Range Operating |
20 - 90% (non-condensing) |
| Compatibility Information |
| Designed For |
Lenovo ThinkSystem SD530
Lenovo ThinkSystem SR250
Lenovo ThinkSystem SR530
Lenovo ThinkSystem SR550
Lenovo ThinkSystem SR570
Lenovo ThinkSystem SR590
Lenovo ThinkSystem SR630
Lenovo ThinkSystem SR645 7D2X
Lenovo ThinkSystem SR650
Lenovo ThinkSystem SR650 V2 7Z73
Lenovo ThinkSystem SR665 7D2V, 7D2W
Lenovo ThinkSystem SR670 7Y37
Lenovo ThinkSystem SR670 V2 7Z23
Lenovo ThinkSystem SR850
Lenovo ThinkSystem SR850 V2 7D32
Lenovo ThinkSystem SR860
Lenovo ThinkSystem SR950
Lenovo ThinkSystem ST250
Lenovo ThinkSystem ST50
Lenovo ThinkSystem ST550
Lenovo ThinkSystem ST650 V2 7Z74, 7Z75 |
