| Marketing Description |

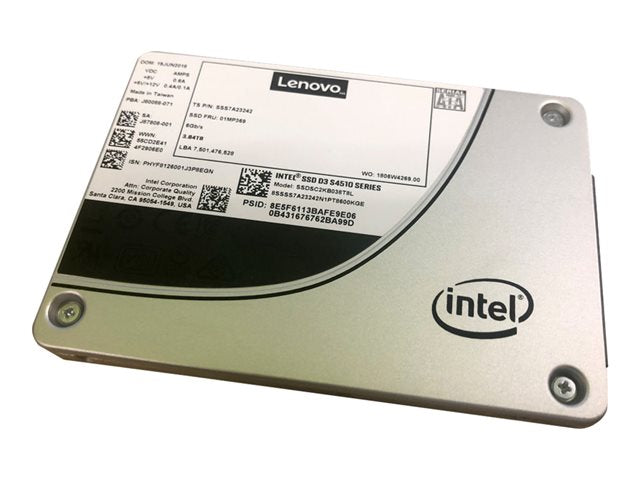

| The Intel S4510 Entry SATA solid-state drives (SSDs) for Lenovo servers use Intel 64-layer 3D NAND TLC Flash Memory technology with a 6 Gbps SATA interface to provide an affordable solution with industry leading performance. Compared with the Intel S4500 series, these drives offer improved performance and significantly improved endurance. The S4510 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics. |
| Product Features |
-
Enhanced durability
With a mean time between failures (MTBF) of 2,000,000 hours, the Lenovo S4510 Entry SSD offers exceptional reliability and durability, ensuring long-term performance and stability for critical data.
-
Robust data protection
Featuring 256-bit AES hardware encryption, end-to-end data path protection, and enhanced power loss data protection, this SSD safeguards your data against various threats and unexpected power outages.
-
High performance
Boasting impressive speeds with an internal data rate of 560 MBps for reading and 510 MBps for writing, alongside 3D NAND technology, the Lenovo S4510 Entry SSD delivers swift and efficient data access and transfer rates.
-
Energy efficient
Operating with a typical power consumption of only 2.9 watts, this solid state drive combines high performance with energy efficiency, reducing operational costs and environmental impact.
-
Optimized for harsh environments
Designed to withstand extreme temperatures and harsh operating conditions, this SSD operates reliably within a wide range of humidity and temperature, ensuring consistent performance wherever deployed.
|
| General |
| Device Type |
Solid state drive - hot-swap |
| Capacity |
480 GB |
| Hardware Encryption |
Yes |
| Encryption Algorithm |
256-bit AES |
| NAND Flash Memory Type |
3D triple-level cell (TLC) |
| Form Factor |
2.5" |
| Interface |
SATA 6Gb/s |
| Features |
Standard Endurance Technology (SET), Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, End-to-end data protection, 3D NAND Technology, S.M.A.R.T. |
| Weight |
63 g |
| Performance |
| Drive Writes Per Day (DWPD) |
1.4 |
| SSD Endurance |
1.2 PB |
| Drive Transfer Rate |
600 MBps (external) |
| Internal Data Rate |
560 MBps (read) / 510 MBps (write) |
| 4KB Random Read |
90000 IOPS |
| 4KB Random Write |
19000 IOPS |
| Average Latency |
36 μs |
| Reliability |
| MTBF |
2,000,000 hours |
| Non-Recoverable Errors |
1 per 10^17 |
| Expansion & Connectivity |
| Interfaces |
1 x SATA 6 Gb/s |
| Compatible Bay |
2.5" |
| Power |
| Power Consumption |
2.9 Watt (typical) |
| Miscellaneous |
| Included Accessories |
Hot-plug tray |
| Compliant Standards |
FCC CFR47 Part 15 B Class B, CAN/CSA-CEI/IEC CISPR 22:02, EN55024:1998, EN55022:2006, EN 60950-1 Second Edition, UL/CSA60950-1 (2nd Edition), LVD 2006/95/EC, AS/NZS 3584, BSMI CNS 13438, KCC Article 11.1, RoHS 2011/65/EU, WEEE 2002/96/EC |
| Dimensions & Weight (Shipping) |
| Shipping Width |
17.4 cm |
| Shipping Depth |
13.3 cm |
| Shipping Height |
6.3 cm |
| Shipping Weight |
434 g |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
70 °C |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| Shock Tolerance (operating) |
1000 g @ 0.5 ms |
| Vibration Tolerance (operating) |
2.17 g @ 5-700 Hz |
| Vibration Tolerance (non-operating) |
3.13 g @ 5-800 Hz |
| Compatibility Information |
| Designed For |
Lenovo ThinkAgile MX3330-F Appliance 7D19 (2.5")
Lenovo ThinkAgile MX3331-F Certified Node 7D67 (2.5")
Lenovo ThinkAgile VX 1SE Certified Node 7Z58 (2.5")
Lenovo ThinkAgile VX Certified Node 7Y94 (2.5")
Lenovo ThinkAgile VX1320 Appliance 7Z58 (2.5")
Lenovo ThinkAgile VX3320 Appliance 7Y93 (2.5")
Lenovo ThinkAgile VX3330 Appliance 7Z62 (2.5")
Lenovo ThinkAgile VX3331 7Z62 (2.5")
Lenovo ThinkAgile VX3520-G Appliance 7Y94 (2.5")
Lenovo ThinkAgile VX3530-G Appliance 7Z63 (2.5")
Lenovo ThinkAgile VX3575-G Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX3720 Appliance 7Y92 (2.5")
Lenovo ThinkAgile VX5575 Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX7520 Appliance 7Y94 (2.5")
Lenovo ThinkAgile VX7530 Appliance 7Z63 (2.5")
Lenovo ThinkAgile VX7531 Certified Node 7Z63 (2.5")
Lenovo ThinkAgile VX7575 Integrated System 7D43 (2.5")
Lenovo ThinkAgile VX7576 Certified Node 7D43 (2.5")
Lenovo ThinkSystem SD530 (2.5")
Lenovo ThinkSystem SN550 (2.5")
Lenovo ThinkSystem SN850 (2.5")
Lenovo ThinkSystem SR250 (2.5"), 7Y51
Lenovo ThinkSystem SR530 (2.5"), 7X08
Lenovo ThinkSystem SR550 (2.5")
Lenovo ThinkSystem SR570 (2.5")
Lenovo ThinkSystem SR590 (2.5"), 7X99
Lenovo ThinkSystem SR630 (2.5"), 7X02
Lenovo ThinkSystem SR630 V2 7Z71
Lenovo ThinkSystem SR645 7D2X
Lenovo ThinkSystem SR650 (2.5"), 7X06
Lenovo ThinkSystem SR650 V2 7D15 (2.5"), 7Z73
Lenovo ThinkSystem SR665 7D2V, 7D2W (2.5")
Lenovo ThinkSystem SR670 V2 7Z23 (2.5")
Lenovo ThinkSystem SR850 (2.5")
Lenovo ThinkSystem SR850 V2 7D32 (2.5")
Lenovo ThinkSystem SR860 (2.5")
Lenovo ThinkSystem SR860 V2 7Z60 (2.5")
Lenovo ThinkSystem SR950 (2.5")
Lenovo ThinkSystem ST250 (2.5")
Lenovo ThinkSystem ST550 (2.5"), 7X10
Lenovo ThinkSystem ST650 V2 7Z74, 7Z75 (2.5") |
