| Marketing Description |

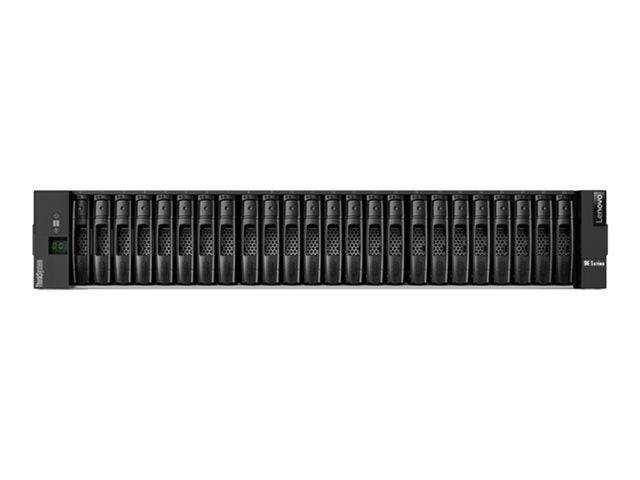

| Lenovo ThinkSystem DE2000H is a low-cost, hybrid storage system that is designed to provide performance, simplicity, capacity, security, and high availability for small to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE2000H is a perfect fit for small offices and remote and branch offices of large enterprises that run a wide range of workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications. |
| Product Features |
-
Efficient power management
The Lenovo ThinkSystem DE2000H Hybrid is equipped with an internal power supply featuring 80 PLUS Platinum certification, ensuring high energy efficiency and reliability. With a power redundancy feature and a total power provision of 913 W, this system maintains uninterrupted performance even in demanding environments.
-
Advanced storage capabilities
This model boasts a robust storage configuration, supporting up to 24 2.5" SFF hot-swap drives, facilitated by Serial Attached SCSI 3 interface for high-speed data access and transfer rates up to 1.2 GB/s. The inclusion of RAID levels 0, 1, 10, 3, 5, and 6 offers flexible data protection and optimization options to meet various storage needs.
-
Optimized environmental adaptability
Designed to operate within a wide range of temperatures from 10°C to 40°C and humidity levels from 8% to 90% (non-condensing), the Lenovo ThinkSystem DE2000H Hybrid ensures reliability and durability in diverse operational conditions, making it an ideal choice for different business environments.
-
Comprehensive compliance standards
Meeting a broad spectrum of compliance standards including AS/NZS CISPR22 Class A, FCC Part 15 A, and more, this device adheres to stringent regulations, ensuring compatibility and safety across various markets. Its commitment to standards underscores its quality and reliability for business-critical operations.
-
Innovative features for enhanced performance
With Dynamic Disk Pool (DDP) Technology and application snapshots, the Lenovo ThinkSystem DE2000H Hybrid offers advanced data management and protection features. These capabilities allow for efficient disk utilization and easy data recovery, enhancing overall system performance and data integrity.
|
| General |
| Device Type |
Hard drive array |
| Enclosure Type |
Rack-mountable - 2U |
| Localisation |
English / Worldwide (excluding China, Japan) |
| Chassis |
| Supported Devices / Modules Qty |
24 |
| Supported Drives |
SAS-3 |
| Storage |
| HDD Array External Interface |
16Gb Fibre Channel, SAS 12Gb/s |
| Storage Controller |
| Type |
RAID |
| Interface Type |
SAS 12Gb/s |
| Data Transfer Rate |
1.2 GBps |
| Cache / Buffer Size (Max) |
16 GB |
| RAID Level |
RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10 |
| Hard Drive |
| Type |
No HDD |
| Expansion / Connectivity |
| Expansion Bays |
24 (total) / 24 (free) x hot-swap - 2.5" SFF |
| Expansion Slots |
2 (total) / 0 (free) x expansion slot |
| Interfaces |
2 x SAS 12Gb/s (output) - 36 pin 4x Mini SAS HD (SFF-8644)
2 x 16Gb Fibre Channel - SFP+
1 x Ethernet 1000 (management) - RJ-45
1 x serial (management) - 5 pin Micro-USB Type A
1 x serial (management) - RJ-45
4 x SAS 12Gb/s (input) - 36 pin 4x Mini SAS HD (SFF-8644) |
| Miscellaneous |
| Features |
Application snapshots, Dynamic Disk Pool (DDP) Technology |
| Cables Included |
1 x micro-USB to USB cable - 2 m
2 x power cable (C13-C14) - 1.5 m |
| Compliant Standards |
BSMI CNS 13438 Class A, NOM, EN55024, ICES-003 Class A, UL 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, CECP, CEL, Directive 2011/65/EU, VCCI Class A, EAC, GB 4943.1, KN32, KN35, CNS 14336-1, EN 55032 Class A, IEC/EN 60950-1, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A |
| Power |
| Power Device |
2 x internal power supply - hot-plug |
| Max Supported Qty |
2 |
| Power Redundancy |
Yes |
| Voltage Required |
AC 120/230 V - 50/60 Hz |
| Power Provided |
913 Watt |
| 80 PLUS Certification |
80 PLUS Platinum |
| Dimensions & Weight |
| Width |
44.9 cm |
| Depth |
55.3 cm |
| Height |
8.5 cm |
| Weight |
27.6 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years - on-site |
| Environmental Parameters |
| Min Operating Temperature |
10 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
8 - 90% (non-condensing) |
