| Marketing Description |

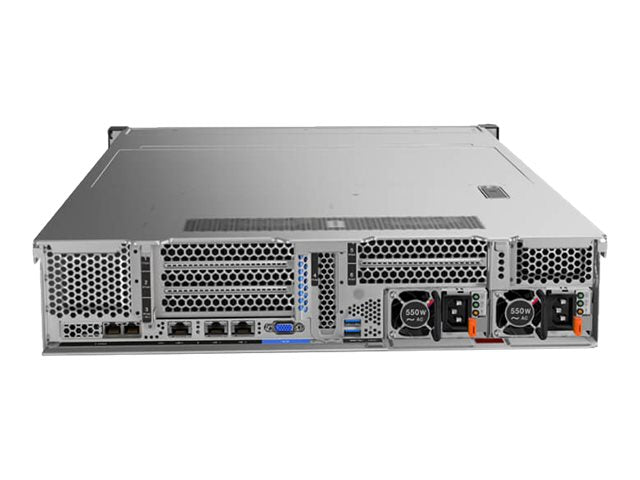

Designed for rack environments that require peak two-socket performance and sizeable memory capacity, the Lenovo ThinkSystem SR590 can tackle cloud and Big Data environments for medium and large enterprises. The SR590 is a balanced, midrange rack server that also works well for small-scale virtualization, collaboration and productivity applications, as well as caching and logging.
The SR590 includes many features that contribute to the reliability and security of the server and your all-important data. These features result in an ideal server for proxy caching, cloud, CRM, security, virtualization, media streaming, Big Data, databases, database-driven Web serving, mail serving, and many other workloads. |
| Product Features |
-
Powerful and balanced
Designed for rack environments that require peak two-socket performance and sizeable memory capacity, the Lenovo ThinkSystem SR590 can tackle cloud and Big Data environments for medium and large enterprises. The SR590 is a balanced, midrange rack server that also works well for small-scale virtualization, collaboration and productivity applications, as well as caching and logging.
-
Reliable and secure
The SR590 includes many features that contribute to the reliability and security of the server and your all-important data. These features result in an ideal server for proxy caching, cloud, CRM, security, virtualization, media streaming, Big Data, databases, database-driven Web serving, mail serving, and many other workloads.
|
| General |
| Type |
Server - AI Ready |
| Product Form Factor |
Rack-mountable - 2U |
| Embedded Security |
Trusted Platform Module (TPM 1.2 and TPM 2.0) |
| Server Scalability |
2-way |
| Localisation |
Region: EMEA |
| Processor / Chipset |
| CPU |
Intel Xeon Silver 4210R |
| Clock Speed |
2.4 GHz |
| Max Turbo Speed |
3.2 GHz |
| Number of Cores |
10-core |
| CPU Qty |
1 |
| Max CPU Qty |
2 |
| Processor Main Features |
Hyper-Threading Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2 |
| Chipset Type |
Intel C622 |
| Cache Memory |
| Installed Size |
13.75 MB |
| Cache Per Processor |
13.75 MB |
| RAM |
| Installed Size |
16 GB |
| Technology |
DDR4 SDRAM |
| Effective Memory Speed |
2400 MHz |
| Rated Memory Speed |
2933 MHz |
| Form Factor |
DIMM 288-pin |
| Slots |
16 (Total) / 15 (empty) |
| Features |
Registered, Memory Mirroring, Memory Sparing, dual rank, mixing of different types of memory modules is not supported, TruDDR4, Patrol Scrubbing, Demand Scrubbing |
| Configuration Features |
1 x 16 GB |
| RAM Supported |
2 TB - Memory Mode - Optane DC Persistent
2.75 TB - App Direct mode - registered
1 TB registered |
| Hard Drive |
| Type |
No HDD |
| Optical Storage |
| Type |
No optical drive |
| Monitor |
| Monitor Type |
None. |
| Graphics Controller |
| Graphics Processor |
Matrox G200 |
| Video Memory |
16 MB |
| Video Interfaces |
VGA |
| Networking |
| Ethernet Ports |
2 x Gigabit Ethernet |
| Data Link Protocol |
Gigabit Ethernet |
| Remote Management Controller |
XClarity Controller (XCC) Enterprise |
| Expansion / Connectivity |
| Slots |
1 (total) / 1 (free) x LAN-on-Motherboard (LOM)
1 (total) / 1 (free) x M.2 Card
1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile |
| Interfaces |
3 x USB 3.0 (1 front, 2 rear)
1 x USB 2.0 (1 in front)
1 x VGA
1 x management - RJ-45
2 x LAN (Gigabit Ethernet) - RJ-45 |
| Miscellaneous |
| Included Accessories |
Tool-less rail kit, C13-C14 rack power cable (2.8 m) |
| Compliant Standards |
TUV GS, CISPR 22 Class A, BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, CB, ICES-003 Class A, RoHS, IEC 60950-1, EN 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, VCCI Class A, KN24, KN22 Class A, NMB-3 Class A, AS/NZS CISPR 22, GB 4943.1, BSMI CNS 14336-1, NOM-019, EK1-ITB2000, EN 55022 Class A, UL/CSA60950-1, TR CU 020/2011, TR CU 004/2011 |
| Power |
| Device Type |
Power supply - hot-plug |
| Power Redundancy |
Optional |
| Power Redundancy Scheme |
1+1 (with optional power supply) |
| Installed Qty |
1 |
| Max Supported Qty |
2 |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Power Provided |
750 Watt |
| 80 PLUS Certification |
80 PLUS Platinum |
| Operating System / Software |
| OS Provided |
No operating system |
| Sustainability Information |
| ENERGY STAR Certified |
Yes |
| ENERGY STAR Version |
2.1 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years - on-site - response time: next business day |
| Dimensions & Weight |
| Width |
44.5 cm |
| Depth |
72 cm |
| Height |
8.7 cm |
| Weight |
19 kg |
