| Marketing Description |

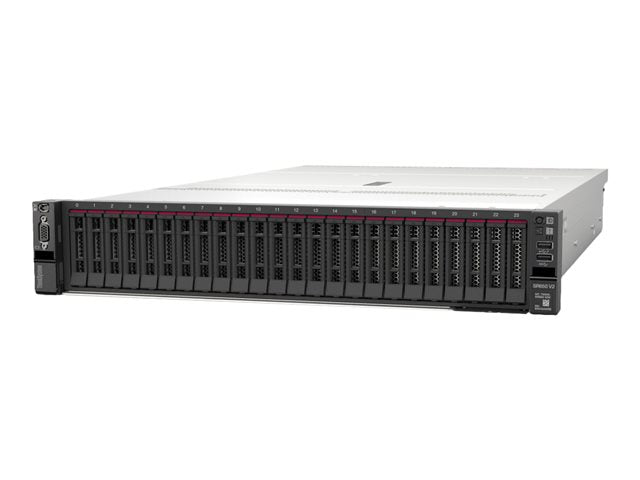

| Top-performing server for data centers needing scalability. Lenovo ThinkSystem SR650 V2 is a 2-socket rack server designed for speed and expansion, with flexible storage, I/O, and great reliability for business-critical workloads. |
| Product Features |
-
Quality data center
Lenovo delivers engineered, tested and certified IT solutions that are high-performance, scalable and cost-effective. By combining advanced x86 server technology and reliability, partnering to deliver quality and providing end-to-end peace of mind with Lenovo ThinkShield, XClarity, and Services, Lenovo solutions enable customers to use real-time data to drive actionable insights. For these solutions, ThinkSystem SR650 V2 makes businesses smarter by providing support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance.
-
Workload-optimized support
ThinkSystem offers significantly lower data latency, higher capacities and greater value. With data stored closer to the processor, applications can access data faster driving swifter response times for real-time analytics, financial transactions, electronic medical records, fraud detection.
|
| General |
| Type |
Server |
| Product Form Factor |
Rack-mountable - 2U |
| Built-in Devices |
5 x fans |
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability |
2-way |
| Hot-Swap Bays Qty |
8 |
| Localisation |
Region: EMEA |
| Processor / Chipset |
| CPU |
Intel Xeon Silver 4310 |
| Clock Speed |
2.1 GHz |
| Max Turbo Speed |
3.3 GHz |
| Number of Cores |
12-core |
| CPU Qty |
1 |
| Max CPU Qty |
2 |
| Chipset Type |
Intel C621A |
| Cache Memory |
| Installed Size |
18 MB |
| Cache Per Processor |
18 MB |
| RAM |
| Installed Size |
32 GB |
| Technology |
DDR4 SDRAM - ECC |
| Effective Memory Speed |
3200 MHz |
| Rated Memory Speed |
3200 MHz |
| Form Factor |
DIMM 288-pin |
| Slots |
32 (Total) / 31 (empty) |
| Features |
Registered, Memory Mirroring, mixing of different types of memory modules is not supported, slots 17 - 32 are available in two-processor configuration only |
| Configuration Features |
1 x 32 GB |
| RAM Supported |
4 TB registered - ECC
6 TB Persistent Memory - ECC |
| Hard Drive |
| Type |
No HDD |
| Storage Controller |
| Type |
1 x RAID - PCIe 4.0 x8 |
| Controller Interface Type |
SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name |
ThinkSystem RAID 940-8i |
| Channel Qty |
8 |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Buffer Size |
4 GB |
| Optical Storage |
| Type |
No optical drive |
| Monitor |
| Monitor Type |
None. |
| Graphics Controller |
| Graphics Processor |
Matrox G200 |
| Video Memory |
16 MB |
| Video Interfaces |
VGA |
| Networking |
| Remote Management Controller |
XClarity Controller (XCC) Enterprise |
| Expansion / Connectivity |
| Bays |
8 (total) / 8 (free) x hot-swap 2.5" |
| Slots |
1 (total) / 1 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 3.0
1 PCIe 4.0 x16
2 PCIe 4.0 x8 |
| Interfaces |
4 x USB 3.1 Gen 1 (1 front, 3 rear)
1 x USB 2.0 (1 in front)
1 x VGA
1 x management
1 x diagnostics
1 x USB 3.1 Gen 1 (1 internal) |
| Miscellaneous |
| Included Accessories |
Rack sliding rails |
| Compliant Standards |
BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, CCC, FCC Part 15 A, GB 17625.1, CECP, VCCI Class A, EN 50581, GB 4943.1, KN35, UL 2819, AS/NZS CISPR 32 Class A, KN32 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, EN 55035, CISPR 35, CELP, HJ 2507-2011, CNS 15663 section 5, TP EAC 037/2016, AS/NZS 62368.1, ANSI/UL 62368-1, ICES-003 issue 7 Class A, GB/T9254, CQC3135 |
| Power |
| Device Type |
Power supply - hot-plug |
| Power Redundancy |
Optional |
| Power Redundancy Scheme |
1+1 (with optional power supply) |
| Installed Qty |
1 |
| Max Supported Qty |
2 |
| Voltage Required |
AC 100-240 V (50/60 Hz) |
| Power Provided |
750 Watt |
| Operating System / Software |
| OS Provided |
No operating system |
| Sustainability Information |
| EPEAT Compliant |
EPEAT Bronze |
| ENERGY STAR Certified |
Yes |
| ENERGY STAR Version |
3.0 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years - on-site - response time: next business day |
| Dimensions & Weight |
| Width |
44.5 cm |
| Depth |
76.4 cm |
| Height |
8.7 cm |
| Weight |
38.8 kg |
