| Marketing Description |

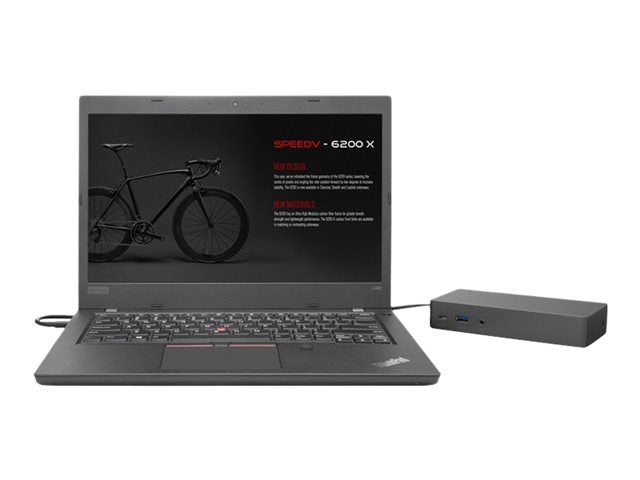

| Powered by innovative Intel Thunderbolt 3 technology, ThinkPad Thunderbolt 3 dock delivers a reliable and versatile docking solution. It's four times faster than the data of any other cable, so you can watch, edit and create large files lightning-fast. Twice the video bandwidth enables it to support two 4K monitors streaming independently in amazing details. At the same time, it can also simultaneously rapidly charge your ThinkPad system via the USB Type-C port. What's more, it provides easier network management for your IT team on managing selected ThinkPad systems. Simply connect your notebook or tablet to the ThinkPad Thunderbolt 3 Dock - for the most productive, space-saving workstation for creative professionals. |
| Product Features |
-
Ultra HD or full HD
Enjoy Ultra HD video experience with dual video output or Full HD - with up to three displays for multitasking with ease.
-
Lightning-fast big data transfer
The front Thunderbolt port offers up to 40 Gbps data transfer speeds - 4 times faster than the average dock for larger files such as video editing or CAD files.
-
Enterprise IT companion
The dock provides easy and secure network manageability such as PXE boot, Wake-On-LAN. It also supports passing ThinkPad Mac through the dock for IT to identify the system.
|
| General |
| Product Type |
Port replicator |
| Width |
16 cm |
| Depth |
8 cm |
| Height |
3.1 cm |
| Weight |
380 g |
| Enclosure Colour |
Iron grey |
| Localisation |
Belgium, Indonesia, Vietnam, Ukraine, Iceland, Austria, Finland, France, Germany, Netherlands, Norway, Portugal, Russia, Spain, Turkey |
| Video |
| Max Resolution Details |
3840 x 2160 - 60 Hz |
| Networking |
| Data Link Protocol |
Gigabit Ethernet |
| Expansion / Connectivity |
| Interfaces |
1 x USB 3.1 Gen 1
1 x USB 3.1 Gen 1 with Always-on charging
2 x USB-C / Thunderbolt 3 with Power Delivery
1 x audio / video - HDMI
1 x audio - headphones/microphone
1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x audio / video - DisplayPort |
| Miscellaneous |
| Cables Included |
1 x Thunderbolt cable |
| Features |
Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support |
| Security Slot Type |
Kensington security slot |
| Compliant Standards |
TUV, VCCI, NOM, SABS, CB, FCC, RoHS, SII, KCC, ICES, cULus, Kvalitet, RCM, CU-EAC, CoC, CE/EMC |
| Power |
| Power Device |
Power adapter |
| Power Provided |
135 Watt |
| System Requirements |
| OS Required |
Windows 10 64-bit Edition |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - 1 year |
| Dimensions & Weight (Shipping) |
| Shipping Width |
20.4 cm |
| Shipping Depth |
17.5 cm |
| Shipping Height |
7.5 cm |
| Shipping Weight |
1.18 kg |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
