| Marketing Description |
| ThinkSmart Core is a compute that is powered by an 11th Gen Intel Core vPro processor with Intel Iris Xe graphics for optimized business productivity and collaboration. ThinkSmart Core is certified and preloaded with Microsoft Teams Rooms to help employees connect, share, and collaborate seamlessly and securely from wherever they may be working. In addition to being bundled with one year of Smart Collaboration Professional Services Deploy and Maintain, ThinkSmart Core also comes with remote manageability through Lenovo's custom-built, preloaded ThinkSmart Manager software. |
| Product Features |
-
Easy to choose
When it comes to room system computes, ThinkSmart Core is the smarter choice with its powerful 11th Gen Intel Core vPro processor and Intel Iris Xe graphics, ports to support multiple audio and visual accessories, and integrated cable management.
-
Easy to manage
IT teams can monitor, manage, and troubleshoot ThinkSmart Core remotely using pre-loaded ThinkSmart Manager software. ThinkSmart Core also comes bundled with one year of Smart Collaboration Professional Services Deploy and Maintain for personalized support during setup and ongoing maintenance.
-
Easy to trust
Built-in security solutions from Lenovo ThinkShield and Microsoft offer two more layers of protection on top of the Intel vPro platform, which provides comprehensive hardware-based security for business.
|
| General |
| Device Type |
Video conferencing kit |
| Kit Content |
Camera, soundbar, touchscreen console, compute system, 2 satellite mics |
| Dimensions & Weight Details |
Main system - Width 22.6 cm Depth 20 cm Height 3.75 cm Weight 1.1 kg
Touch screen - Width 26.55 cm Depth 1.3 cm Height 16.81 cm Weight 753.8 g
Camera - Width 10.5 cm Depth 6.05 cm Height 3.6 cm Weight 220 g
Sound bar - Width 79.8 cm Depth 9.13 cm Height 5.65 cm Weight 3.6 kg
Microphone - Width 10 cm Height 2 cm Weight 220 g |
| Enclosure Colour |
Raven black with red bottom |
| Localisation |
Bulgaria |
| Display |
| Diagonal Size |
10.1" |
| Native Resolution |
1280 x 800 |
| Image Aspect Ratio |
16:10 |
| Image Brightness |
340 cd/m² |
| Monitor Features |
Anti-glare, 10-point multi-touch, anti-fingerprint |
| Video Input |
| Type |
Digital camera (colour) - external |
| Video Modes |
1080p |
| Features |
Digital PTZ function, 68° field of view (vertical), 100° field of view (horizontal), 125° field of view (diagonal) |
| Video Output |
| PC Configuration |
Core i5-1145G7E/8GB RAM/256GB SSD |
| Audio Input |
| Type |
Microphone - desktop / wall mountable |
| Audio Output |
| Type |
Sound bar |
| Sound Output Mode |
Stereo |
| Frequency Response |
250 - 20000 Hz |
| Input Device |
| Type |

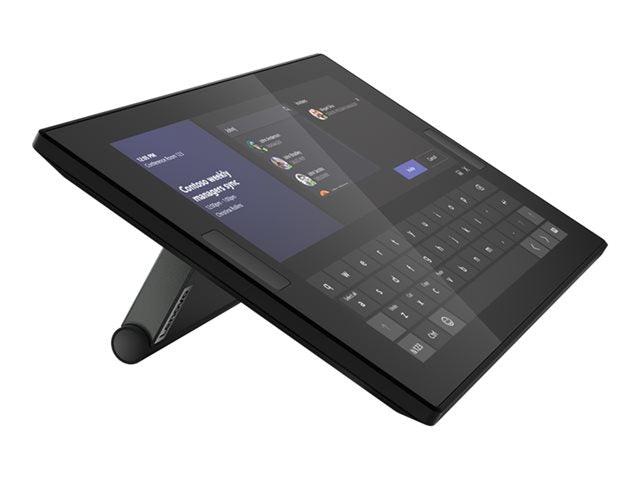

10.1" touchscreen |
| Connectivity Technology |
Wired |
| Networking |
| Type |
Network adapter |
| Connectivity Technology |
Wireless, wired |
| Data Link Protocol |
Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Features |
Dual-stream (2x2), Intel vPro Technology support |
| Compliant Standards |
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax |
| Expansion / Connectivity |
| Interfaces |
2 x audio / video - HDMI output
2 x USB 3.2 Gen 2
1 x USB 3.2 Gen 1
1 x USB-C / Thunderbolt 4
1 x USB-C 3.2 Gen 1
1 x audio / video - HDMI input
1 x network - RJ-45 |
| Miscellaneous |
| Software Certification |
Certified for Microsoft Teams Rooms |
| Manufacturer Selling Program |
Lenovo TopSeller |
| Power |
| Power Device |
Power adapter - external |
| Manufacturer Warranty |
| Service & Support |
Base warranty - 3 years
Extended warranty - 3 years |
| Bundled Services |
3 Years Lenovo Premier Support + First Year Maintenance |
