| Marketing Description |

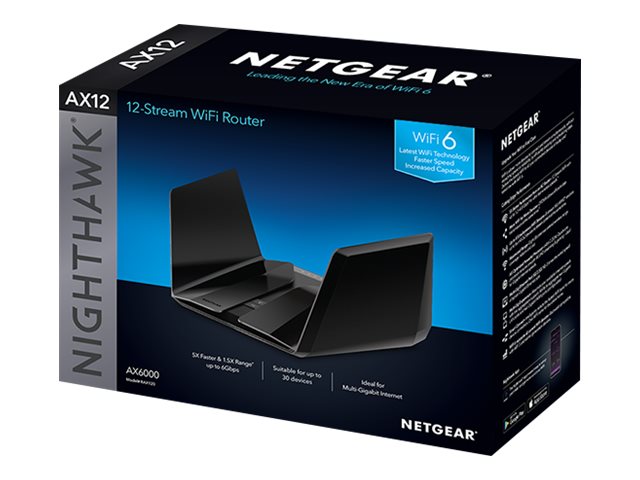

| Nighthawk RAX120 WiFi Router is powered by the industry's latest WiFi 6 (802.11ax) standard with 4 times increased data capacities to handle today and tomorrow's growing home network. Blazing-fast combined WiFi speeds up to 6Gbps and AX optimized 64bit 2.2GHz quad-core processor powers smart home applications, ultra-smooth 4K UHD streaming, online gaming, and more. |
| Product Features |
-
More Wi-Fi for more devices
OFDMA allows efficient data transmission for several devices at the same time.
-
Maximized range
Eight antennas extend wireless range coverage indoors and out.
-
Four Gigabit Ethernet LAN ports
Connect more wired devices for faster file transfer and uninterrupted connections.
-
Port aggregation
Ability to aggregate two Gigabit LAN ports for faster file transfers.
|
| General |
| Device Type |
Wireless router - 5-port switch (integrated) |
| Connectivity Technology |
Wireless, wired |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band |
2.4 GHz / 5 GHz |
| Data Transfer Rate |
6 Gbps |
| Capacity |
Streams: 12 |
| Encryption Algorithm |
WPA3 |
| Features |
VPN support, IPv6 support, parental control, firmware upgradable, DDos attack prevention, PAgP support, ReadySHARE, Beamforming+, Link Aggregation, ReadyCLOUD, LED on/off button, guest access, Circle Smart Parental Controls, 8x8 MU-MIMO technology |
| Compliant Standards |
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax |
| Processor |
2.2 GHz |
| Line Properties |
| Line Coding Format |
1024 QAM, OFDMA |
| Internet of Things (IoT) |
| Intelligent Assistant |
Google Assistant, Alexa |
| Expansion / Connectivity |
| Interfaces |
LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
LAN: 1 x 1G/2.5G/5G Multi-Gig Ethernet - RJ-45
WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
USB 3.0: 2 x 9 pin USB Type A |
| Aerial |
| Aerial |
Internal |
| Antenna Qty |
8 |
| Power |
| Power Device |
External power adapter |
| Miscellaneous |
| Cables Included |
1 x network cable |
| Localisation |
Europe |
| Software / System Requirements |
| OS Provided |
No operating system |
| OS Required |
UNIX, Apple MacOS, Linux, Microsoft Windows 2000/XP/Vista/7/8/10 |
| Dimensions & Weight |
| Width |
31 cm |
| Depth |
7 cm |
| Height |
28.5 cm |
| Weight |
1.364 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 1 year |
