| Marketing Description |

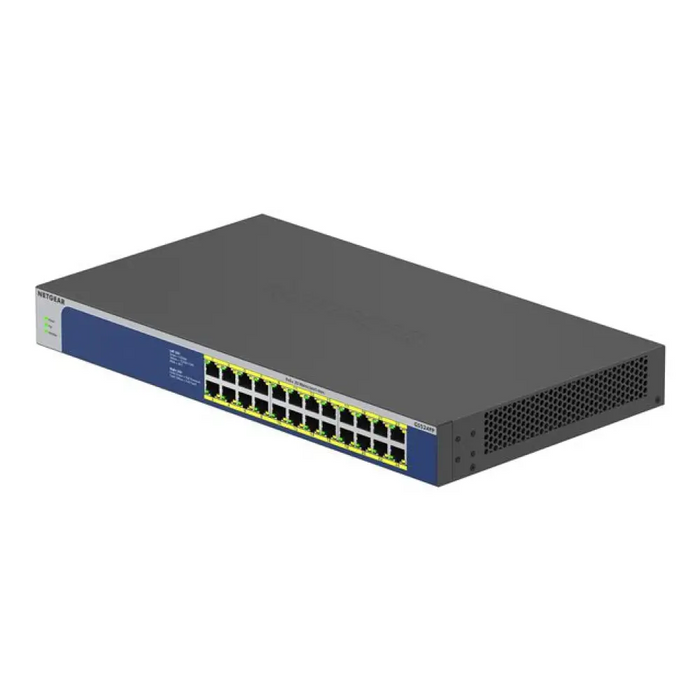

The NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS524PP joins the series and offers 24 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 300W, deploy denser PoE+ devices to a single switch rather than multiple.
The GS524PP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
Ideal for powering and connecting VoIP phones, wireless access points, IP Cameras and IoT devices. Desktop or rackmount for flexible placement. The GS524PP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.
NETGEAR Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected. It can further save energy when a short cable is used. |
| Product Features |
-
Plug and Play
Simple setup with no software or configuration needed.
-
Power-over-Ethernet
24 PoE+ ports with 300W total power budget.
-
Sturdy Metal Case
Small, sturdy desktop metal case and quiet operation.
-
Easy-monitoring
Per port LEDs for port activity and speed.
-
Gigabit Ethernet
24 auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with up to 48Gb non-blocking switching.
-
PoE auto-balance
unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. The switches deliver the power the device needs, at the most granular level.
|
| General |
| Device Type |
Switch - 24 ports - unmanaged |
| Enclosure Type |
Desktop, rack-mountable |
| Subtype |
Gigabit Ethernet |
| Ports |
24 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) |
PoE+ |
| PoE Budget |
300 W |
| Performance |
Non-blocking switching throughput: 48 Gbps
Forwarding rate (1000Mbps): 1448000 packets per second
Latency (64-byte packets): 12 µs |
| MAC Address Table Size |
8K entries |
| Jumbo Frame Support |
9216 bytes |
| Features |
Auto-uplink (auto MDI/MDI-X), auto-negotiation, metal housing, 192KB packet buffer, WRR, CoS, DSCP support, 2 fans |
| Compliant Standards |
IEEE 802.3at, IEEE 802.3az |
| Status Indicators |
Link/activity, power, fan, PoE |
| Expansion / Connectivity |
| Interfaces |
24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W |
| Power |
| Power Device |
Internal power supply |
| Installed Qty |
1 |
| Voltage Required |
AC 100 - 230 V (50/60 Hz) |
| Power Consumption Operational |
359.5 Watt |
| Power Consumption Stand by |
12.9 Watt |
| Miscellaneous |
| Included Accessories |
Rubber feet |
| Rack Mounting Kit |
Included |
| MTBF |
1457,063 hours |
| Compliant Standards |
Plug and Play, AS/NZS 62368.1, BSMI CNS 14336-1, EN 62368-1 Second Edition, EN60950-1 (2nd Edition), IEC 60950-1, IEC 62368-1, UL 62368-1 |
| Localisation |
Asia Pacific, Europe, United Kingdom |
| Dimensions & Weight |
| Width |
39 cm |
| Depth |
22 cm |
| Height |
4.3 cm |
| Weight |
2.89 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - lifetime |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Humidity Range Operating |
10 - 90% (non-condensing) |
| Min Storage Temperature |
-20 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
10 - 95% (non-condensing) |
