| Marketing Description |

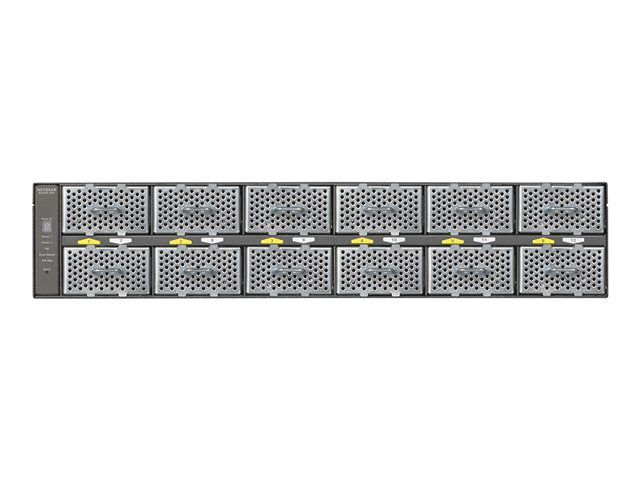

| The NETGEAR M4300-96X is a modular switch supporting up to 96-port 10G, 24-port 40G, or a combination. The M4300 family provides world-class Layer 3 services for server and storage interconnect, mid-enterprise edge and SMB core. SDVoE-Ready, M4300 switches streamline AV-over-IP deployments with Zero Touch multicast. |
| Product Features |
-
Robust security
With support for RADIUS and TACACS+ authentication methods, the NETGEAR M4300-96X ensures secure network access control, providing peace of mind for network administrators.
-
High capacity and performance
Featuring a switching capacity of 1.92 Tbps and a throughput of 2.857 Mpps, this switch is designed to handle high volumes of traffic, ensuring efficient data flow across the network.
-
Advanced networking features
The NETGEAR M4300-96X offers comprehensive Layer 3 switching capabilities, including support for IPv4 and IPv6, RIP, OSPF routes, and VLANs up to 4093, catering to complex network architectures.
-
Flexible connectivity
With a modular design and 12 expansion slots, the switch provides flexibility in connectivity options, allowing for tailored network configurations to meet specific needs.
-
Efficient operation
Front to back airflow design and operational temperature ranges from 0°C to 50°C ensure the switch operates efficiently, maintaining optimal performance even in demanding environments.
|
| General |
| Device Type |
Switch - L3 - Managed - stackable |
| Enclosure Type |
Front to back airflow rack-mountable 1U |
| Performance |
Switching capacity: 1.92 Tbps
Throughput: 2.857 Mpps |
| Capacity |
Virtual interfaces (VLANs): 4093
IPv4 routes (static): 64
IPv6 routes (static): 64
RIP routes: 512
ARP entries: 8000
OSPF routes: 12000
Static ARP entries: 128 |
| MAC Address Table Size |
256K entries |
| Jumbo Frame Support |
9KB |
| Max Units In A Stack |
8 |
| Routing Protocol |
OSPF, RIP, IGMPv2, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, MLDv2 |
| Remote Management Protocol |
SNMP 1, SNMP 2, Telnet, SNMP 3, HTTPS, SSH, CLI |
| Authentication Method |
RADIUS, TACACS+ |
| Features |
Modular design, ARP support, DiffServ support, IPv6 support, STP support, RSTP support, VRRP support, DHCP snooping, ACL support, QoS, MLD snooping, STP Root Guard, IPv4 support, LACP support, DHCP relay, RSPAN, PVRST, dynamic ARP protection, NDP, IP source guard, BPDU, LISP ASM, SSM, 96MB packet buffer |
| Compliant Standards |
IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.1AX |
| Processor |
1: 1.4 GHz |
| RAM |
2 GB |
| Flash Memory |
256 MB |
| Expansion / Connectivity |
| Interfaces |
1 x management (Gigabit LAN) RJ-45
1 x serial (RS-232) RJ-45
1 x console (mini-USB)
1 x USB Type A |
| Expansion Slots |
12 (total) / 12 (free) |
| Power |
| Power Device |
Internal power supply (not installed) |
| Max Supported Qty |
2 |
| Miscellaneous |
| Included Accessories |
12 x I/O module blank slot covers |
| Cables Included |
1 x mini-USB type B to USB type A power cable
1 x console cable |
| Rack Mounting Kit |
Included |
| Compliant Standards |
BSMI, EN 60950, UL 1950, IEC 60950, CB, FCC CFR47 Part 15, LVD, RCM, BSMI CNS 14336-1, EN 61000-3-3:2013, YD/T993-1998, EN 61000-3-2:2014, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012+AC:2013 Class A, ANSI C63.4-2014, ISED, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 55024:2010 Class A, T9254-2008 (Class A), EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Localisation |
Worldwide |
| Dimensions & Weight |
| Width |
53.5 cm |
| Depth |
44 cm |
| Height |
8.8 cm |
| Weight |
11.76 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - lifetime |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Humidity Range Operating |
95% (non-condensing) |
| Min Storage Temperature |
-20 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
95% (non-condensing) |
