| Marketing Description |

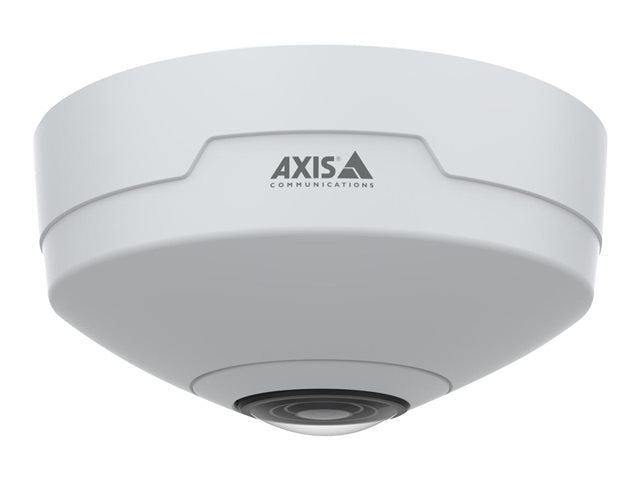

| Offering 180°/360° coverage and no blind spots, this fisheye camera supports advanced analytics based on deep learning on the edge. Its ultra-compact size makes it ideal for wherever you need high-quality indoor surveillance. |
| Product Features |
-
Great video performance
AXIS M4328-P offers a complete overview with outstanding sharpness, great detail, and no blind spots. This 12MP camera delivers 360° or 180° panoramic overviews. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. With its stereoscopic lens and digital PTZ, you can choose what to see in the view areas and at what zoom level in up to four areas simultaneously. Furthermore, built on ARTPEC-8, the latest Axis system-on-chip (SoC), this panoramic camera enables improved image processing and great image quality.
-
Deep learning on the edge
This indoor fisheye camera includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before - on the edge. Additionally, it delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it's possible to detect and classify moving objects in a scene - all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
-
Great look and ease of installation
This discreet, ultra-compact, affordable camera is quick and easy to install. With accessory casings available, it can also be repainted to blend in with any surroundings. It's delivered factory-focused. And, thanks to digital roll functionality, you can remotely adjust the rotation of the camera overview - no need to do it manually on the camera. Furthermore, Axis Zipstream, with support for H.264 and H.265, significantly reduces bandwidth and storage requirements without compromising image quality.
|
| General |
| Device Type |
Network panoramic camera |
| Audio Support |
Yes: two-way audio capability |
| Form Factor |
Fisheye |
| Connectivity Technology |
Wired |
| Width |
10.1 cm |
| Depth |
10.1 cm |
| Height |
5.1 cm |
| Weight |
300 g |
| Localisation |
Argentina, Australia, Brazil, China, European Union, Japan, Korea, United Kingdom |
| Camera |
| Type |
Colour - Day&Night - fixed - indoor |
| Digital Video Format |
H.264B, H.264M, H.264H, H.265, MJPEG |
| Max Digital Video Resolution |
2992 x 2992 |
| Motion Detection |
Yes |
| Exposure Range |
1/2 sec - 1/8100 sec |
| Minimum Illumination |
0.19 lux - colour - F2.2 - 50 IRE
0.04 lux - B&W - F2.2 - 50 IRE |
| Digital Video Capture Resolution |
2992 x 2992, 3840 x 2160, 192 x 72, 3584 x 2688, 384 x 288, 2048 x 1536, 256 x 144, 3200 x 1600, 2880 x 2880, 2560 x 1920 |
| Frame Rate (max) |
30 frames per second |
| RAM |
2 GB |
| Flash Memory |
8 GB |
| Features |
Progressive scanning, IR Corrected lens, infrared-cut filter, deep learning processing unit (DLPU), Zipstream technology, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), video streaming indicator, Forensic WDR, Spatio-temporal noise filtering, 2D Noise Reduction Technology, 3D Noise Reduction Technology, saturation control, contrast control, brightness control, sharpness control, tone mapping, white balance, day/night threshold, exposure mode, exposure zone, compression, image mirror, dynamic text, image overlay, polygon privacy mask, digital PTZ function, guard tour, Corridor mode, network speaker pairing, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Pixel Counter Support, digital roll, level grid, signed firmware, brute force delay protection, digest authentication, password protection, memory card encryption, Axis Edge Vault, Axis device ID, secure keystore, signed video, secure boot, IP address filtering, Lightfinder technology |
| Image Sensor |
| Type |
12 MP RGB CMOS 1/2.3" |
| Lens Construction |
| Type |
Fixed focal |
| Focal Length |
1.2 mm |
| Lens Iris |
F/2.2 fixed iris |
| Focus Adjustment |
Fixed focus |
| Horizontal Field of View (degree) |
182 |
| Vertical Field of View (degree) |
182 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX |
| Network Protocols |
IPv4, IPv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, RTCP, DHCP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf, SIP |
| Expansion / Connectivity |
| Ports |
LAN - RJ-45 |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included Accessories |
Owner authentication key |
| TAA Compliant |
Yes |
| Compliant Standards |
IEEE 802.1x, IEEE 802.1ar, CSA, UL/cUL, BIS, UKCA, KC, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, RCM, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC/EN/UL 62368-1, CAN/CSA-C22.2 No. 62368-1 Third Edition, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267, X.509, IEEE 802.3af, IEEE 802.3at, PVC-free, BFR-free, CFR free, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907 |
| Colour |
White, NCS S 1002-B |
| Power |
| Power Requirements |
PoE Class 3 |
| Software / System Requirements |
| Software Included |
AXIS Object Analytics, AXIS Video Motion Detection |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Relative Humidity (operating) |
10 - 85% RH (non-condensing) |
