| Marketing Description |

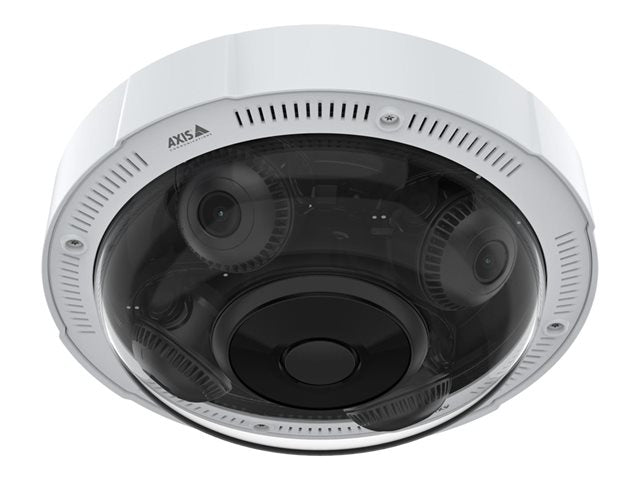

The AXIS P3737-PLE from Axis Communications is designed to cater to the needs of outdoor security. This network panoramic camera is built to endure, with a robust form factor that can operate in extreme temperatures and withstand harsh environmental conditions. Its advanced optical system, featuring a vari-focal lens and infrared capabilities, ensures comprehensive coverage and clear imaging across a wide range of scenarios, day or night.
Equipped with video technologies such as Forensic WDR, Lightfinder, and OptimizedIR, the AXIS P3737-PLE captures high-quality video in various lighting conditions. The camera's high-capacity storage and memory options, including support for microSD cards, provide ample space for video data. Security features include advanced encryption algorithms like TLS 1.2 and TLS 1.3 ensuring secure data transmission. With its combination of durability, advanced imaging, and security features, the AXIS P3737-PLE is a choice for outdoor surveillance that demands reliability and performance. |
| Product Features |
-
Wide environmental adaptability
Designed to operate in extreme temperatures ranging from -30°C to 50°C and withstand humidity levels from 10 - 100% RH, ensuring reliable performance in any weather condition.
-
Advanced optical system
Features a vari-focal lens with a wide angular field of view (134° to 47°) and infrared capabilities up to 15 m, providing clear, detailed images day and night.
-
Robust security standards
Complies with numerous security and environmental standards, including IEC/EN 60529 IP66 and IP67, and IEC/EN 62262 IK09, ensuring the device's integrity in various installations.
-
High-capacity storage and memory
Equipped with 8 GB of flash memory and 4 GB of RAM, supporting microSD, microSDHC, and microSDXC cards for extensive local storage options.
-
Comprehensive video technology
Incorporates Forensic WDR, Lightfinder technology, and OptimizedIR, alongside advanced video compression formats like H.265 and Motion JPEG for efficient and high-quality video capture.
|
| General |
| Device Type |
Network panoramic camera |
| Audio Support |
Yes: two-way audio via optional audio and I/O interface, speaker pairing |
| Form Factor |
Dome |
| Connectivity Technology |
Wired |
| Width |
25.5 cm |
| Depth |
25.5 cm |
| Height |
9.2 cm |
| Weight |
2 kg |
| Localisation |
Argentina, Australia, Brazil, China, Europe, Japan, Korea, United Kingdom, United States |
| Camera |
| Type |
Colour - Day&Night - multi-sensor - outdoor - tamper-resistant / weatherproof |
| Digital Video Format |
H.264B, H.264M, H.264H, H.265, MJPEG, MPEG-4 Part 10, AVC, MPEG-H Part 2, HEVC |
| Max Digital Video Resolution |
2592 x 1944 |
| Motion Detection |
Yes |
| Exposure Range |
1/5 sec - 1/50000 sec |
| Minimum Illumination |
0.19 lux - colour - F1.9 - 50 IRE
0 lux - B&W - F1.9 - 50 IRE
0 lux - IR |
| Infrared LEDs |
Yes |
| Infrared Distance |
15 m |
| Video Capture |
2592 x 1944 @ 20 fps
2560 x 1440 @ 25/30 fps |
| RAM |
4 GB |
| Flash Memory |
8 GB |
| Features |
IR Corrected lens, remote zoom, remote focus, infrared-cut filter, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), low latency mode, video streaming indicator, Forensic WDR, 2D Noise Reduction Technology, 3D Noise Reduction Technology, day/night threshold, tone mapping, barrel distortion correction, text overlay, image overlay, dynamic text, Privacy Mask Function, polygon privacy mask, Lightfinder technology, OptimizedIR, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, scene metadata, signed firmware, brute force delay protection, digest authentication, password protection, Axis Edge Vault, Axis device ID, secure keystore, signed video, secure boot, IP address filtering |
| Image Sensor |
| Type |
4 x 5 MP PS RGB CMOS 4 x 1/2.7" |
| Lens Construction |
| Type |
Vari-focal |
| Optical Zoom |
2.5 x |
| Focal Length |
3.2 mm - 8.1 mm |
| Lens Iris |
F/1.9-3.2 fixed iris |
| Min Focus Distance |
0.5 m |
| Horizontal Field of View (degree) |
37 - 99 |
| Vertical Field of View (degree) |
28 - 70 |
| Diagonal Field of View (degree) |
47 - 134 |
| Panning |
| Range (degree) |
-90 to +90 |
| Tilting |
| Range (degree) |
25 to 95 |
| Interfaces |
| Network Interface |
Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols |
IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf |
| Expansion / Connectivity |
| Ports |
LAN - RJ-45 |
| Supported Memory Cards |
microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm |
TLS 1.2, TLS 1.3 |
| Miscellaneous |
| Included Accessories |
Connector guard, cable gaskets |
| TAA Compliant |
Yes |
| Compliant Standards |
IEEE 802.1x, IEEE 802.1ar, UL, cUL, UKCA, KC, EAC, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 ThirdEdition, IEC/EN/UL 62368-1 Third Edition, IEC/EN 62471, IS 13252, AS/NZS 62368.1:2022, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK09, ISO 21207 method B, MIL-STD-810H, NEMA 250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), VDMA 24364, NIST SP500-267, ETSI EN 303 645, FIPS 140, IEEE 802.3at, PVC-free, BFR-free, CFR free, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907 |
| Colour |
White, NCS S 1002-B |
| Power |
| Power Requirements |
PoE Plus Class 4 |
| Power Device |
13.25 Watt |
| Software / System Requirements |
| Software Included |
AXIS Object Analytics, AXIS Video Motion Detection |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years |
| Environmental Parameters |
| Min Operating Temperature |
-30 °C |
| Max Operating Temperature |
50 °C |
| Relative Humidity (operating) |
10 - 100% RH (condensing) |
