| Marketing Description |

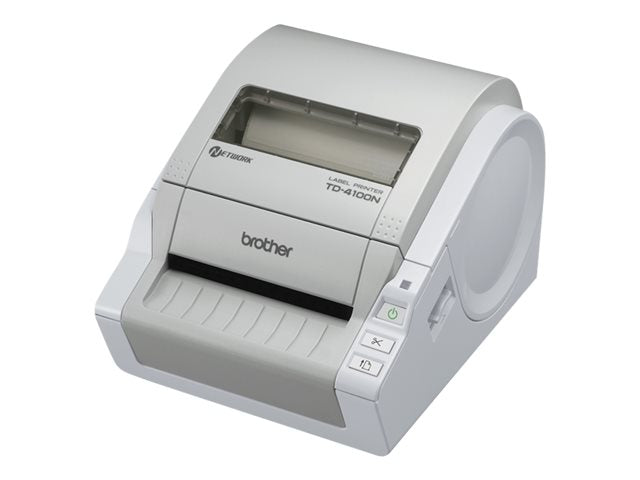

The TD-4100N desktop bar code printer is a true GDI network printer, fully compatible with Windows OS computers. The TD-4100N will print on most medium/high sensitivity direct thermal media in high quality print resolution, and comes ready with everything you need to start printing, powerful but easy to use design software application.
Unlike competitive models that require printing using their resident fonts and bar codes, the TD-4100N is host-based and can print text, bar codes and graphics from software. The built-in automatic cutter reliably trims receipts and continuous labels to your desirable length, or configures it to cut after printing die cut labels - either one at a time or after printing a strip of multiple labels.
With this combination of high performance, value add and reliability, why not experience this for yourself and see why the TD-4100N is the best value desktop bar code printer for your Windows-based application. |
| Product Features |
-
Benefits of network printing key product features
The TD-4100N, with its built-in Ethernet interface, allows multiple users to connect to and use one shared printer. This not only saves space, but allows users to print labels, receipts, or tags from different locations. Using a single shared printer also means that companies incur a lower initial purchase cost to serve multiple users. The included network management tools make it easy to set up, configure, and manage Brother TD desktop barcode printers.
-
An easy integration solution for software developers
Brother provides an easy-to-use software development kit for integrating the TD-4100N desktop barcode and label printers into most Windows applications. Using the Brother API, applications can pass text, numbers, graphics, and bar code data to document templates, and print labels, receipts, and tags directly to the printers. This simplifies printer integration and frees application developers from having to use the Windows API.
|
| General |
| Printer Type |
Label printer - direct thermal - monochrome |
| Enclosure Colour |
Grey, white |
| Printer |
| Print Speed |
Up to 110 mm/sec |
| Connectivity Technology |
Wired |
| Interface |
USB, LAN, serial |
| Max Resolution (B&W) |
300 dpi |
| Fonts |
Brussels, Helsinki, San Diego, Letter Gothic |
| Styles & Effects |
Bold, normal, vertical, outline, shadow, italic, Mirror, underline, shadow light |
| Auto Cutter |
Yes |
| Repeating Printing |
9999 copies |
| Barcodes |
Code 39, UCC/EAN-128, ISBN, GS1 DataBar, QR code, MaxiCode, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Codabar, Code 128, Postnet, PDF417, Data Matrix |
| Media Handling |
| Compatible Tapes |
RD tape |
| Max Media Size |
Roll (10.2cm) |
| Max Media Size (Custom) |
102 mm |
| Media Sizes |
Roll (10.2cm) |
| Max Printing Width |
98.6 mm |
| Max Printing Length |
3000 mm |
| Networking |
| Networking |
Print server |
| Data Link Protocol |
Ethernet, Fast Ethernet |
| Expansion / Connectivity |
| Connections |
1 x RS-232 - 9 pin D-Sub (DB-9)
1 x USB - 4 pin USB Type B
1 x LAN - RJ-45 |
| Miscellaneous |
| Cables Included |
1 x USB cable |
| Compatible with Windows 7 |
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Power |
| Frequency Required |
50/60 Hz |
| Software / System Requirements |
| Software Included |
Brother P-touch Editor 5 |
| OS Required |
Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits) |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 2 years |
| Environmental Parameters |
| Min Operating Temperature |
10 °C |
| Max Operating Temperature |
35 °C |
| Humidity Range Operating |
20 - 80% (non-condensing) |
| Dimensions & Weight |
| Width |
17.3 cm |
| Depth |
22.9 cm |
| Height |
15.8 cm |
| Weight |
1.8 kg |
